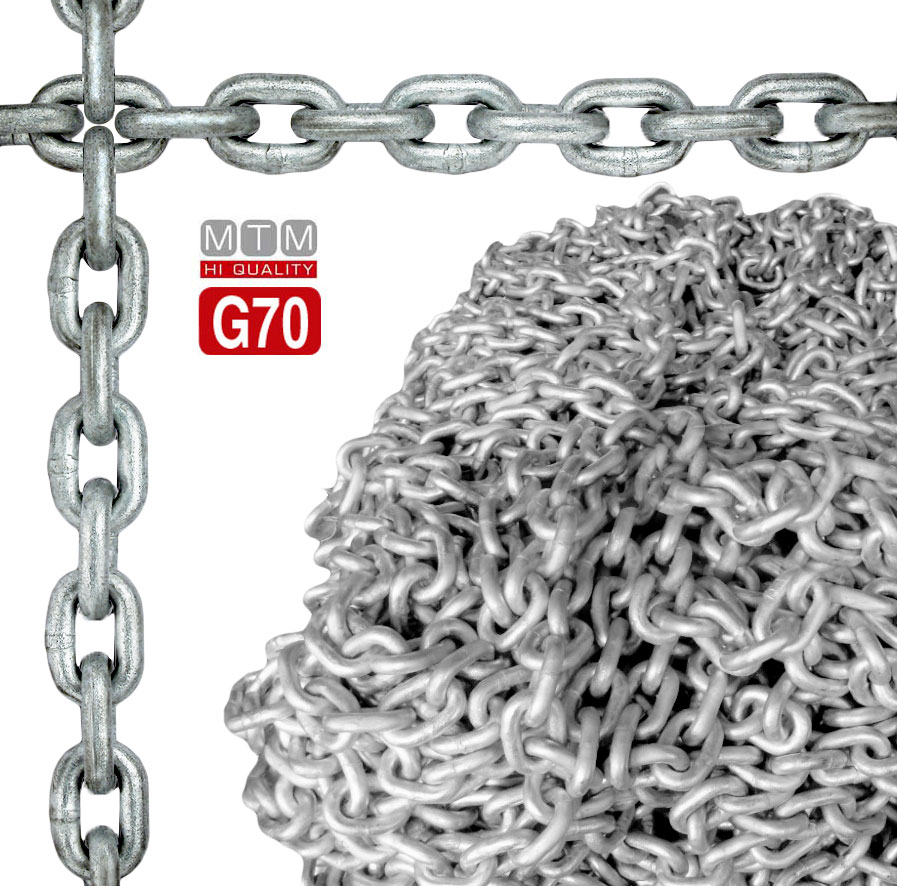

High resistance G70 Galvanized Steel Calibrated Chain Ø10mm pitch 28x14mm 75mt
High resistance G70 superior quality hot-dip Galvanized Steel chain for windlasses. Made to withstand stress of 70 kg per 2mm flow rates and loads comparable to lifting chains. Minimum breaking load ensured thanks to the strictly controlled production.
• Tensile and tear strength with loads up to 100% higher than a traditional chain. High rated load capacity, greater mechanical steel properties.
• Reduces the volume of space required, avoiding twisting of the chain.
• A lower weight on board, giving the boat better performance and safety, with lower consumption.
• Guarantees a reduced, lighter and lower cost windlass.

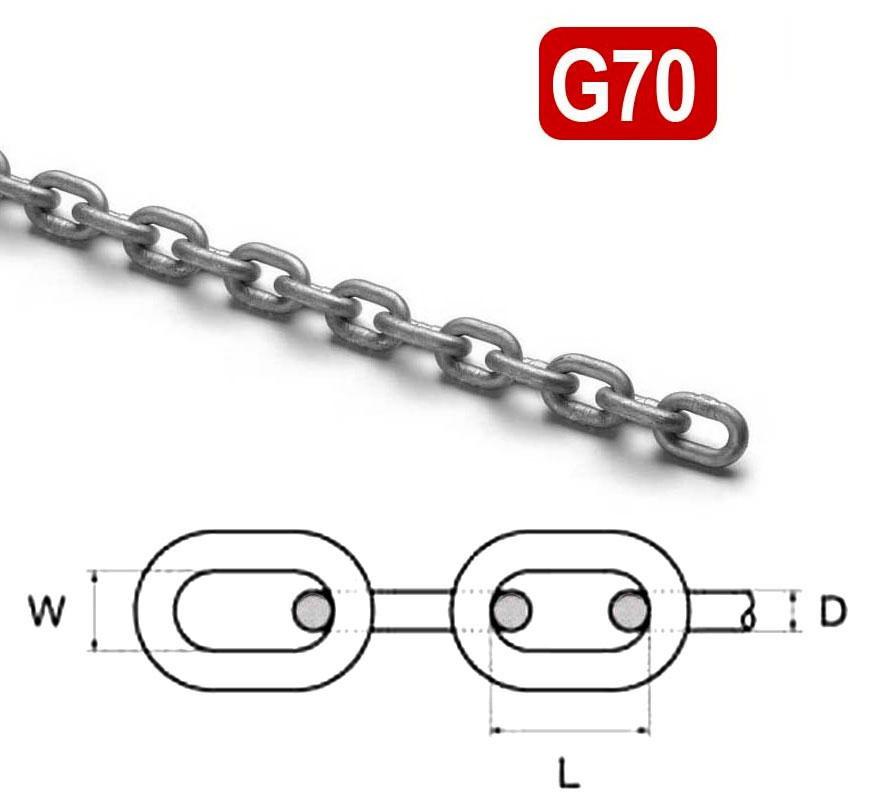

Chain link diameter (D): 10 mm.
Chain link pitch (L): 28 mm.
Chain link width (W): 14 mm.
Declared breaking load: 9500 kg.
Workload: 2200 kg.
Weight: 2.4 kg/m.
