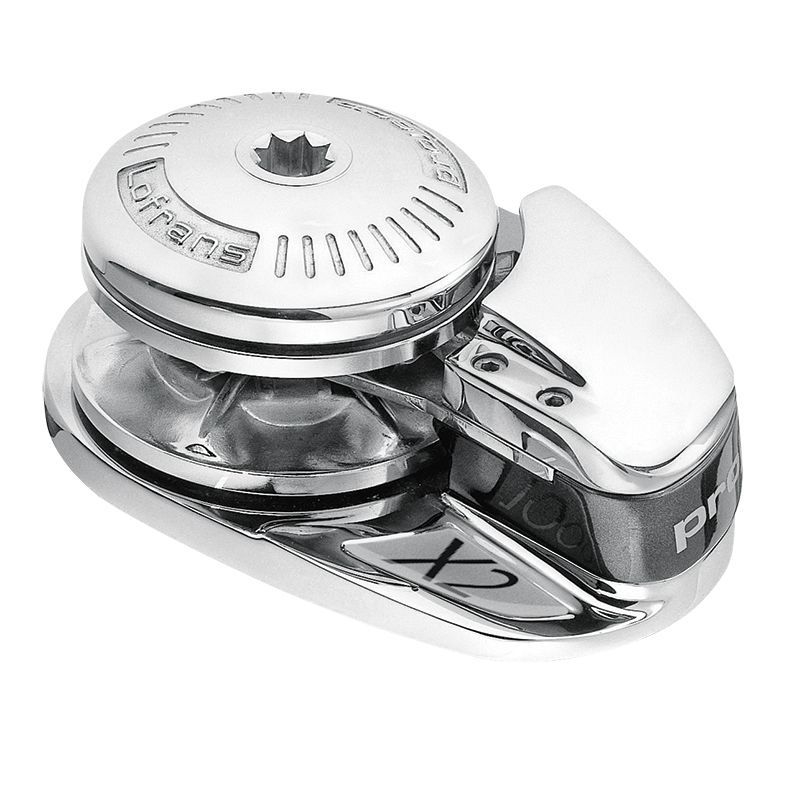

X2 - Vertical Windlass
Main Features
- Luxury chrome broze base and drum
- Special watertight stainless steel ball bearing in the base
- Low profile
- Indepent Gypsy and drum operation
- Rope and chain combinaton Gypsy
- Manual chain release
- Manual override available for chromed bronze models only
- Rope chain management by the spring loaded arm
- Chain counter magnet pre-installed as standard
- IP67 rated heavy duty electric motor
- Anodised marine aluminium gearbox
- Control Box included in package

Box includes:
Windlass assembly filled with oil
Dual direction solenoid pack
Handle or lever
CD instruction manual


The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.

The standard features that you can meet in every X series windlass are:
- Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
- The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
- The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
- There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
- Manual override so that the chain or rope can be recovered manually in case of electric function failure.


Specifications:
Construction: Aluminium
Gipsy for chain: 8 mm, ISO 4565 DIN 766
Gipsy for rope: 14 mm, 3-strand
Line speed  at W.L. 20 m/min
Max line speed: 40 m/min
Maximum pull: 1000 kg
Motor size: 1000W
Net weight: 19kg
Power supply: 12V
Type: Low profile
Working load: 135A (165kg)

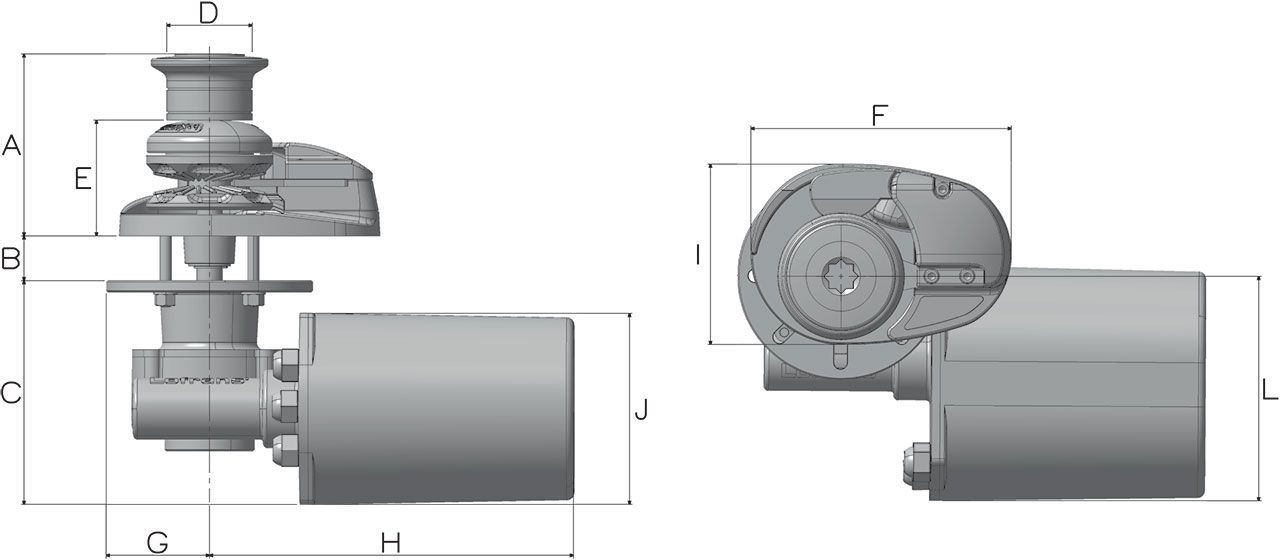

Size:
A= 153
B= 25-40
C= 155
D= Ø76
E= 95
F= 232
G= 73
H= 260
I= 162
J= 134
L= 165
