The product will be shipped in 10 business days.

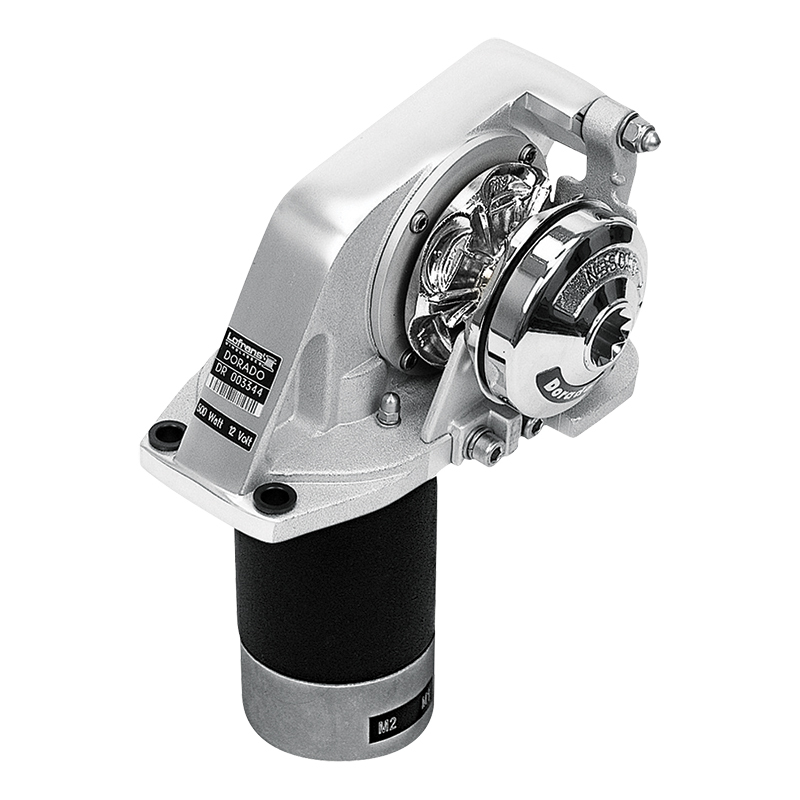

DORADO - Horizontal Windlass

Main Features
- Body in marine type anodised aluminium
- Manual chain release
- Rope tensioning device
- Heavy duty rated IP66 electric motor
- Optional automatic free fall
- Control Box included in package

Box includes:
Windlass assembly filled with oil
Dual direction solenoid pack
Handle or lever
CD instruction manual

Specifications:
Gypsy for chain: 6 mm, ISO 4565
Gypsy for rope: 10-12 mm, 3-strand
Line speed at W.L. 18 m/min
Max line speed: 24 m/min
Maximum pull force: 600 kg
Model type: port
Motor size: 500W
Net weight: 10kg
Power supply: 12V
Type: Low profile
Working load: 65A (70kg)

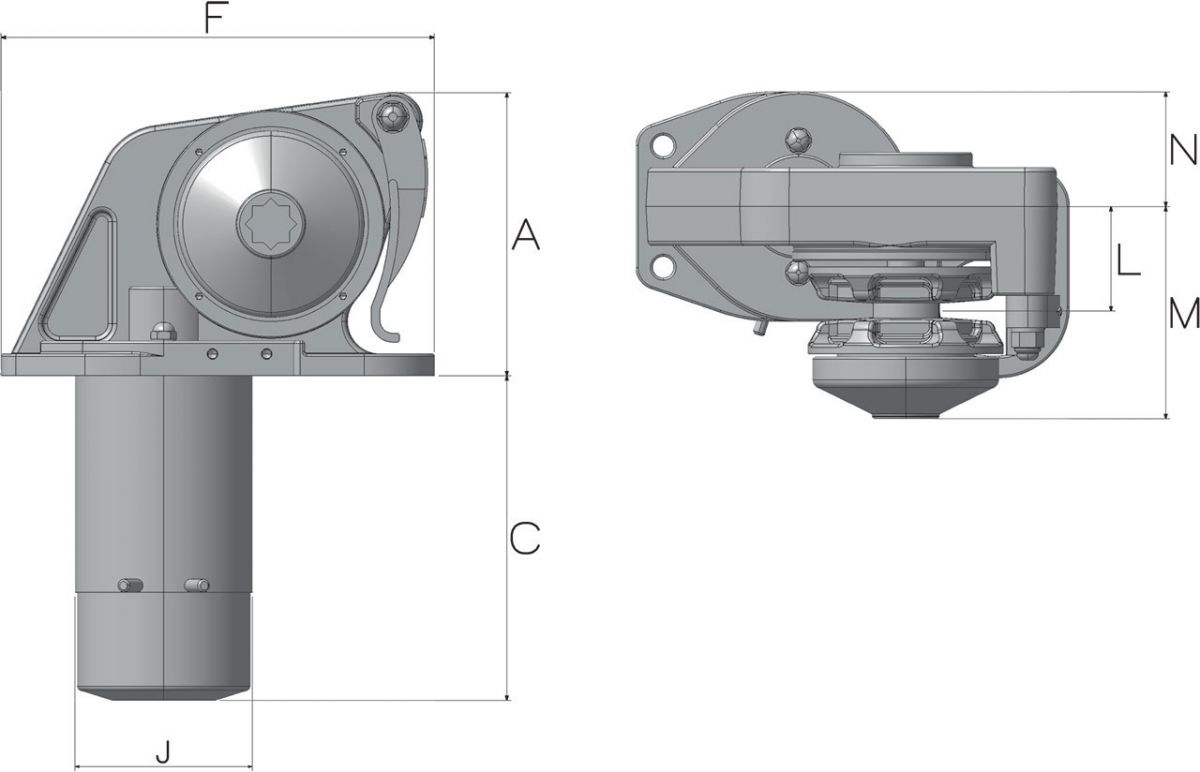

Size:
A= 130
C= 150
F= 200
J= Ø82
L= 48
M= 98
N= 53
