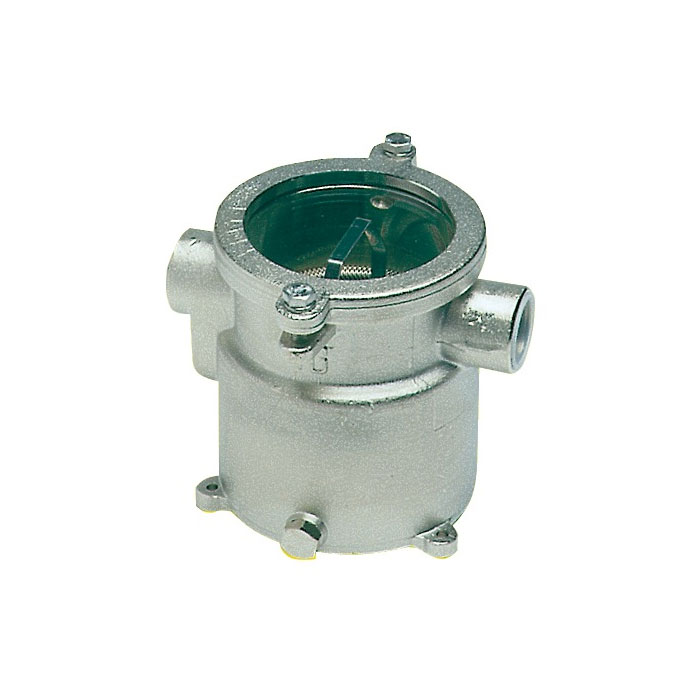

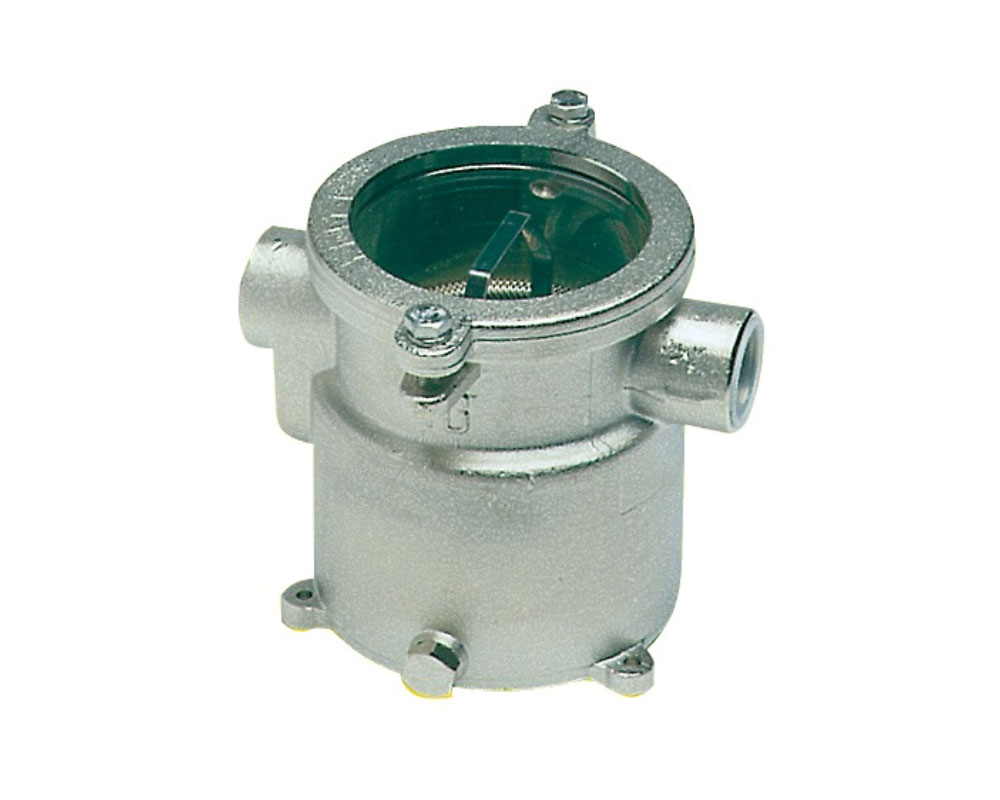

Nickel plated bronze Water cooling filter and polycarbonate disc. To be fitted onto the motor water intake. Easy to inspect. Made in compliance with RINA standards, 11/447/88 DIP certification.

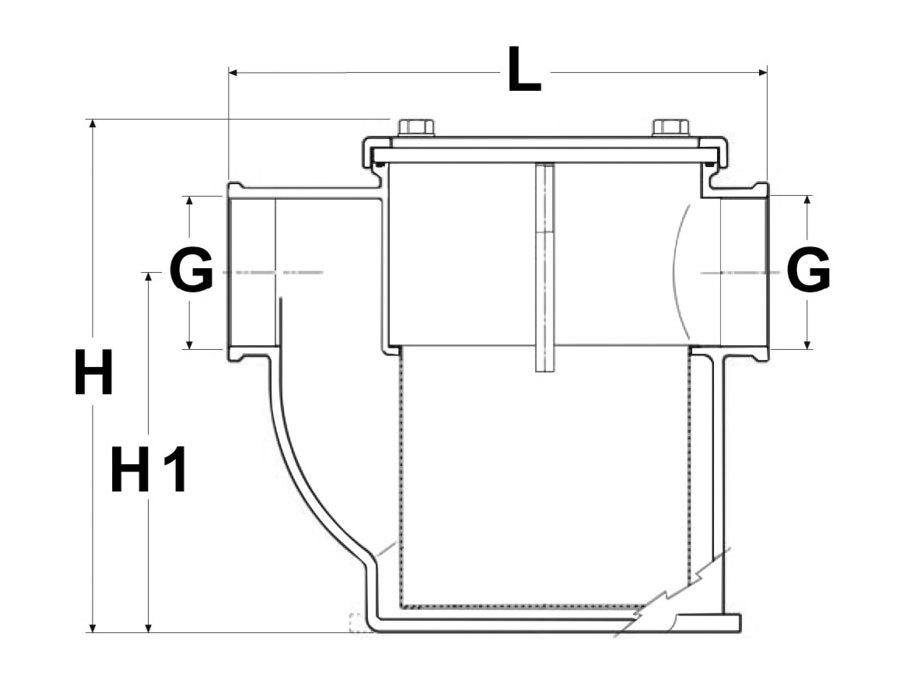

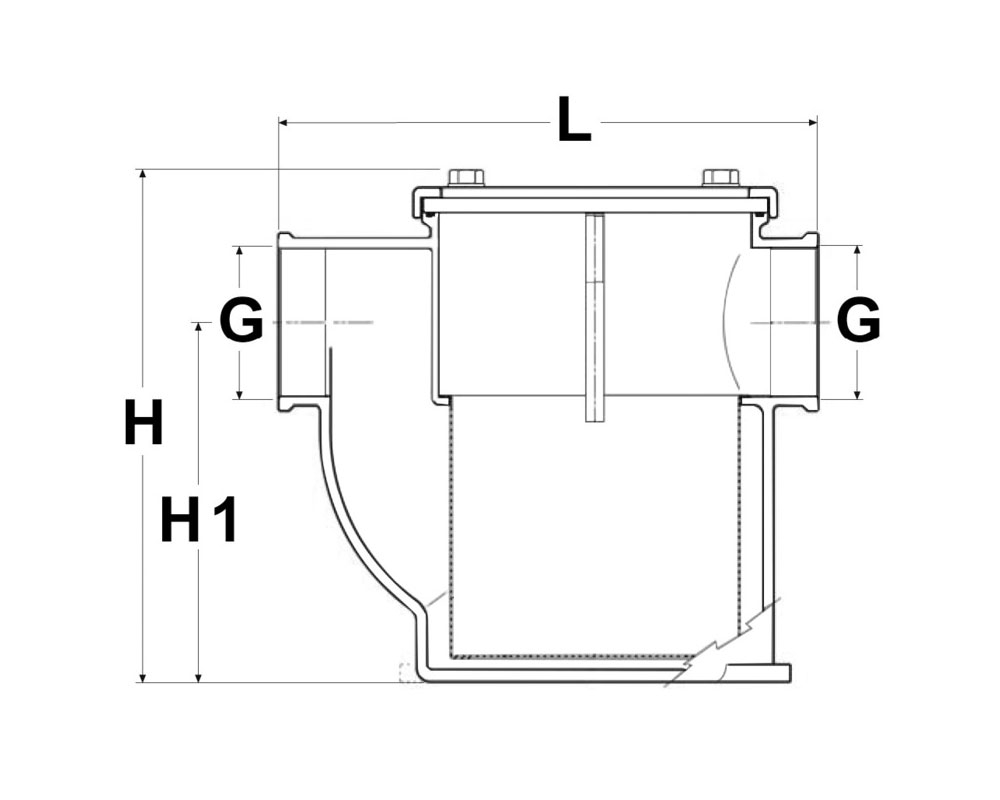

Dimensions: Ø opening (G) mm 1/2"; (L) 122 mm, (H) 117 mm, (H1) 82 mm.
Height 140 mm. Ø110 mm.
Flow l/h - 0,1 bar: 2400. Flow l/h - 1 bar: 7500.
