Description
Item available within 20 days from order.

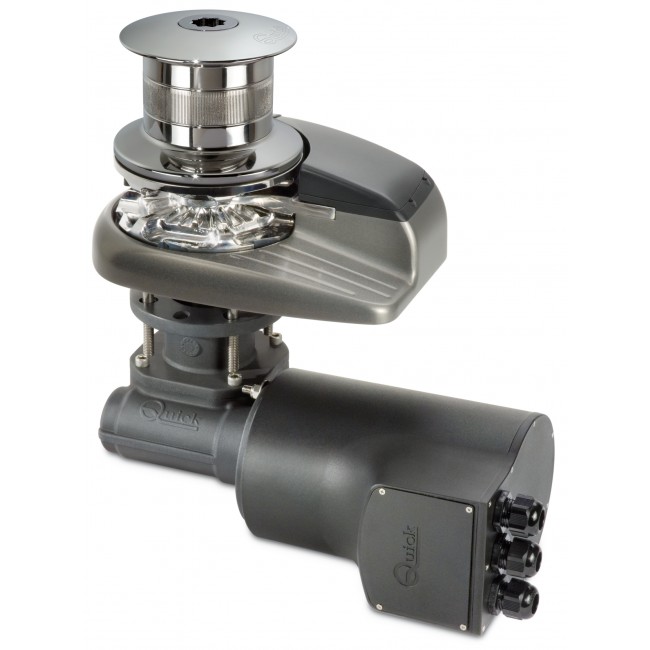

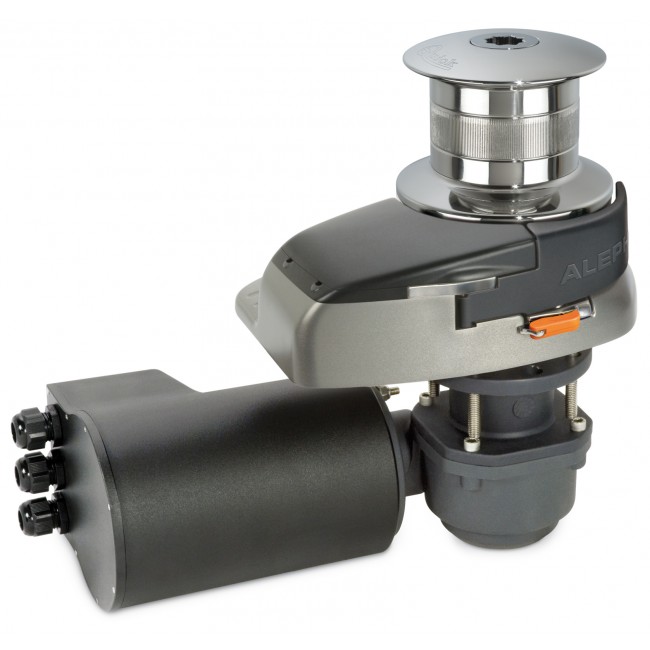

Quick ALEPH AL3 1024D 1000W 24V Vertical Aluminium Windlass with Drum

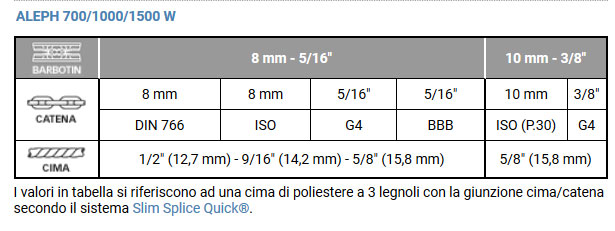

Vertical Aluminium Windlass with Ø130 mm drum. Gypsy for 8 or 10 mm DIN 766 chain. Base in hard anodised aluminum oxide. Rope and chain on a single gypsy. Integrated sensor and magnet for chain counter. Manual Free-Fall system. Emergency manual lift system. Supplied with pressure lever. Inspection lid. IP67 watertight motor. Anodized aluminium gearbox.
Technical data
Model: ALEPH AL3 1024D
Motor power: 1000 W
Motor supply voltage: 24 V
Maximum pull: 1000 Kg
Maximum working load: 450 Kg
Working load: 150 Kg
Current absorbtion @ working load (1): 80 A
Maximum chain speed (2): 40,9 m/min
Maximum chain speed @ working load (2): 21,4 m/min
Weight: 18,9 Kg
Drum: Ø 130 mm
Boat length: 7-10m
Three-strand (3) polyester cable 1/2" 12,7 mm with cable/chain splice according to Quick® system.
Deck thickness 25/50 mm.
1) After an initial period of use.
2) Measurements taken with a gypsy for an 8 mm chain.
NB: When placing your order please specify in the notes field whether you require a 8 or 10 mm gypsy.
