Quick ALEPH AL3 1512D Series Windlass. Vertical Aluminium Windlass. 1500W 12V. With Drum Ø 130mm. Gypsy for 8mm or 10mm DIN 766 chain.
Price:
€2,146.59
Listing:
€2,862.12
You Save:
€715.53 (25%)

Description

NB: When placing your order please specify in the notes field whether you require an 8 or 10mm gypsy.

Quick ALEPH AL3 1512D Series Windlass. Vertical Aluminium Windlass. 1500W 12V. With Drum Ø 130mm.  Gypsy for 8mm or 10mm DIN 766 chain.

Features

VERTICAL WINDLASSES
Base in hard anodised aluminum oxide
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Emergency manual lift system
Supplied with pressure lever - Inspection lid
IP67 watertight motor
Anodized aluminium gearbox

Technical data
Motor power: 1500 W
Motor supply voltage: 12 V
Maximum pull: 1100 Kg
Maximum working load: 470 Kg
Working load: 160 Kg
Current absorbtion @ working load (1): 155 A
Maximum chain speed (2): 29,2 m/min
Maximum chain speed @ working load (2): 16,3 m/min
Weight: 22 Kg
Boat length: 7-10m

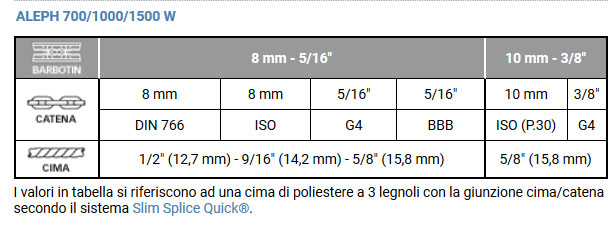

Gypsy for 8 or 10mm calibrated chain din 766
Three-strand (3) polyester cable 1/2" 12,7mm with cable/chain splice according to Quick® system.
Deck thickness: 25÷50 mm (31/32"÷1" 31/32)
With Drum Ø 130mm

1) After an initial period of use
2) Measurements taken with a gypsy for an 8 mm chain
