Quick ALEPH AL3 1524D Series Windlass. Vertical Aluminium Windlass. 1500W 24V. With Drum Ø 130mm. Gypsy for 8mm or 10mm DIN 766 chain.
Price:
€1,601.25
Listing:
€2,135.00
You Save:
€533.75 (25%)

Description

NB: When placing your order please specify in the notes field whether you require an 8 or 10mm gypsy.

Quick ALEPH AL3 1524D Series Windlass. Vertical Aluminium Windlass. 1500W 24V. With Drum Ø 130mm. Gypsy for 8mm or 10mm DIN 766 chain.

Features

VERTICAL WINDLASSES
Base in hard anodised aluminum oxide
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Emergency manual lift system
Supplied with pressure lever - Inspection lid
IP67 watertight motor
Anodized aluminium gearbox

Technical data
Motor power: 1500 W
Motor supply voltage: 24 V
Maximum pull: 1100 Kg
Maximum working load: 540 Kg
Working load: 180 Kg
Current absorbtion @ working load (1): 85 A
Maximum chain speed (2): 29,7 m/min
Maximum chain speed @ working load (2): 19,0 m/min
Weight: 22,2 Kg
Boat length: 7-10m

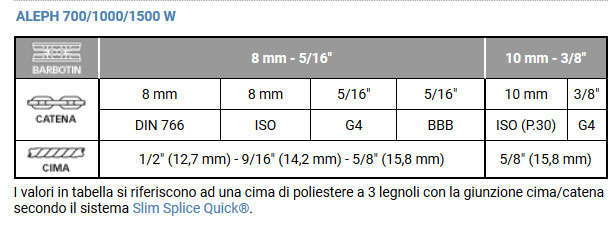

Gypsy for 8 or 10mm calibrated chain din 766
Three-strand (3) polyester cable 1/2" 12,7mm with cable/chain splice according to Quick® system.
Deck thickness 25/50mm
With Drum Ø 130mm

1) After an initial period of use
2) Measurements taken with a gypsy for an 8 mm chain
