Quick RIDER R3 1424D 1400W 24V vertical windlass in anodised aluminium with a remote control box for boats from 12 to 15 metres (39 - 49 ft). With Ø130 mm Drum.
Price:
€1,487.79
Listing:
€1,983.72
You Save:
€495.93 (25%)

Description

Quick RIDER R3 1424D 1400W 24V Vertical Aluminium Windlass with Ø130 mm Drum

NB: When placing your order please specify in the notes field whether you require an 8 or 10mm gypsy.

Quick RIDER R3 1424D 1400W 24V vertical windlass in anodised aluminium with a remote control box for boats from 12 to 15 metres (39 - 49 ft).

Product sheet
• Vertical windlasses.
• Anodised aluminium base.
• With drum.
• Integrated sensor and magnet for chain counter.
• Manual Free-Fall system.
• Motor watertight to IP67.
• Anodised aluminium gearbox.

Technical data:
Model: RIDER R3 1424D with Ø130 mm (5"1/8) Drum;
Motor power: 1400W;
Motor supply voltage: 24V;
Maximum pull: 1100 Kg;
Maximum working load: 540 Kg;
Working load: 180 Kg;
Current absorption @ working load (1): 85 A;
Maximum chain speed (2): 29,7 m/min;
Maximum chain speed @ working load (2): 19 m/min;
Weight: 21,4 Kg;

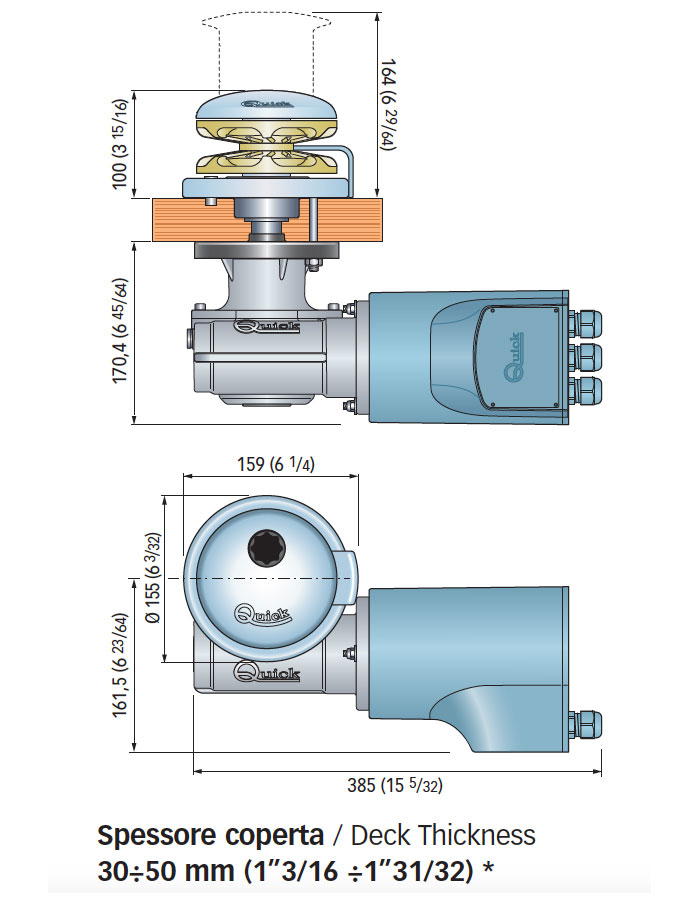

Deck thickness: 30÷50 mm (1" 3/16÷1" 31/32).

1) After an initial period of use.

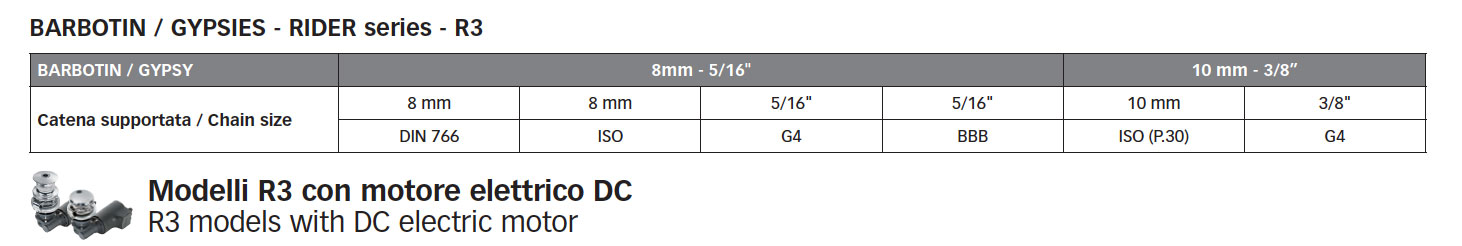

2) Measurements taken with a gypsy for a for an 8 mm chain (8 mm 5/16": 8 mm DIN 766, 8 mm ISO, 5/16" G4, 5/16" BBB; 10 mm 3/8": 10 mm ISO (P.30), 3/8" G4.
