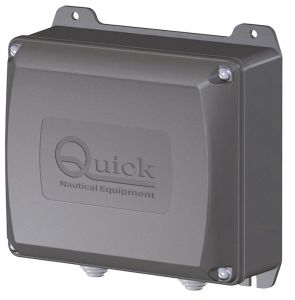

The RRC radio control receiver is a device which combined with an RRC radio transmitter is suitable for controlling the operation of devices or accessories installed on recreational crafts. The RRC radio system is a generic radio control whose failed operation must not cause damage to people, animals or property. It device to operate windlass, winches, bow and stern thruster etc.
Available only for the American market.
The advantages offered by the RRC radio receiver are:
• Full supply range (from 10.5 to 31 Vdc).
• Microcontroller-operated functions.
• FSK modulation and carrier frequency 913 Mhz.
• Operating temperatures from -15°C to +70°C.
• Indication of the system operating status, errors and problems by means of LED and seven-segment display.
• Protection against polarity inversion.
• Protection against the discharge of the battery.
• 50 transmitters can be stored.
• Translation mode to activate more receivers, installed in different spots, by means of one transmitter.
• Programmable digital filter.
• Two functions can be activated at the same time.
• Possible connection to an external antenna.
Technical data:
- Model: R904+;
- Carrier frequency: 913 MHz;
- Modulation: FSK;
- Number of transmitters which can be stored: 50;
- Number of relays: 4;
- Current in relay contact: 15 A;
- Power supply voltage: 10,5 ÷ 31 Vdc;
- Power absorption in stand-by mode: 25 mA;
- Absorption with 2 relays activated: 120 mA;
- Working temperature: -15°C + 70°C;
- Protection rating: IP55;
- Dimensions: 143x141.7x61.4 mm;
- Weight: 270 g;
- Complies with: FCC-Part15-Subparagraph C.
