10A 12-24V PWM Solar Charge Controller Dual USB Camper Van Boat #N52830550075

10A 12-24V PWM Solar Charge Controller Dual USB Camper Van Boat #N52830550075
  • 10A 12-24V PWM Solar Charge Controller Dual USB Camper Van Boat #N52830550075
  • 10A 12-24V PWM Solar Charge Controller Dual USB Camper Van Boat #N52830550075

10A 12-24V PWM Solar Charge Controller Dual USB Camper Van Boat #N52830550075

Charge controller 12/24V 10A with 3 charge stages allowed to manage 2 batteries at the same time. Suitable to charge batteries GEL, AGM, acid through traditional photovoltaic panels 36 and 72 cells. Simple and reliable!
Price:
€49.90
Listing:
You Save:
(%)

Description

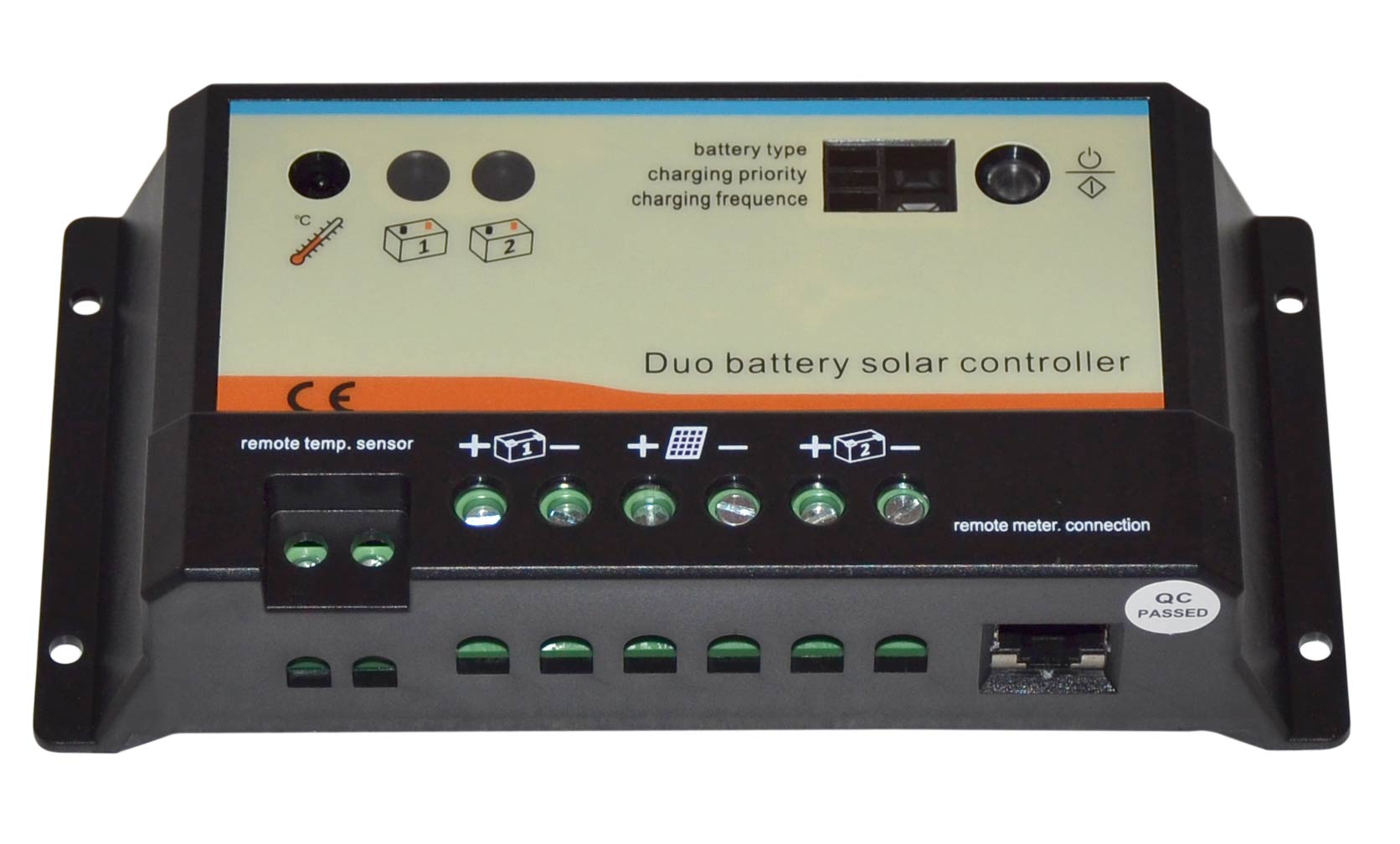

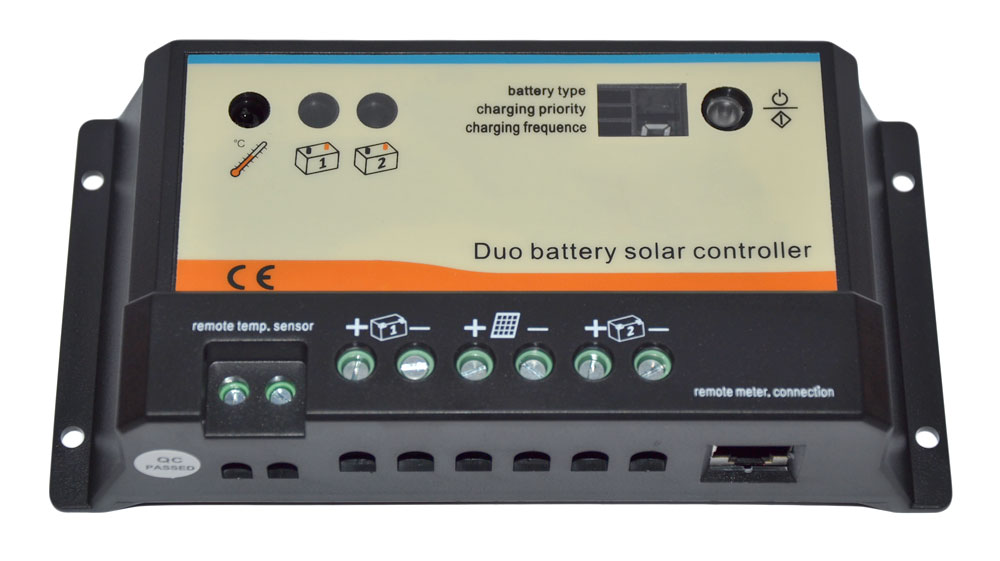

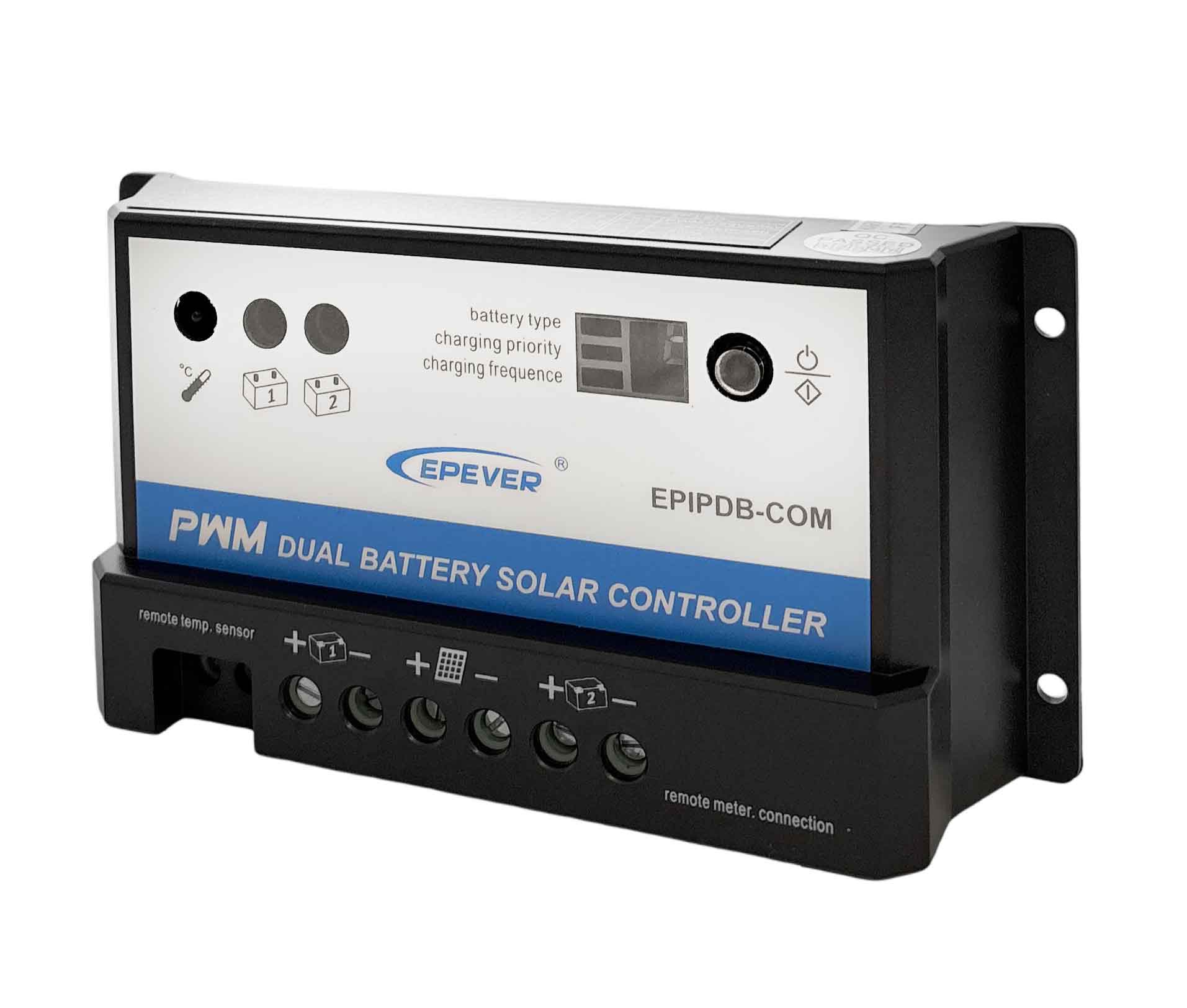

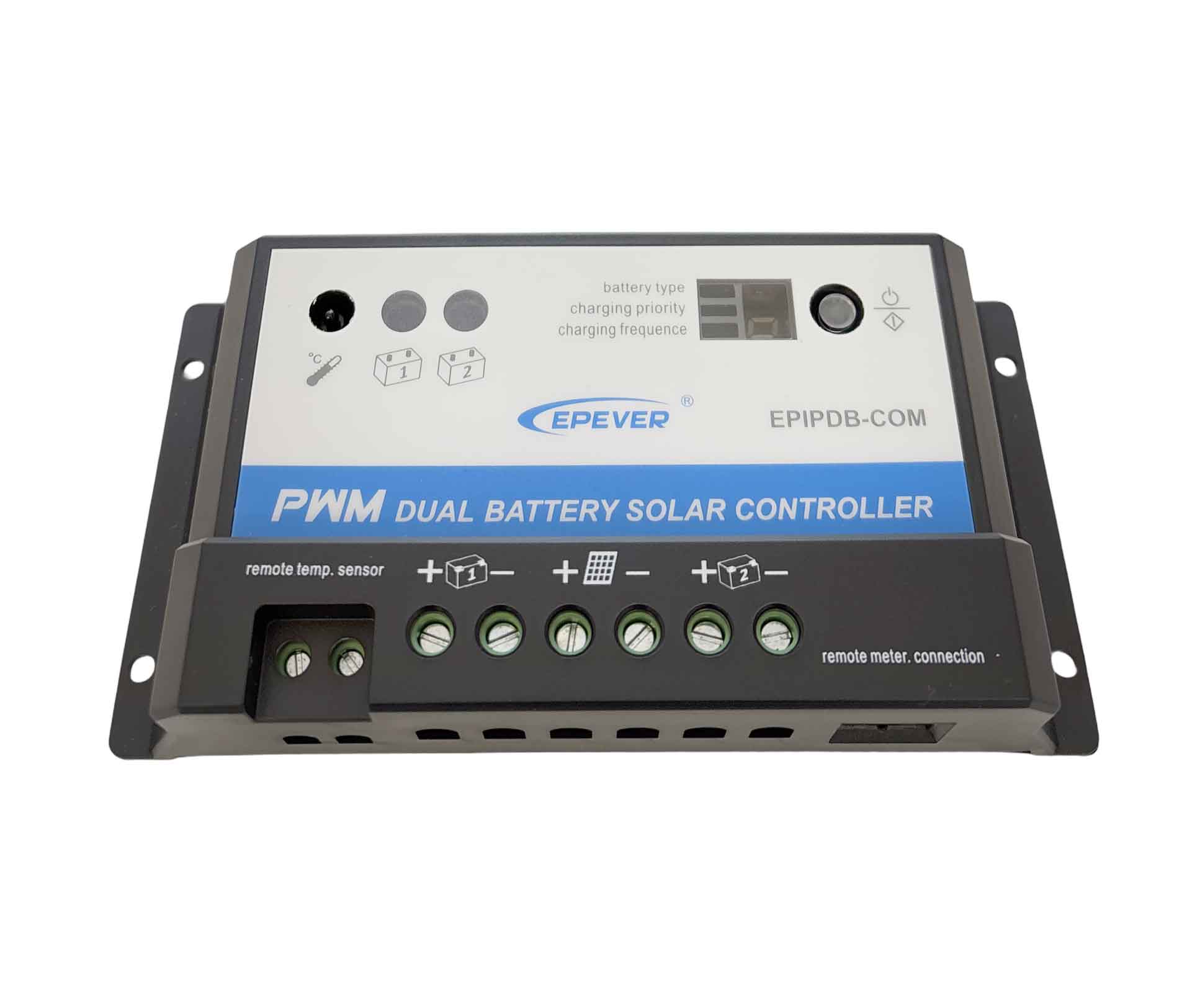

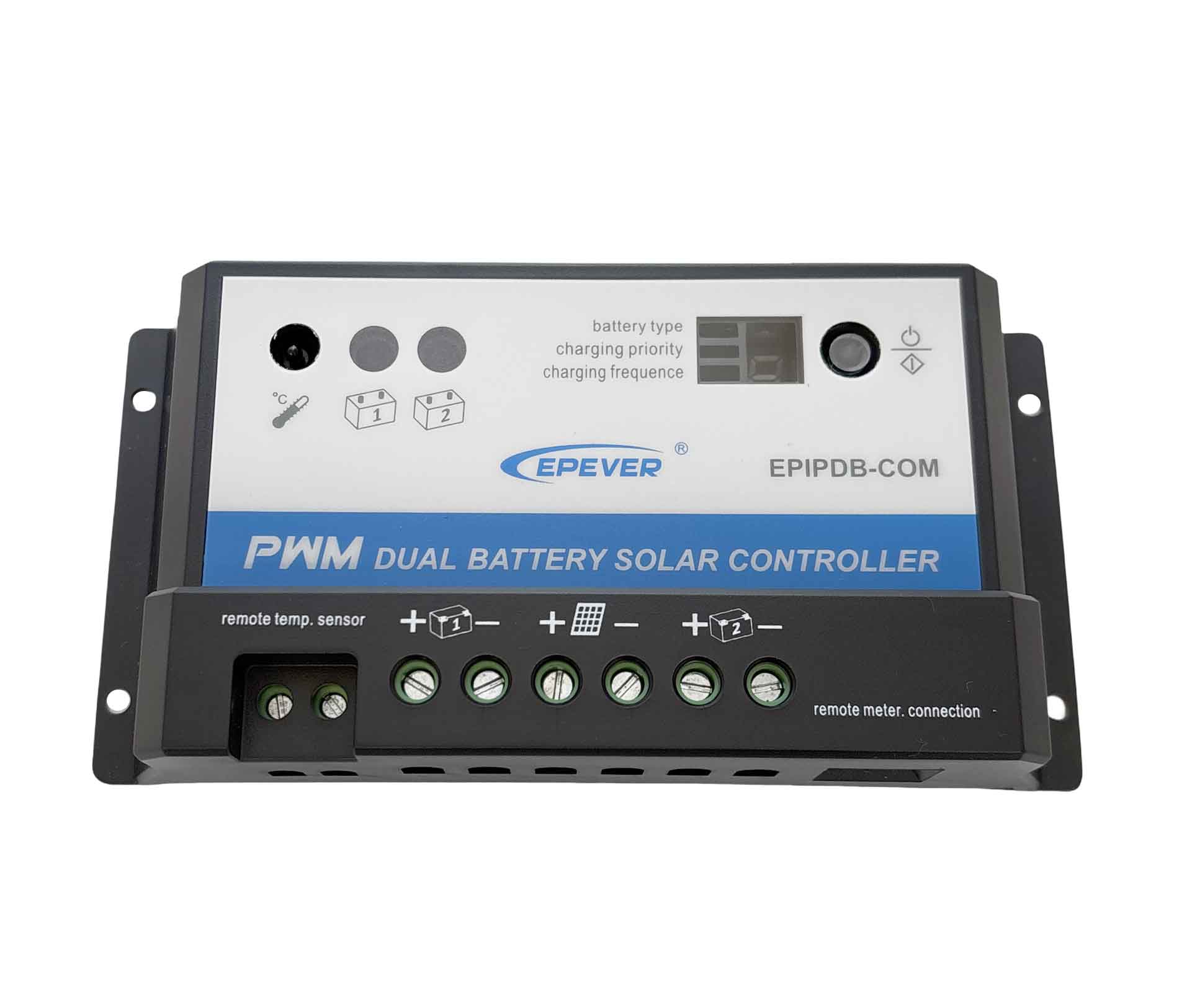

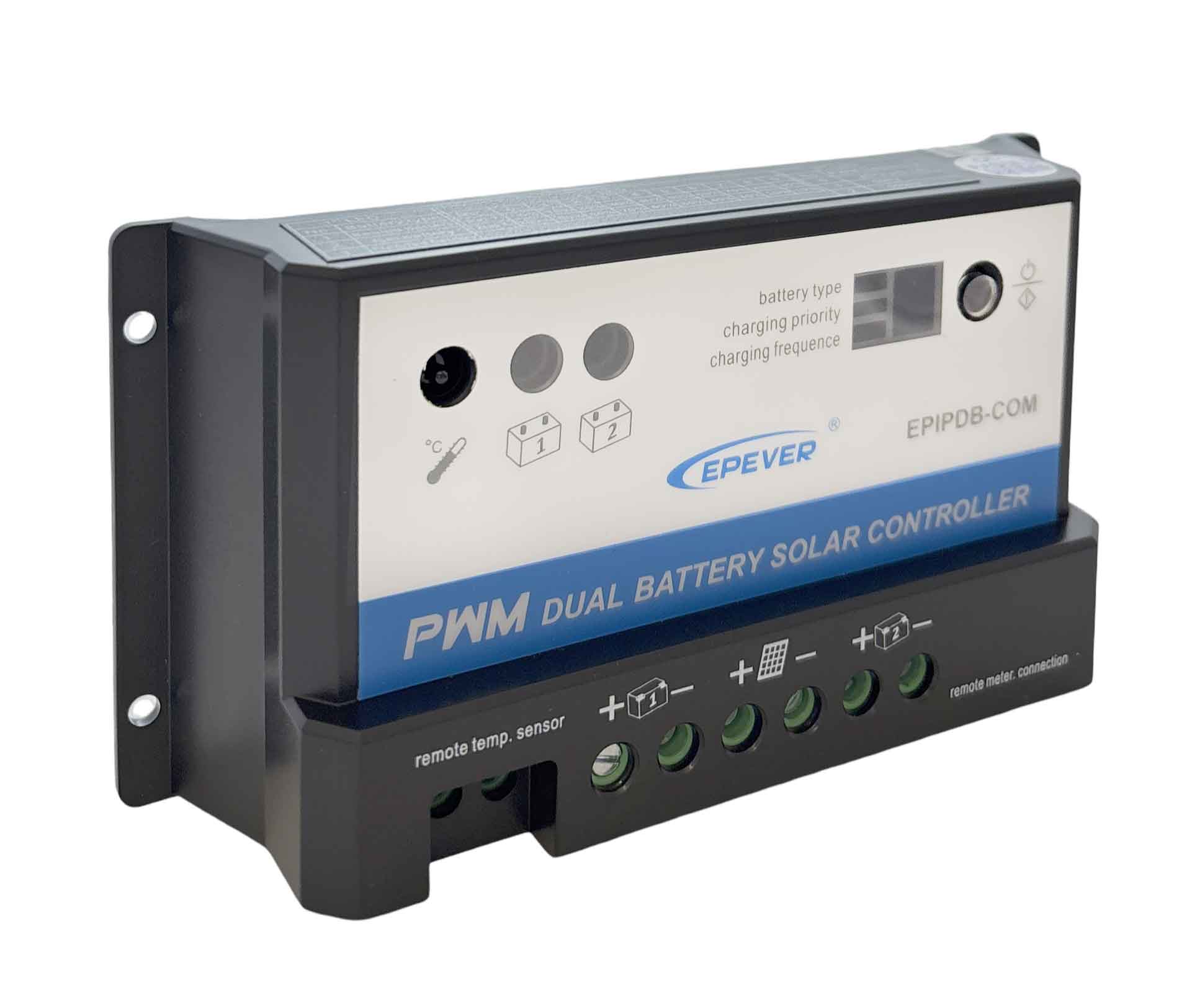

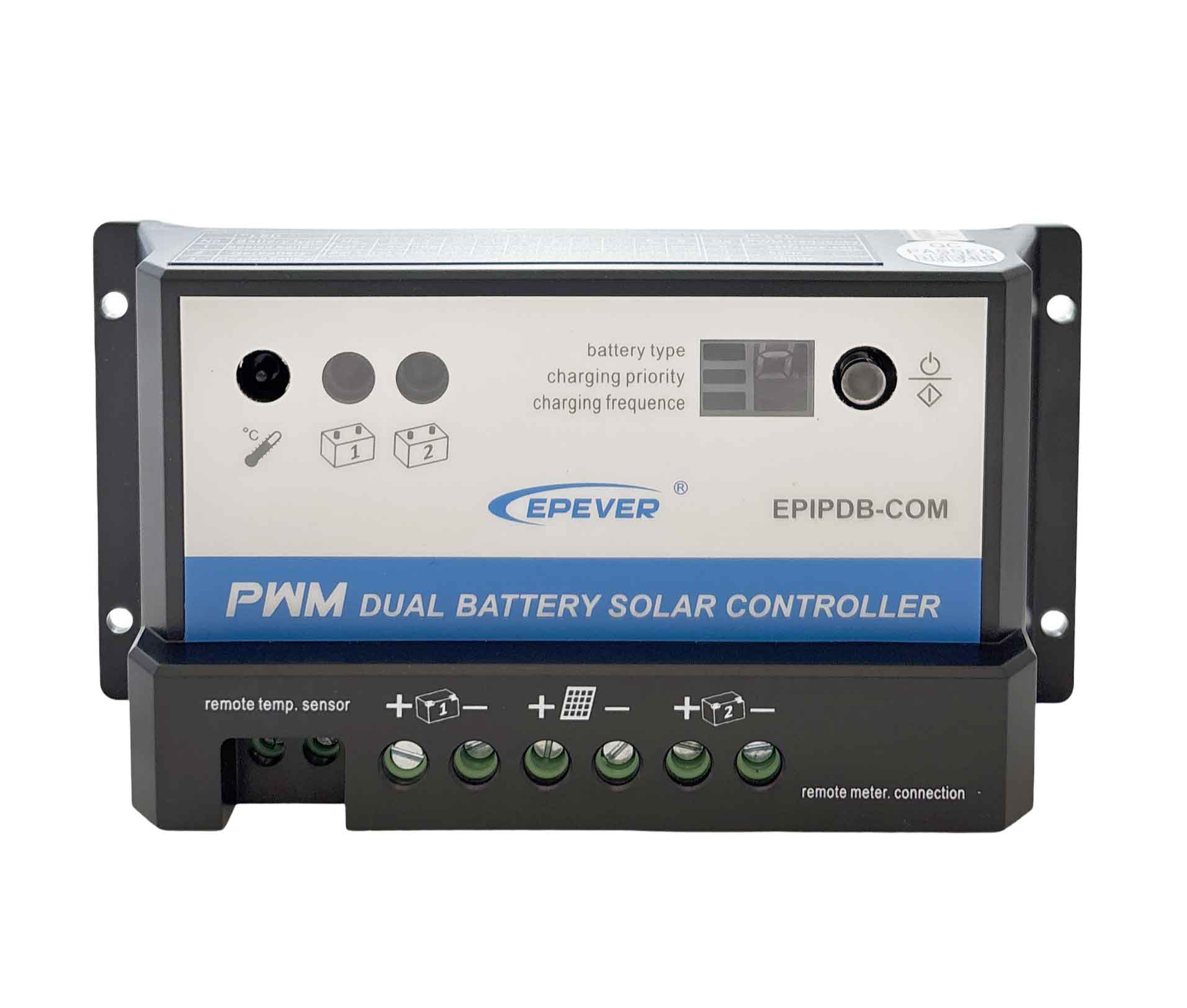

10A 12-24V PWM Solar Charge Controller Dual USB Camper Van Boat

Charge controller 12/24V 10A with 3 charge stages allowed to manage 2 batteries at the same time. Simple, economical and reliable charge controller, able to transfer the charge from photovoltaics to batteries correctly, for a long life of the same. And it is a possible to load two independent battery banks by setting the power level for each battery bank.
A charged batteries the regulator stops the charge and maintains the optimum voltage for the battery type selected, avoiding overloads and damage.
Suitable for solar panels with 36 or 72 mono or polycrystalline silicon cells up to 180 watts of power.
Always check the parameter Im solar panel if it is compatible with the maximum allowable current from the regulator.
Features:
- Voltage configurations: 12/24V;
- Rated charging current: 10A;
- Load max voltage: 14,4/28,8V;
- Charge disconnection point: 11,1/22,2V;
- Charge re-connection point: 13,1/26,2V;
- Charge system: 4 stages;
- Output: 2;
- Working temperature: -35/+55°C;
- Type: Stand Alone, Boat/Camper;
- LCD display: NO.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice.
The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.

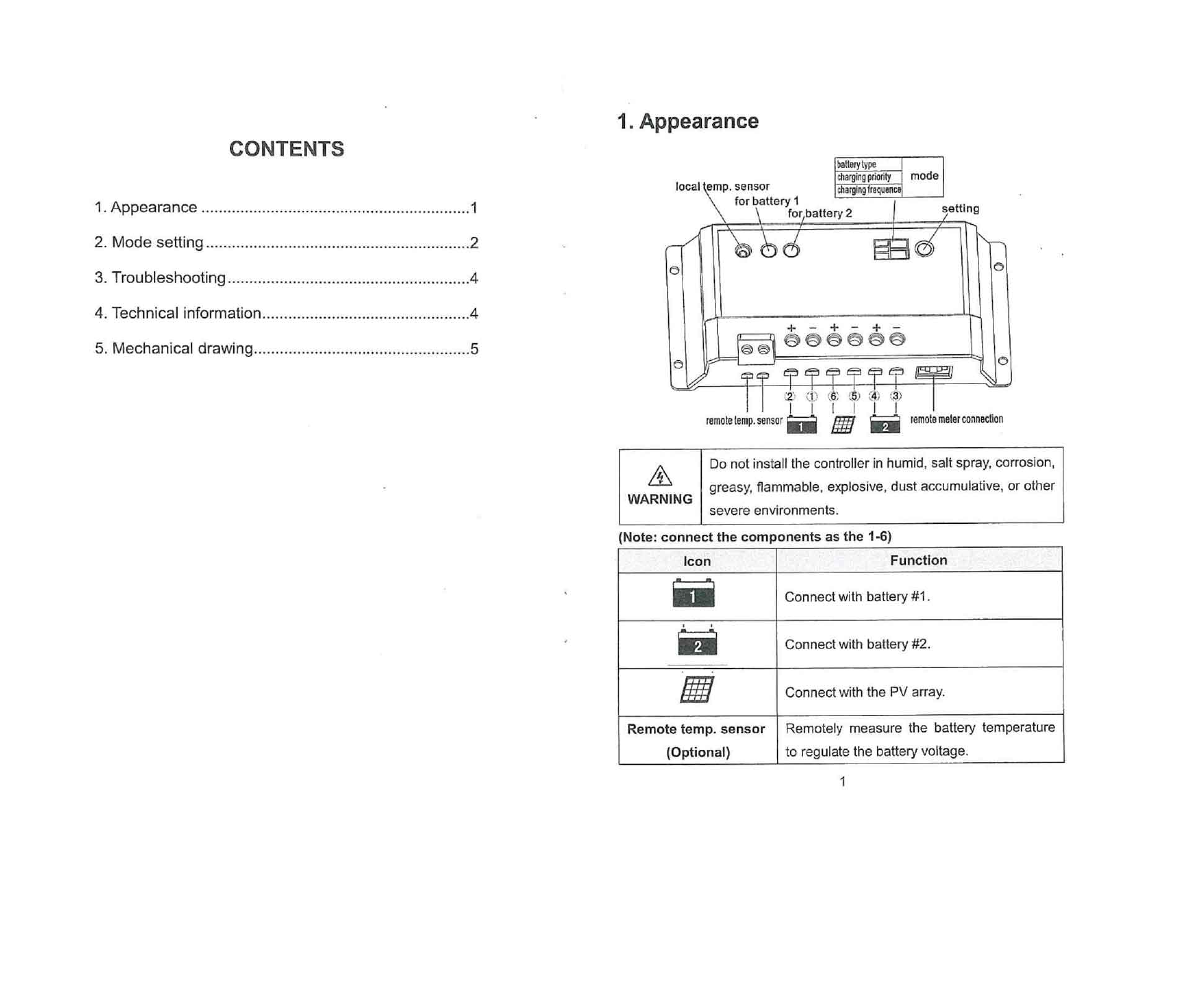

Downloads
