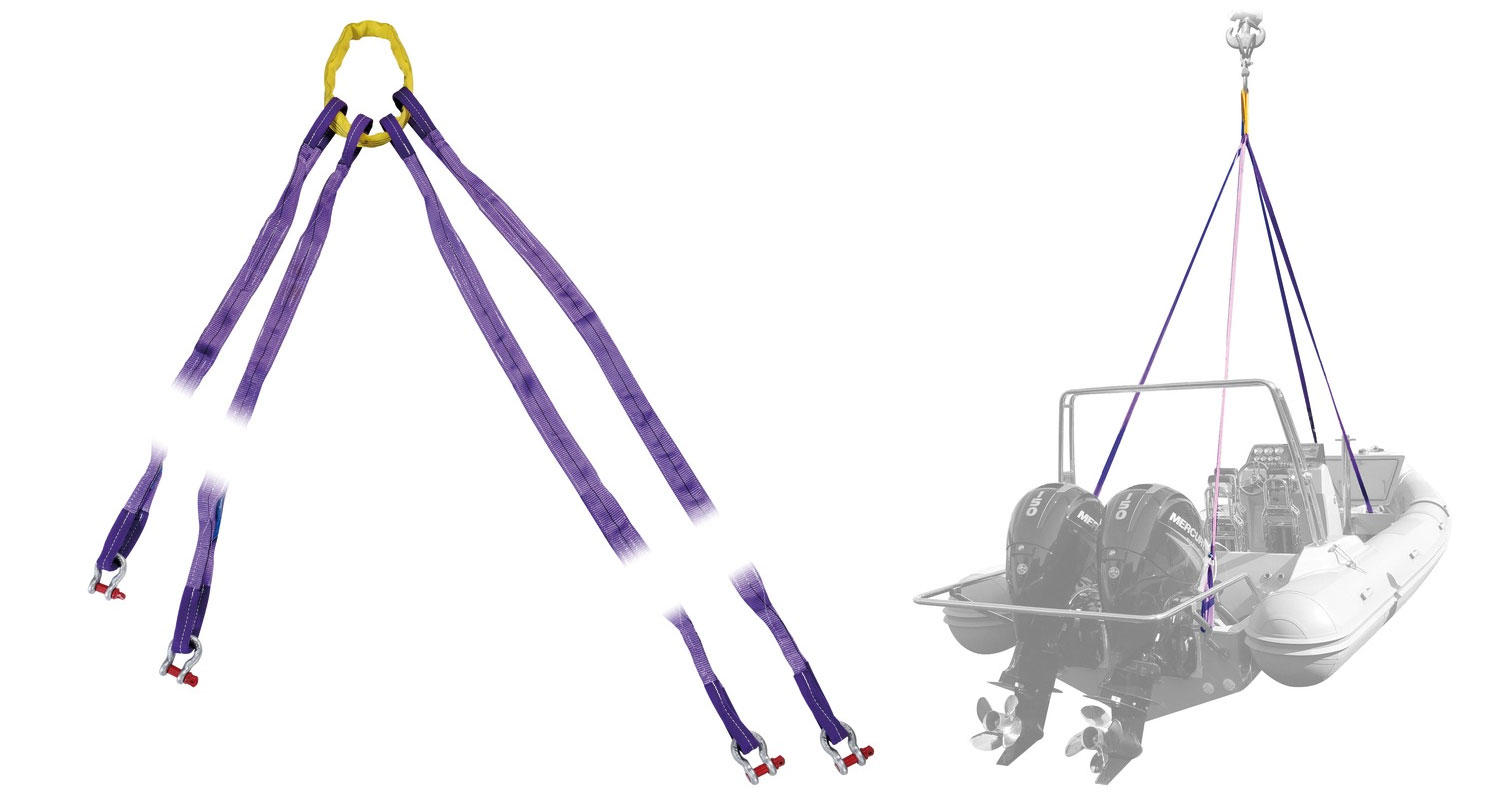

4-arm lifting system for inflatable boats and dinghies. Short strap A - dimensions 390x5cm. Short strap A - possible lengths 390-440cm. Long strap B - dimensions 520x5cm. Long strap B - possible lengths 520 - 570 - 620 - 670cm. Breaking load 4000kg. Boat length 6/7,5mt.

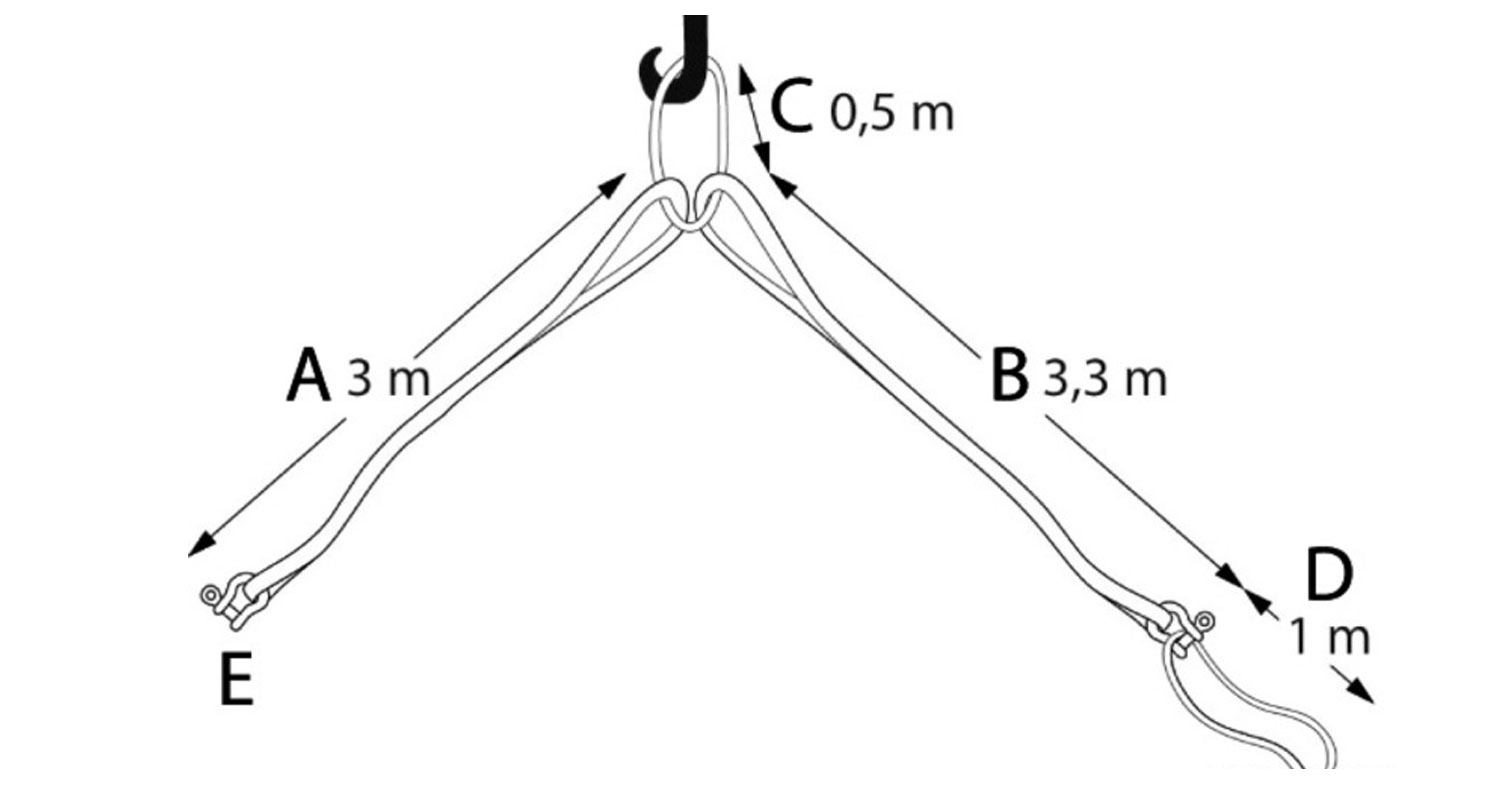

This kit is designed to offer several hooking point combinations when different lengths are reached ensuring the correct balance while lifting the boat. User-friendly system that can be easily modified at each haulage. It can also be used as 3-arm system. Lengths can be modified as follows: - Crane side, using (or not) the yellow ring (+0.5 m) - Boat side, adding half the extension strap (+0.5 m) or the whole of it (+1 m). The kit includes: - 2 x 3-m short straps (A) - 2 x 3.3-m long straps (B) - 1 x 0.5-m yellow ring for crane hooking (C) - 2 x 1-m extension straps (D) - 4 x shackles (E).
