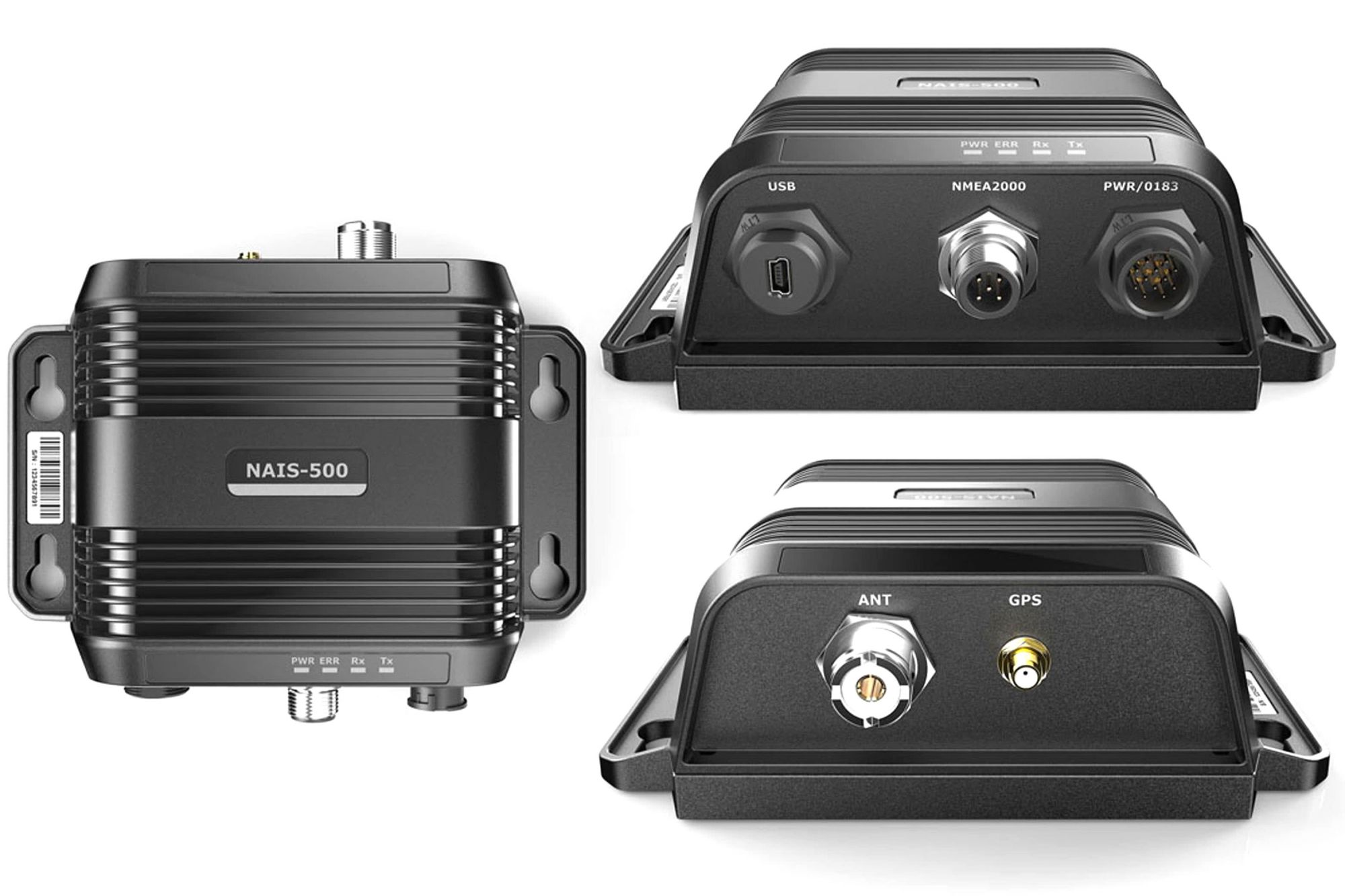

AIS Transceiver NAIS-500 class B with GPS-500 GPS antenna 000-13609-001
Reduce your risk of collision with this fully integrated, Class-B AIS transponder - essential for navigating today’s busy shipping lanes and congested ports. Compact in size, lightweight, fully waterproof, with low power draw and featuring multiple connections, the NAIS 500 is ideal for networking with any NSS, NSO, or GO series chartplotter / multifunction display and Simrad RS VHF system.
Key Features:
• Class-B approved.
• Send & receive.
• Integrated solution.
• Multiple networking connections.
• Waterproof.
• Lightweight.
• Low power consumption.
• Wide voltage range.
Technical specifications:
Dimensions: 152 x 98 x 52 mm;
Weight: 260 g;
Power consumption: 9.6 - 31.2 V DC;
Average consumption: 180 mA at 12 V;
Max. consumption: 2 A at 12 V;
GPS-receiver (integrated): Compatible with 50 channels;
Interfaces:
- USB
- NMEA0183 (38400 baud)
- NMEA0183 (4800 baud)
- NMEA2000
Connections:
- VHF antenna plug
- External GPS antenna plug
- USB-Type Mini-B
- NMEA2000 standard plug
- 12-pole power input / NMEA0183 / external switch.

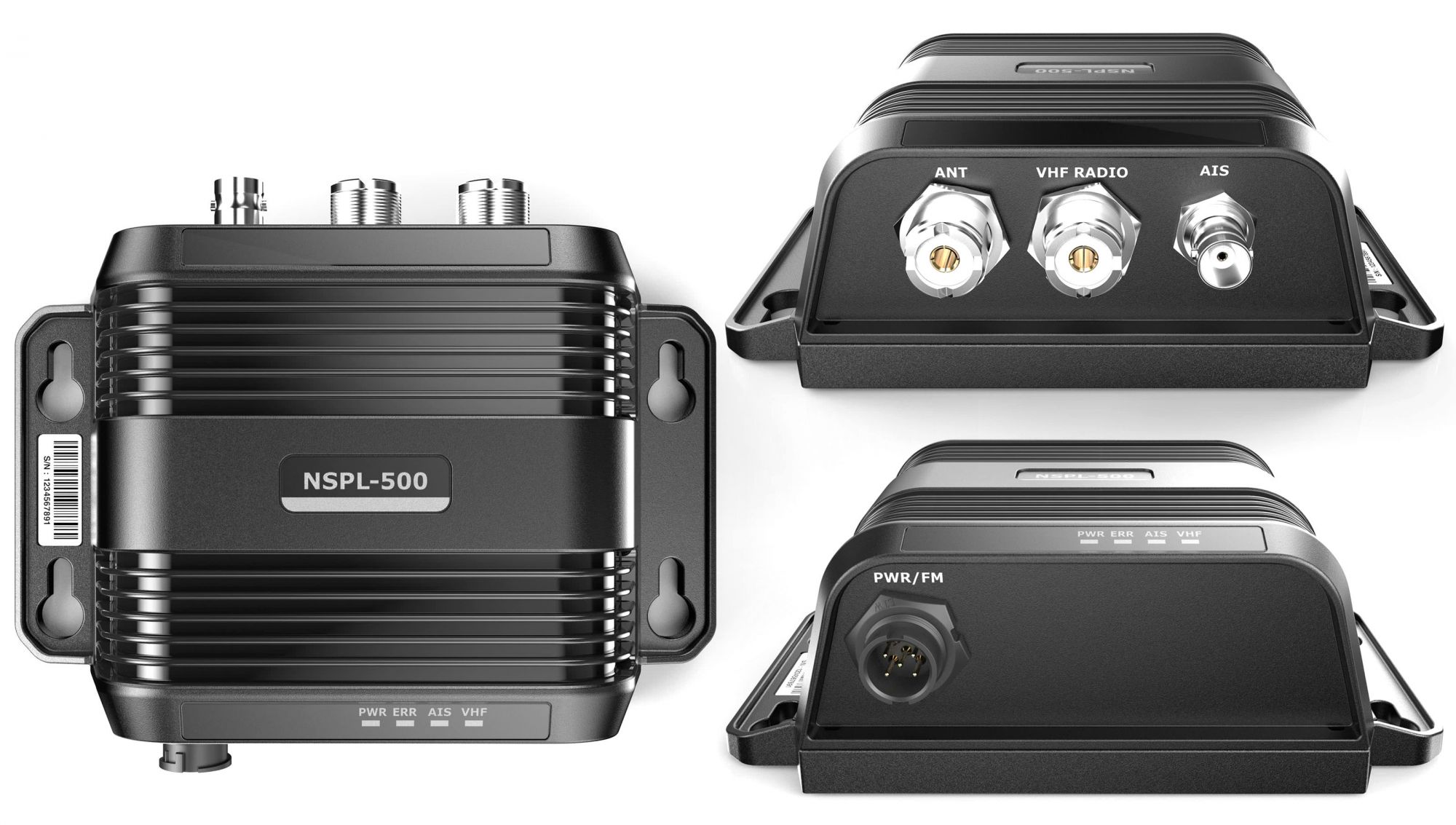

NSPL-500 Antenna Splitter 000-13612-001
With the Navico NSPL-500 antenna splitter, you can simultaneously use one FM antenna for your AIS transceiver and your radio. The antenna splitter is perfectly suitable for retrofitting AIS systems, just use your existing VHF antenna to send and receive AIS data.
The Navico NSPL-500 is the perfect addition to the Navico NAIS-500 AIS transponder.
• NSPL-500 antenna splitter.
• Product CD.
• Manual.
• Warranty information.
• Mounting screws (4 pieces).
• Power and FM radio connection cable.
• BNC - P/L cable.
• P/L - P/L cable.
Technical Specifications
Antenna connection: SO239 socket (for P / L 259 plug);
VHF radio connection: SO239 socket (for P / L 259 plug);
AIS transmitter / receiver connection: BNC socket;
FM radio: Motorola car radio plug;
Dimensions: 152x98x52mm (lxwxh);
Weight: 260 g;
Power supply: 9.6 - 31.2V (DC);
Power consumption: <150 mA at 12V (DC);
Impedance AIS, VHF and antenna connection: 50 ohms;
Impedance VHF connection: 75 ohms;
Operating temperature: -15° to +55°;
Protection class: IP67.
N2K-T-RD - NMEA 2000 T-connector for connection of additional network device 000-0119-79

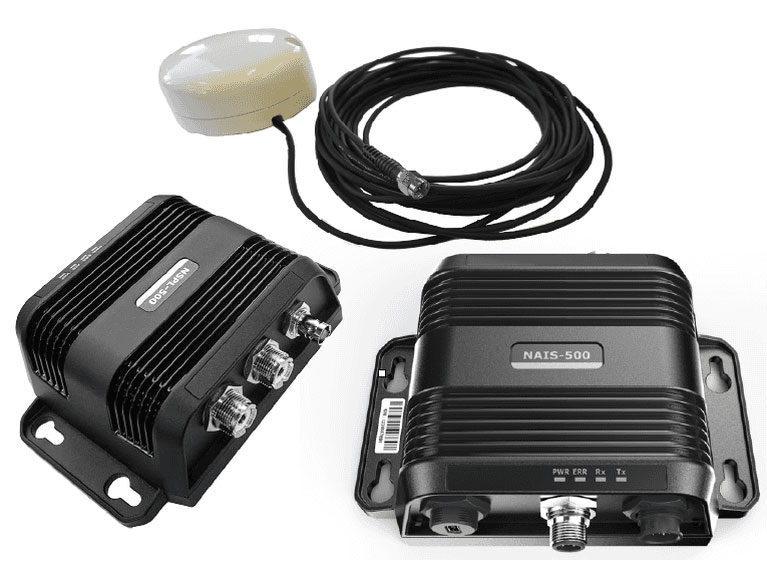

Comes with:
000-13611-001 NAIS-500.
000-13612-001 NSPL-500.
000-13613-001 GPS-500: GPS antenna for NAIS-500 AIS Transceiver.
000-0119-79 N2K-T-RD - NMEA 2000® T-connector for networking an additional device.
000-0127-53 N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable for network extension or additional device networking.
