Description

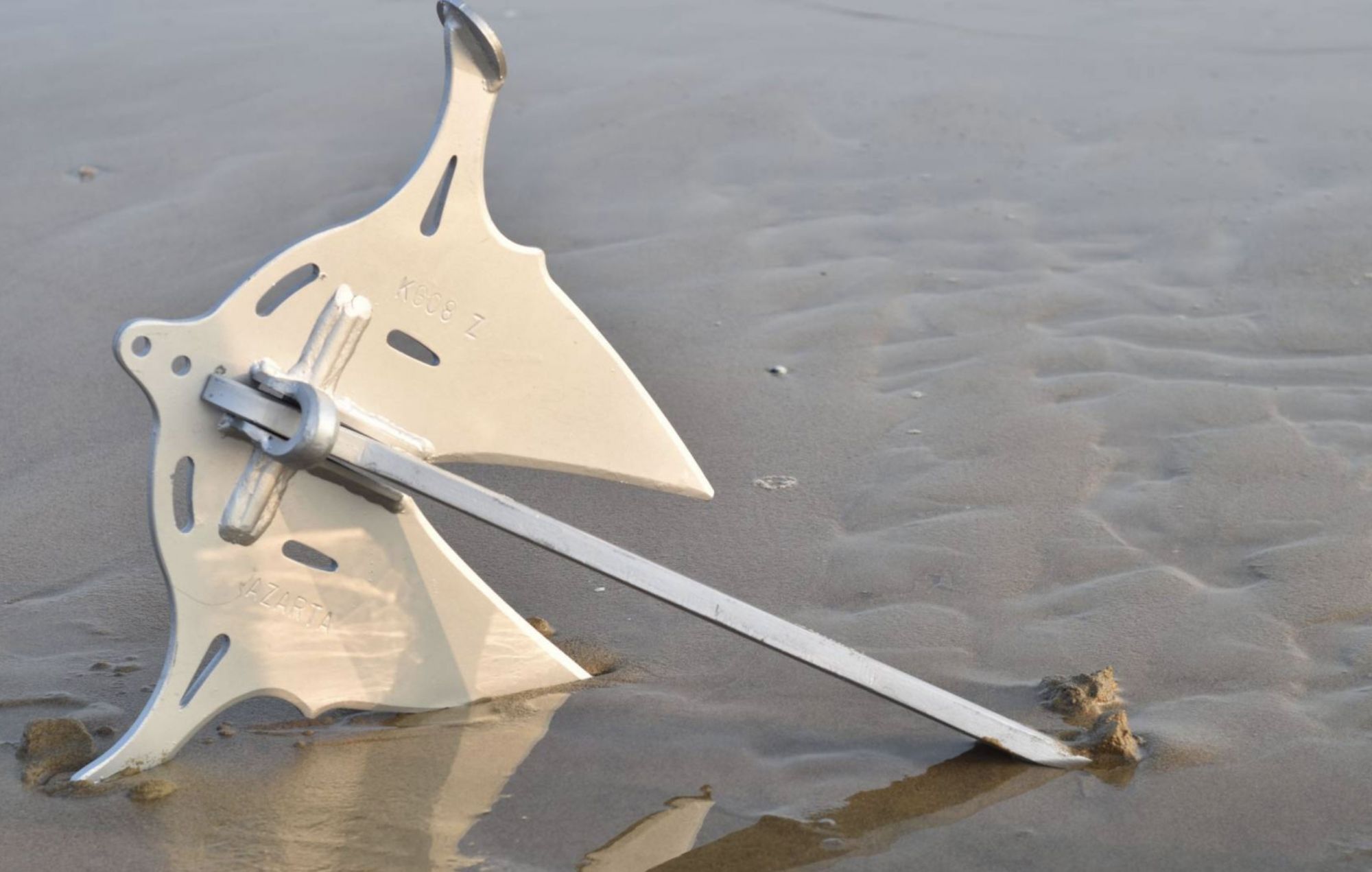

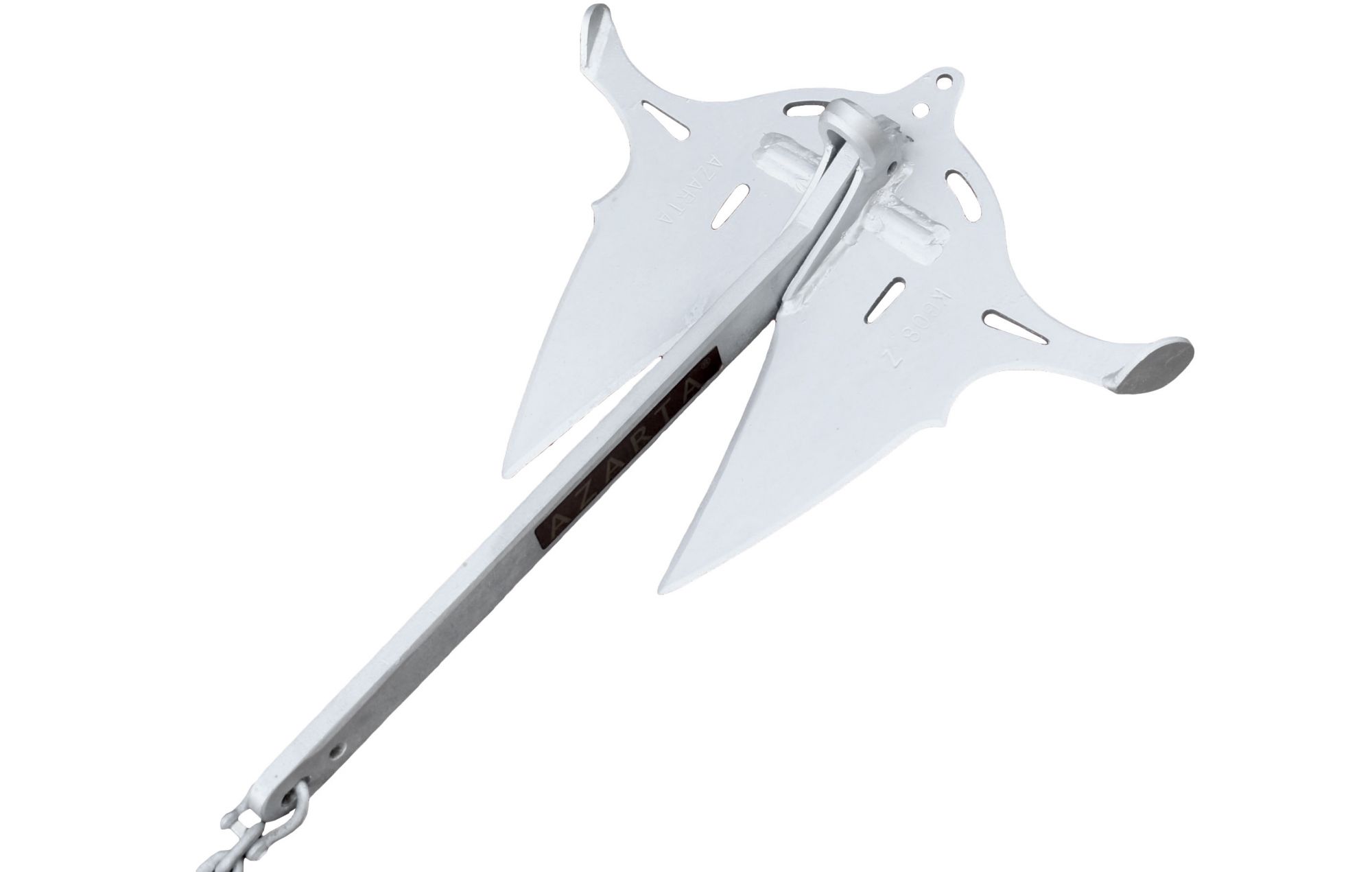

Azarta is a new design, an evolution of the articulated fluke anchors with a shape and technical solutions that allow a quick and stable grip.
Azarta is adjustable by rotating a bottom plate which goes from 30° to 33°.
It can be blocked in a flat position for safe storage. The wide discharge and joint diminished to a third of the length of the fluke facilitate cleaning and greatly reduce obstruction.

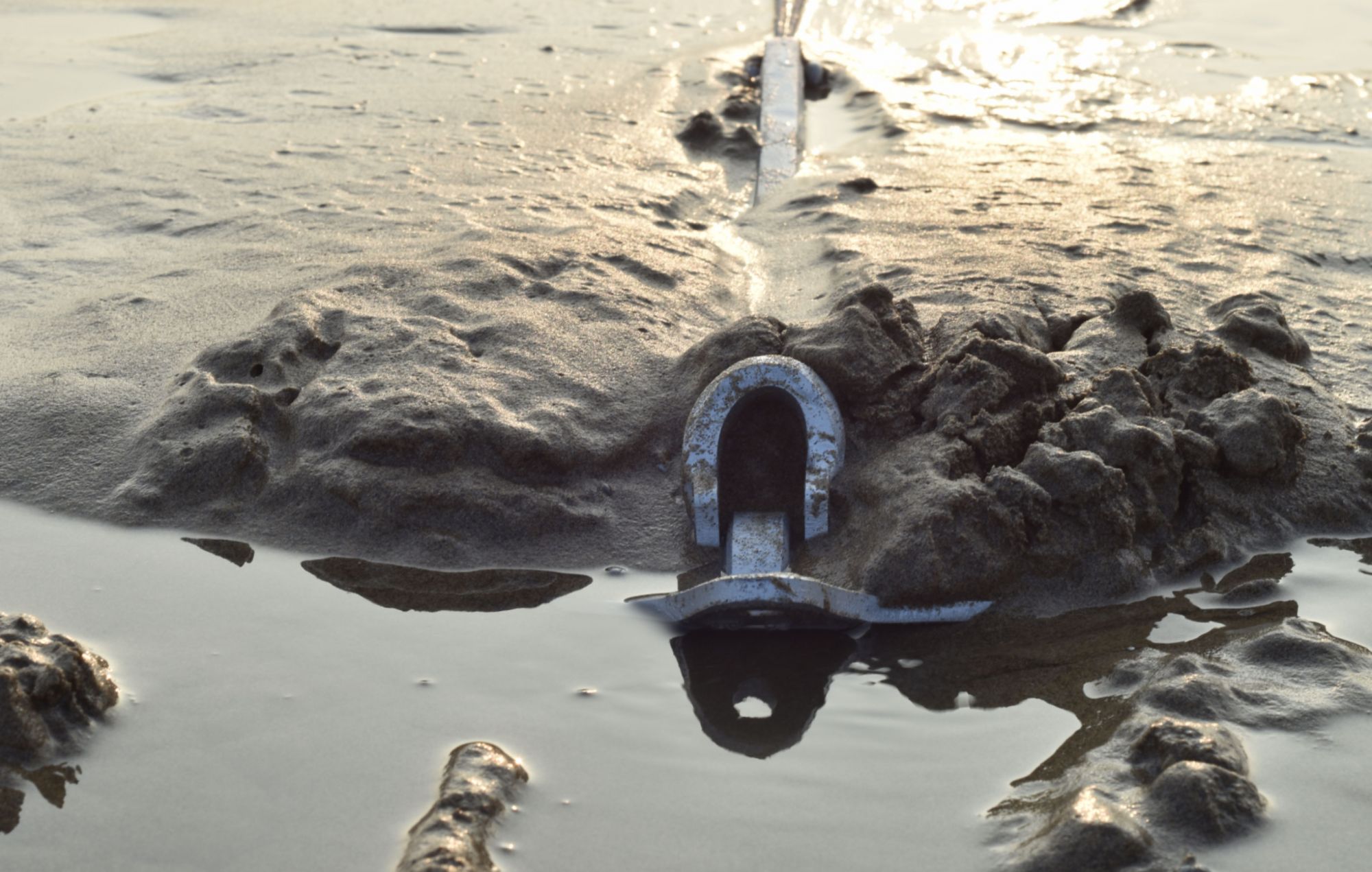

From tests carried out on sand and sand/mud it appears that Azarta remains stable even during wheel turns without overturning. The addition of the flaps increases stability, straightening and grip of the anchor.
Azarta is equipped with a structural jumper which acts as a hook to grip the seabed and open the flukes.
Construction is carried out in Italy by certified professionals, with great care and craftsmanship, one piece at a time.
Technical specifications:
Anchor weight: 10 kg / 22lb;
Area cm²: 700;
Suitable for boats: < 8mt / <26ft;
Displacement: < 2000 kg;
Size: 515x660 mm.
