Description
Azarta is a new design, an evolution of the articulated fluke anchors with a shape and technical solutions that allow a quick and stable grip.
Azarta is adjustable by rotating a bottom plate which goes from 30° to 33°.
It can be blocked in a flat position for safe storage. The wide discharge and joint diminished to a third of the length of the fluke facilitate cleaning and greatly reduce obstruction.
From tests carried out on sand and sand/mud it appears that Azarta remains stable even during wheel turns without overturning. The addition of the flaps increases stability, straightening and grip of the anchor.

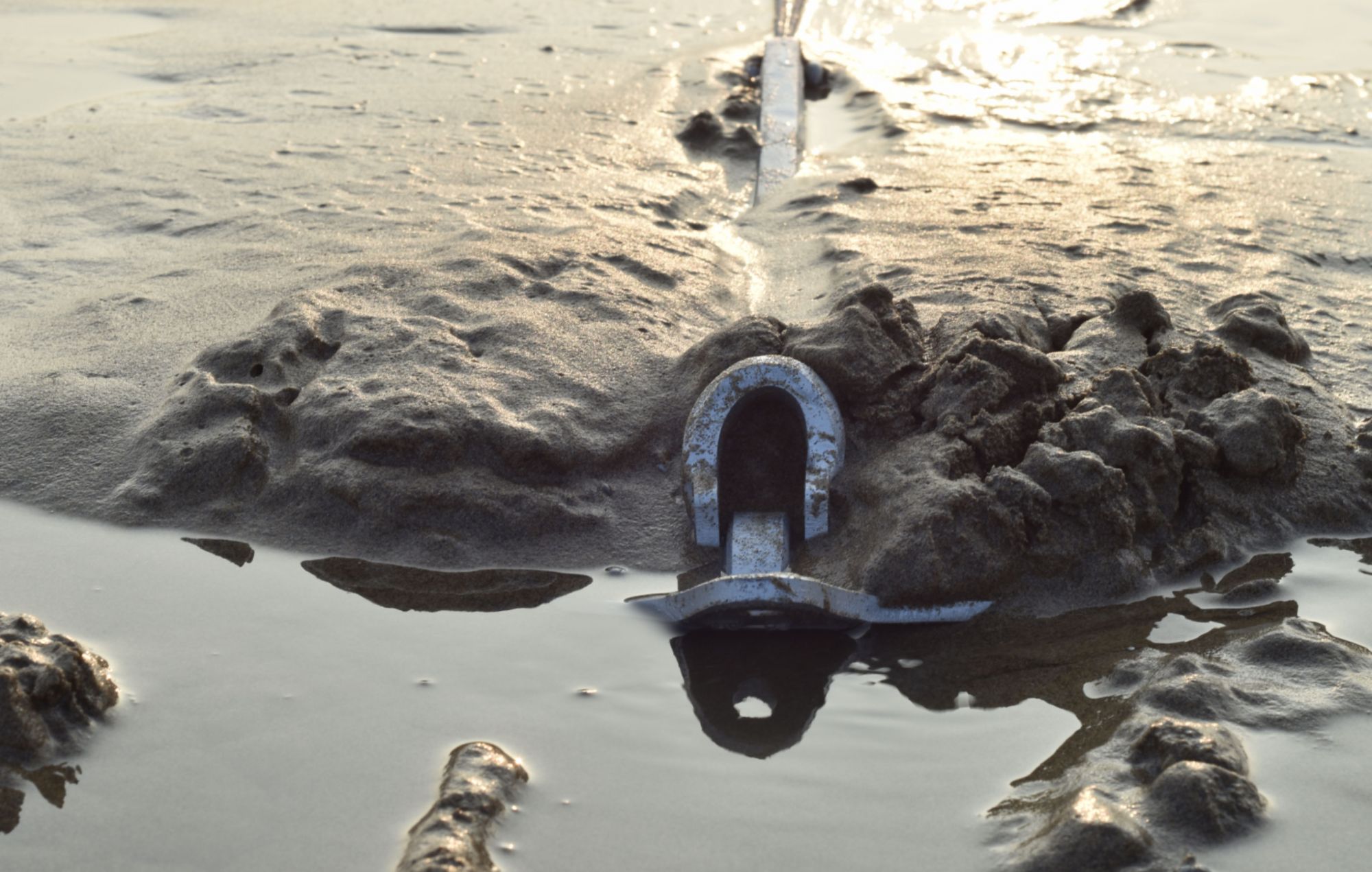

Azarta is equipped with a structural jumper which acts as a hook to grip the seabed and open the flukes.
Construction is carried out in Italy by certified professionals, with great care and craftsmanship, one piece at a time.
Technical specifications:
Anchor weight: 21 kg / 46lb;
Area cm²: 1160;
Suitable for boats: < 12mt / <40ft;
Displacement: < 9000 kg;
Size: 640x800 mm.
