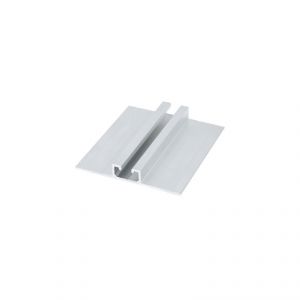

Aluminum solar mounting rail for trapezoidal sheet roofs and sliding block M. 8. 3100 mm mounting rail.
Max wheelbase: 1.6 m*
* Hypothetical loads:
• Snow load sk = 1.21 kn/m2
• Module load: 0.22 kn/m2
• Wind load:
V pressure from below = -0.80 kn/m2
V pressure from above = 0.40 kn/m2
Span width: 1.6 m*
* Assumed loads:
• Snow load sk = 1.21 kN/m2
• Module load: 0.22 kn/m2
• Wind load:
• Wsuction = -0.80 kn/m2
• Wpressure = 0.40 kn/m2

Reference 9664-W31MT310.
