The Zeus³-7 is an easy-to-use chartplotter navigation system for blue water cruisers and regatta racers, incorporating a 7-inch touchscreen display, high-performance electronics, and a wide range of functionality designed specifically for sailors
Price:
€1,976.40
Listing:
You Save:
(%)

Description

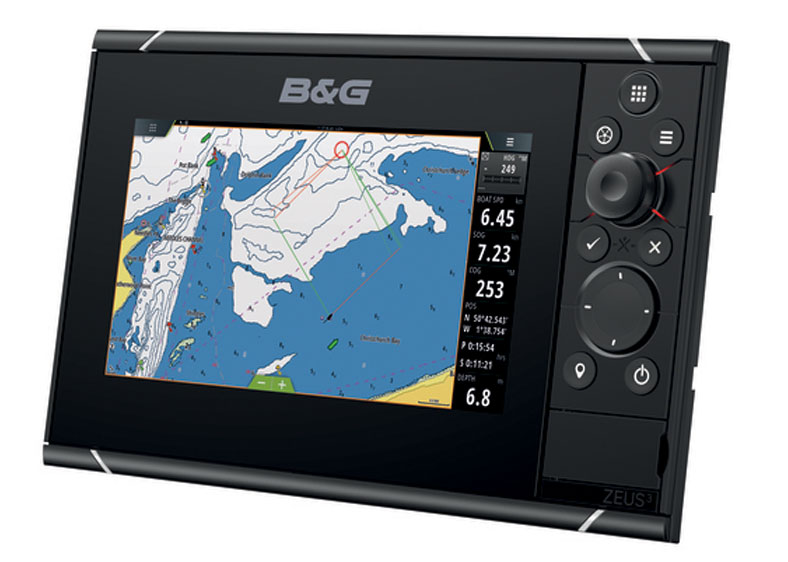

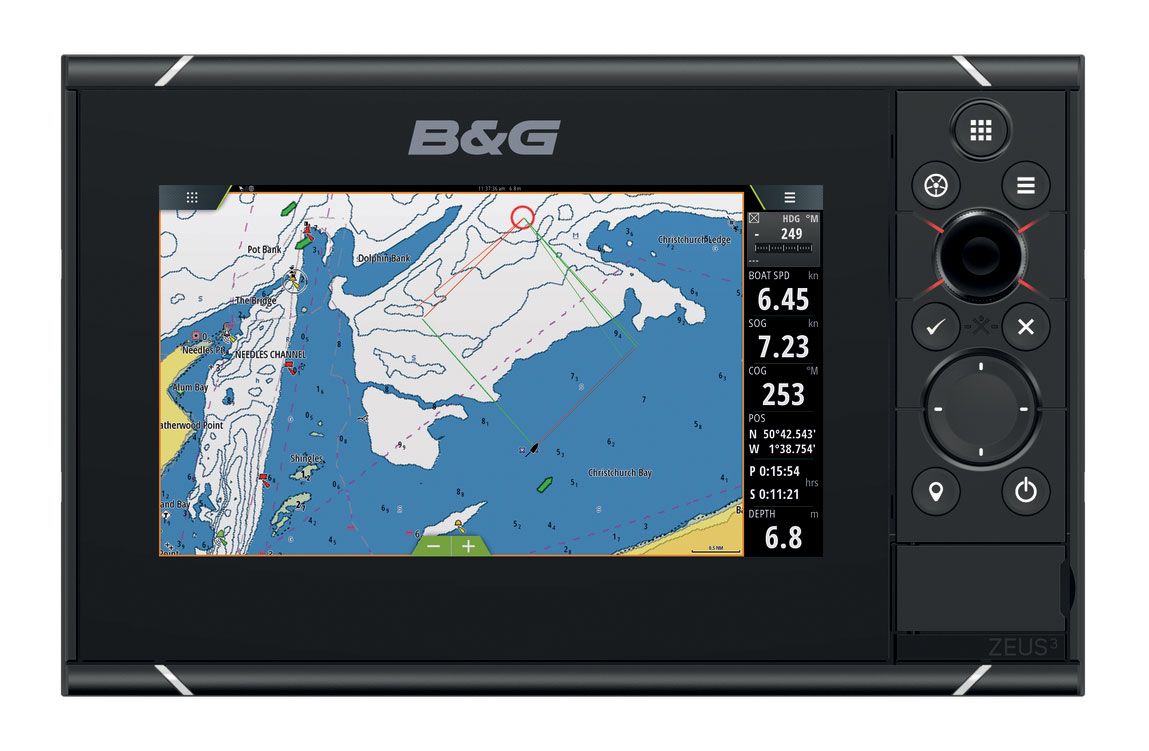

B&G Zeus³-7 Multifunction Display World Basemap 000-13245-001

The Zeus³-7 is an easy-to-use chartplotter navigation system for blue water cruisers and regatta racers, incorporating a 7-inch touchscreen display, high-performance electronics, and a wide range of functionality designed specifically for sailors. World basemap chart

This high-performance multifunction display features widescreen display, incorporating SolarMAX™ HD technology for brilliant daytime visibility and ultra-wide viewing angles. To ensure reliable control in all conditions and situations, Zeus³ combines an all-weather touchscreen with a rotary dial and keypad capable of controlling all display functions. Both sets of controls can be used simultaneously, or Zeus³ can be switched to non-touch mode for dependable operation under the most extreme conditions.

Built-in Wi-Fi lets you access GoFree® online services to download charts, weather information, and software updates direct to your display via any Wi-Fi internet hotspot. GoFree® Wi-Fi also lets you mirror your Zeus³ screen on a compatible smartphone, and control your Zeus³ display from a compatible tablet, for an extra display that you can use anywhere on board.

Built-in ForwardScan™ sonar support offers safer passage through shallow and poorly-charted waters; just add a ForwardScan™ transducer for a clear on-screen view of the depth ahead. Zeus³ displays also offer plug-and-play support for Broadband Radar™ and AIS solutions, enhancing your situational awareness with tools like MARPA target tracking and AIS overlay in crowded harbours and during races and regattas. Complete autopilot integration means short-handed and single-handed sailors can take immediate control of their B&G autopilot system from any B&G Zeus³ display on board.

Specifications
Physical
Dimensions: 239 x 150 x 90 mm (9.4 x 5.9 x 3.5"), With bracket: 263 x 161 x 93 (10.35 x 6.31 x 3.66")
Weight: 1.1 kg (2.42 lbs.)
Enviromental
Operating temperature range: -15°C to +55°C (5° F to 131° F)
Environment Shock Vibration: 100,000 cycles of 20G
Storage temperature range: -20°C to +60°C (4°F to 140°F)
Water resitance: IPX6 and 7
Power
Supply voltage: 10 - 31.2 V DC
Fuse rating: 3A
Power consumption (Max): 20W
Display
Display backlight color: White
Display resolution: 600 x 1024
Display screen brightness: 1200 nits
Display sizeand type : High Visibility SolarMax HD® IPS 7" optically bonded TFT
Display viewing angles: 80° top/bottom, 80° left/right
Conncetivity
Ethernet: 1 x 5 pin yellow connector x 1 Mbit, max 6 processors on network
Bluetooth: Internal
NMEA2000 connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 2000 PGNs: Receive only
