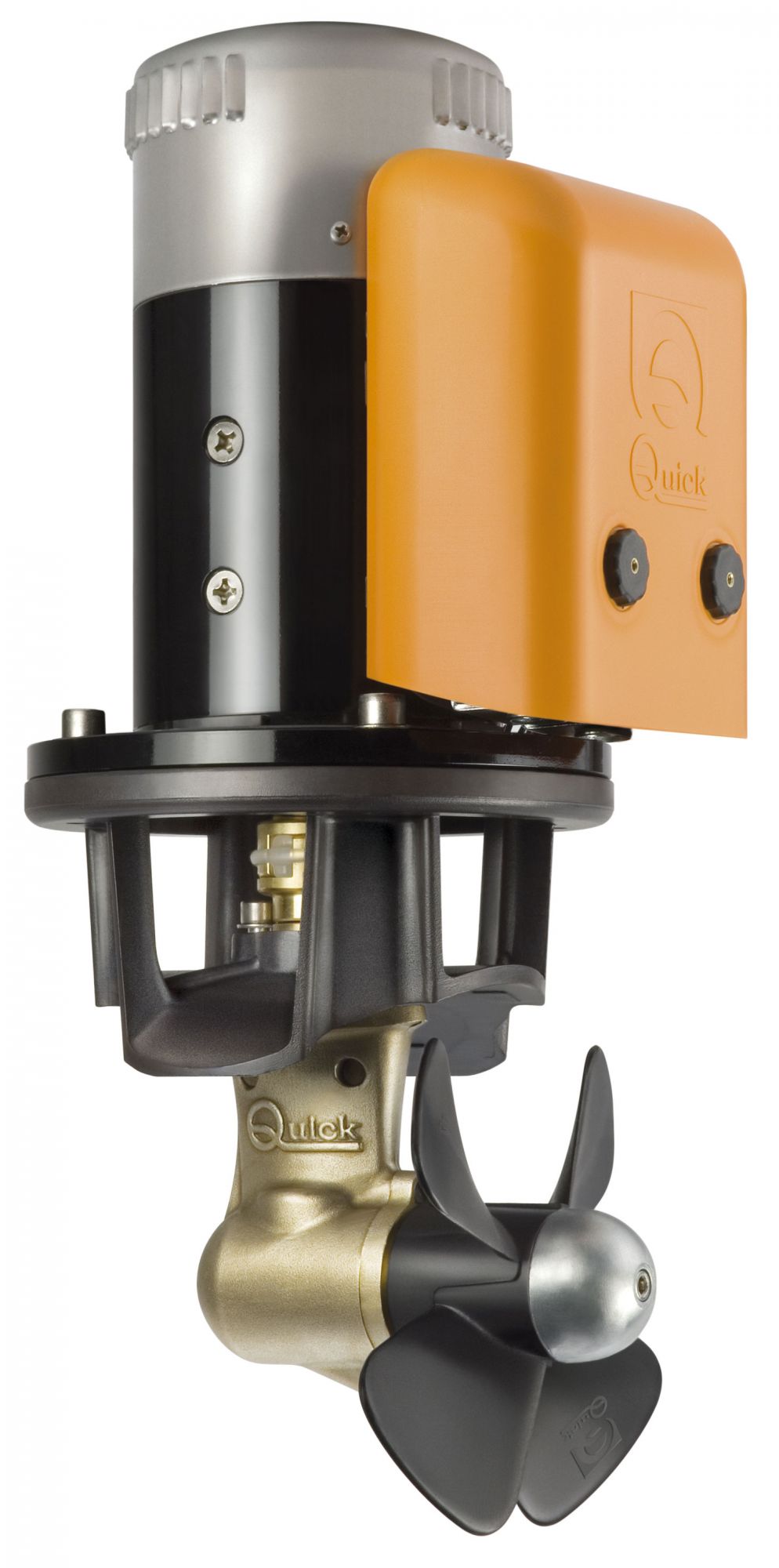

BTQ 185-75 DC Single Propeller Bow Thruster 12V 24V 4Kw Thrust 75Kgf
Single propeller made in sturdy composite material. Recommended boat length 10-13 m (33-43 ft). Solenoids protection carter in sturdy composite material. Composite material. Bronze gearbox. Independent zinc anode from the gearbox and easily replaceable. Equipped with elastic coupling.
The Gearbox is created so that the behaviour of the propeller is unaffected in either direction. The conical gears that make up the gearbox are reinforced and adjusted to ensure maximum efficiency. Maintenance is not required since the special highly resistant components guarantee a perfect lubrication seal for life. The anodic zinc protection is easily replaceable.
The bronze propeller gear leg is provided with a hydrodynamic profile that minimises turbulence.
The 4-blade Propeller guarantee maximum thrust performance and reduction in current absorption. This is made of composite materials, resistant in every condition, and fastened with self-locking nuts in stainless steel.
The case that protects the reversing contactors is made of robust composite materials that are resistant to corrosion. The electrical connections are provided with quick connectors.
The elastic joint that optimises the alignment between motor and gearbox is an exclusive Quick design. This acts as an even tension device, preserving the operating system from impulses from the bow thruster, with above-average results.
The motors new-generation materials have been chosen to constantly guarantee required output and maximum performance, given the severe conditions required by the application. Protection against overheating of the motor is ensured by a microprocessor.
The support flange is completely in hard coat anodised aluminium.
Model: BTQ 185-75;
Propulsion system: Single propeller;
Ø Tunnel: 185 mm;
Voltate: 12 V o 24V;
Motor power: 4 Kw;
Thrust: 75 Kgf;
Boat length*: 10-13 m (33-43 ft);
Weight: 12V - 17,5 kg, 24V - 20,5 kg;

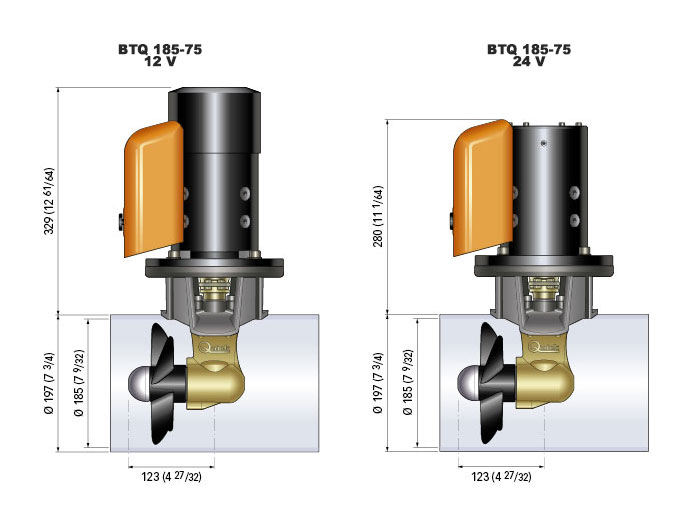

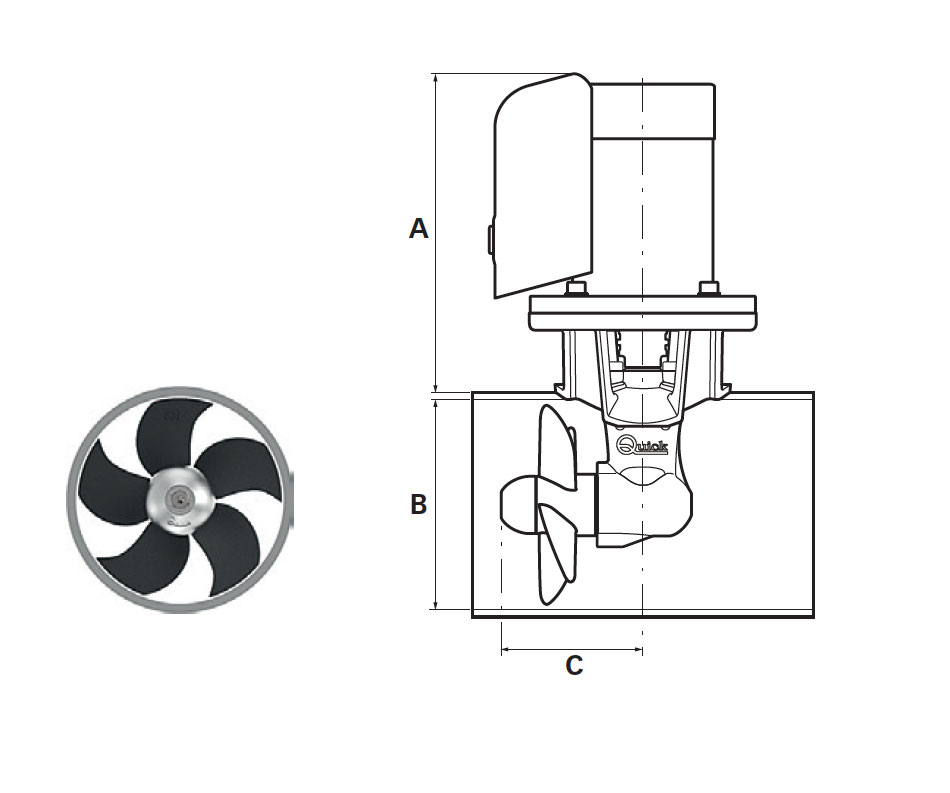

Dimensions: 12V - A 329 mm - B 185 mm - C 123 mm, 24V - A 280 mm - B 185 mm - C 123 mm.
(*) ATTENTION: Indications may vary according to the boat type.
NB: Click on the drop down menu to choose 12V or 24V propeller.
