Black water tank with horizontal soaker 103L 24V #OS5014791

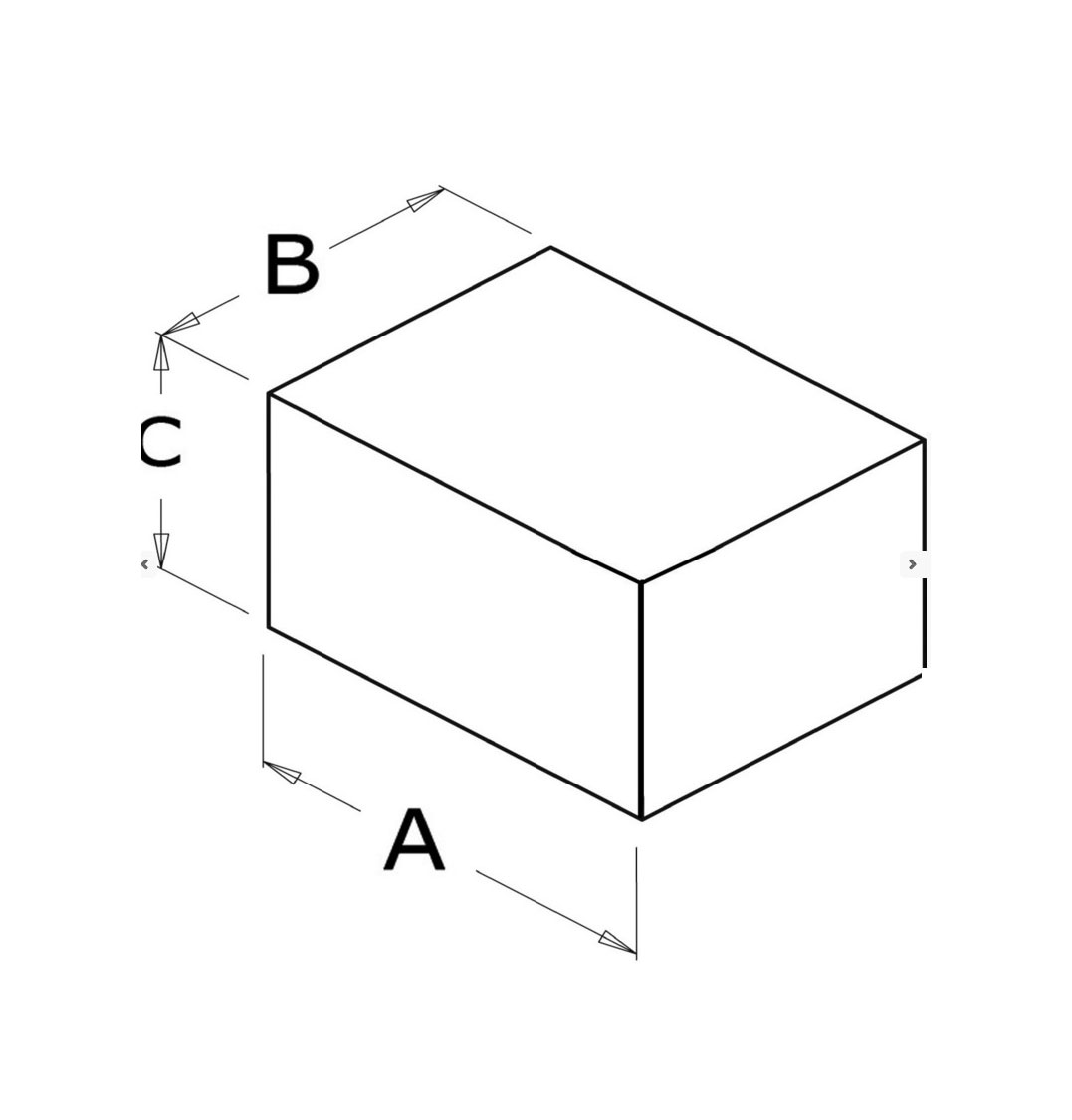

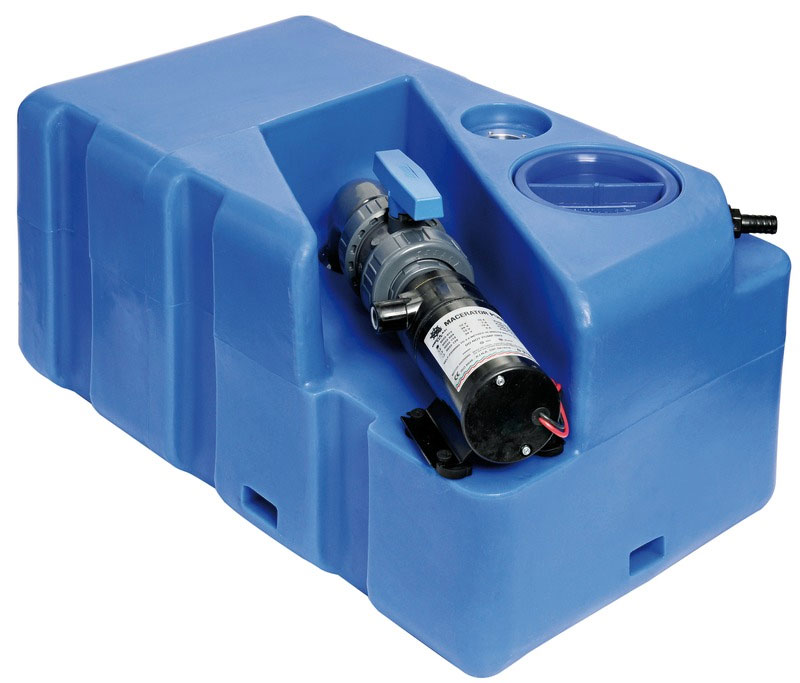

Black water tank with horizontal soaker. Net volume 103L. 24V. Macerator outlet Ø 25mm. Max length for float 25cm. Size: A= 1050mm, B= 390mm, C= 300mm.
Price:
€495.06
Listing:
€603.73
You Save:
€108.67 (18%)

Description

Black water tank with horizontal soaker. Net volume 103L. 24V. Macerator outlet Ø 25mm. Max length for float 25cm. Size: A= 1050mm, B= 390mm, C= 300mm.
Sold already mounted and ready for installation. Compatible with all manual and electric WC.
Macerator included OS5022024.
EQUIPPED WITH:
- electric soaker;
- 1” 1/2 + 3/4” loading female threads;
- 3/4” vent female threads;
- 1” 1/2 manual emergency drain female threads;
- housing for fastening hooks OS5219500;
- shut-off valve for soaker drainage in case of maintenance;
- 5-bore flange for level sensor (sensor to order separately);
- protection for sensor level. Manufactured in compliance with the ISO 8099 standard.

SS plate for tank fastening OPTIONAL OS5219500

Accessories

  1. 1
    Stainless steel bracket for fixing tanks #OS5219500
    Price:
    €6.17
    Stainless steel bracket for fixing tanks
  2. 2
    Self-priming Macerator Pump 24V 43l/min for Wastewater Tanks #OS5022024
    Listing:
    €154.57
    Price:
    €126.75
    You Save:
    €27.82 (18%)
    24V 43l/min Self-priming macerator for draining waste water deposit tanks, inlet size 38 mm, outlet size 25 mm. Flow 23l/min with 3-m Discharge head. Size: 240x130x90mm.
