Blue Sea Dual Circuit Plus Battery Switch 300A 32V #TRK0606011

Blue Sea Dual Circuit Plus Battery Switch 300A 32V #TRK0606011
  • Blue Sea Dual Circuit Plus Battery Switch 300A 32V #TRK0606011
  • Blue Sea Dual Circuit Plus Battery Switch 300A 32V #TRK0606011

Blue Sea Dual Circuit Plus Battery Switch 300A 32V #TRK0606011

of Trem

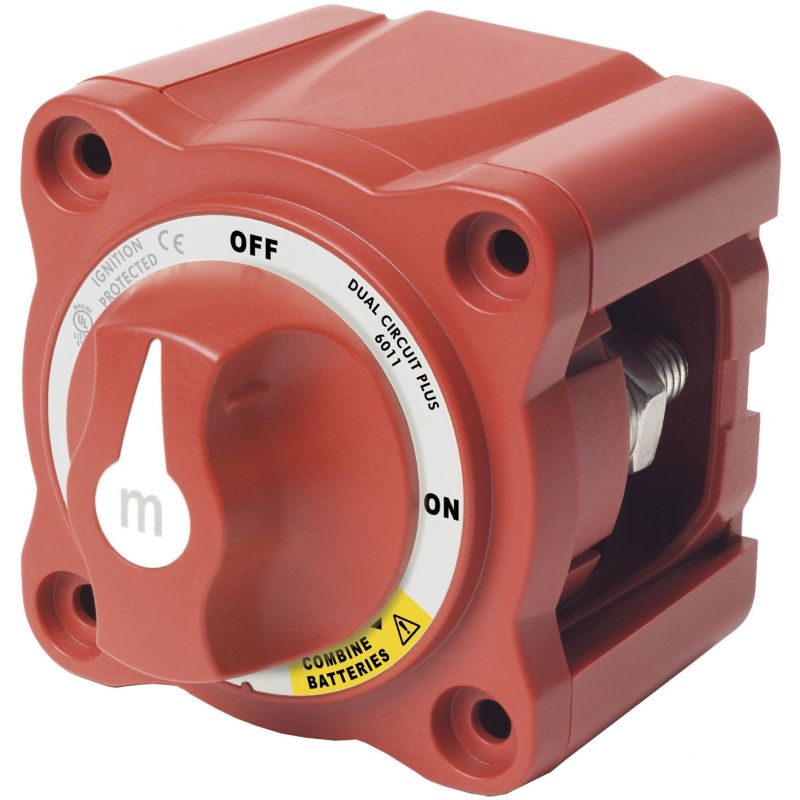

Blue Sea Mini 300A Blue Sea Dual Circuit Plus Battery Switch. (4 tin-plated copper studs). Simultaneously switches two isolated battery banks.
Price:
€68.97
Listing:
€86.21
You Save:
€17.24 (20%)

Description

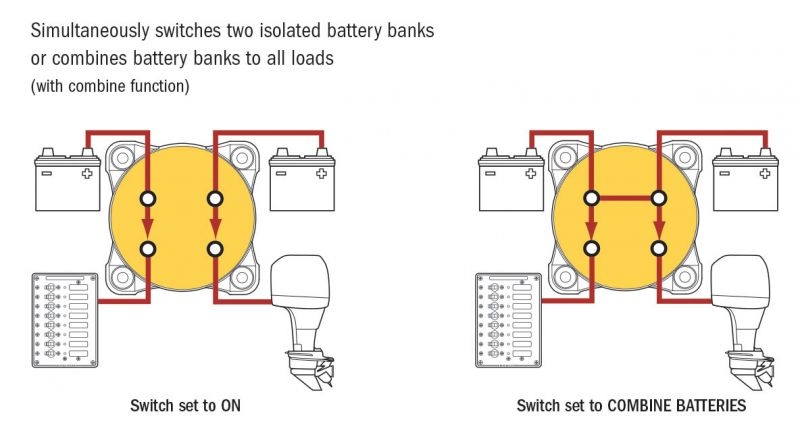

Dual circuit Plus 300A. Simultaneously switches two isolated battery banks or combines battery banks to all loads. Cannot be used to switch positive and negative conductors because of the combined feature. Surface, rear, or front panel mounting options.
Terminal studs made of tin-plated copper.
Specifications:
- Model: 6011B;
- Continuous rating: 300A;
- Intermittent rating.: 450A;
- 10 sec. Rating: 1000A;
- Voltage: 32V;
- N° of Poles: 1;
- Section Pins: M10;
- Hole: 60.33 mm;
- Dimensions: 71.76x71.76x77.94 mm.
