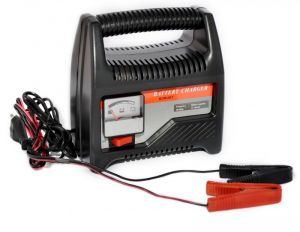

Built with durable material and with a carry handle, connects to the battery via the terminals blocks. The battery charger can be used only with batteries of 6 or 12 V for acid. When uploading, if overloaded, the charger flashes the voltage to a normal situation, thanks to its automatic protection system. In case of a short circuit, the device will automatically turn off and then turn back on after a couple of minutes. Recharge your battery as soon as possible. Ability to load batteries in 6 and 12 V.
Technical characteristics:
• Input voltage: AC 230V/50Hz
• Output voltage: DC 6V/12V 5.6A
• input AC power: 100W
• Charging current: 8A max
• Battery capacity: 15-120Ah
• Overload protection
• 1.4m charging cable / 1.7m power cord
• Ammeter
NOTE:
This battery charger does not have a power supply function and as such in order to provide voltage and current it needs to be connected to a battery with a minimum voltage of 10.7V.
If the battery voltage is less than 10.7V the battery charger will not activate and will not charge.
A battery with voltage of less than 10.7V could be faulty and a forced recharge could cause the acid to leak, an increase in internal pressure due to the gases and a possible explosion.
Package contents
• battery charger
• instruction booklet
