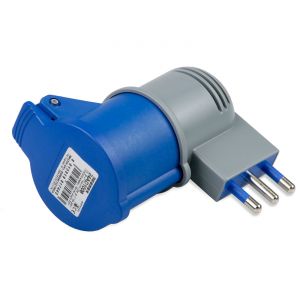

Industrial (IEC 60309) to residential system adapter. S17 2P+E 16A plug and CEE 2P+E 16A 240V IP44 socket. Low Voltage Directive (LVD) 2014/35/EU. RoHS Directive 2 - 2011/65/EC.
Particularly suitable for camping, gardening, and for connecting tools and power tools in general, in places where the available socket is different from the plug mounted on the appliance.
Reinforced technopolymer body, extra thick, impact-resistant (anti-fall). Self-extinguishing material.
Features:
Plug: Italian civil S17, 2P+E 16A 250V
Socket: Industrial type IEC 60309, 2P+E 16A 250V
Current: 16A
Voltage: 200-250V
Earth contact position: h 6
Protection rating: IP 20
Impact resistance: IK 8
Dimensional stability: -25/+70°C
Glow wire test: case +650°C
Material type: Thermoplastic case / live parts casing in technopolymer.
Dimensions: 102x105x55 mm
Weight: 0.143 kg
APPLIED STANDARDS: CEI EN 60309-1, CEI EN 60309-2, CEI 23-50 + V1 + V2 + V3 + V4.
