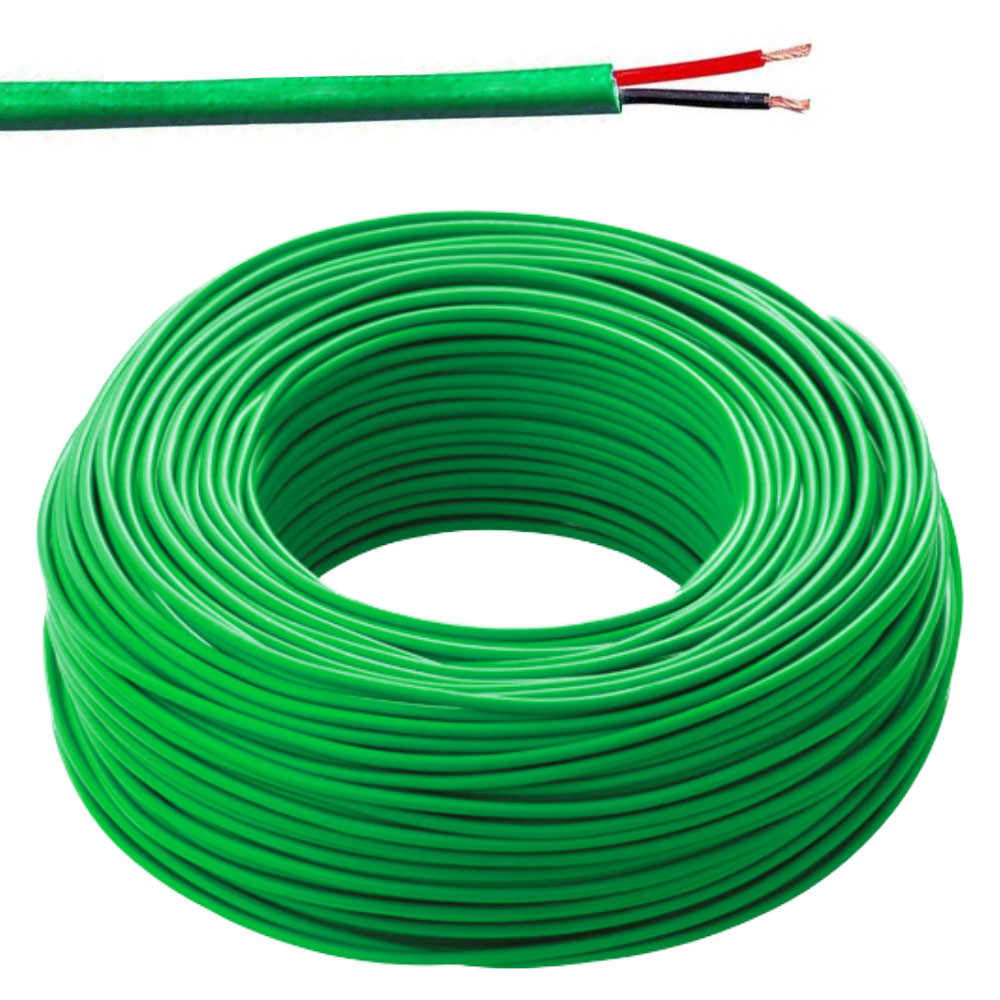

Comelit 2x1mmq Cable for Simplebus2-Top System

Specific cable for Simplebus 2 systems (parts of the riser after the mixer), consisting of two twisted red and black conductors with 1mm2 cross-section.
Technical specifications:
Main characteristics of the conductors
- Type: soft annealed copper wire, class 5 (32 x 0.2 mm)
- Insulator: Polyethylene
- Diameter with insulator: 2.2 mm
- Insulation thickness: 0.6 mm
Main features of external insulation
- Insulator: CEI 20-22 II green flame retardant PVC
- Diameter: 6.5mm
- Thickness: 1.05mm
Electrical characteristics
- Resistance: < 19 Ohm/km
- Test voltage: 2500V @ 5 min.
- Rated voltage: 450÷750V
Sold by the metre.
