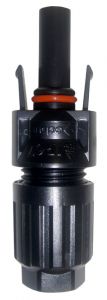

MC4 Cabur female connector designed specifically for quick and reliable connections in photovoltaic applications with the most common inverter and junction box. Contacts are made with tinned copper and casing in PPO.


LINE 4, with D.4 mm metal contacts.
Technical data:
- PIN dimension: D.4mmq;
- Maximum voltage: 1000 VDC;
- Maximum current: 30A at 70°C - 25A at 85°C;
- Contact resistance: <5m Ohm

Materials:
- Contact material: Cu;
- Plating: Tin;
- Insulation: PPO.

Environmental conditions:
- IP rating: IP67 (IEC 60529);
- Temperature range: -40°C +90°C;
- Flammability level: UL94-VO.
