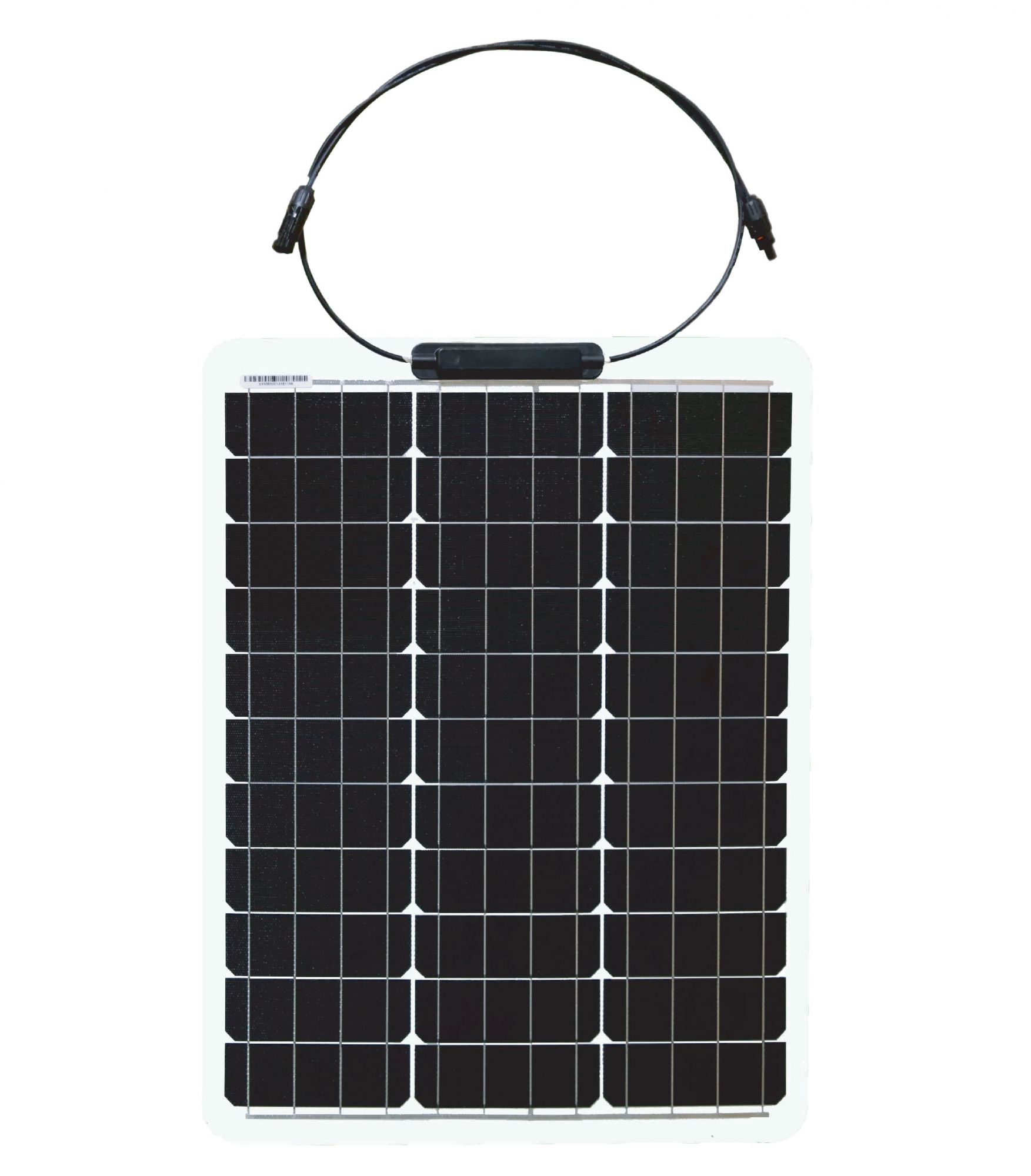

High-performance 50W semi-flexible solar module with microcrystalline cells and ETFE coating that can ensure excellent mechanical and chemical resistance, as well as being anti-reflective. ETFE, scientifically known as Ethylene Tetrafluoroethylene, is a fluorine-based plastic polymer. Thanks to its particular atomic conformation it is able to withstand high ambient temperatures while maintaining great efficiency.
Regardless of what your needs may be for a solar system, this new module will guarantee you great satisfaction.
Flexible up to a curvature of 30%. Ideal for boats, camper vans and small curved surfaces. Extremely thin and light: weighs only 2.53 kg and is just 3 mm thick.
Technical data:
- Model: SZ-50-33MFE;
- Power: 50W;
- Module performance: 19.27%;
- Voc: 19.70 V;
- Isc: 3.51 A;
- Vmp: 16.70 V;
- Imp: 2.99 A;
- Maximum system voltage: 100V;
- Output tolerance: +3%;
- Cable: 650 mm / 2.5 mmq;
- Connector type: MC4 / MC4 compatible;
- Model structure: ETFE, Aluminum Sheet, EVA, white backsheet;
- Junction box classified ≥IP67;
- Number of Diodes: 1;
- Working temperature: -40°C ~ +80°C;
- Dimensions: 670x515x3 mm;
- Weight: 2.53 kg.
