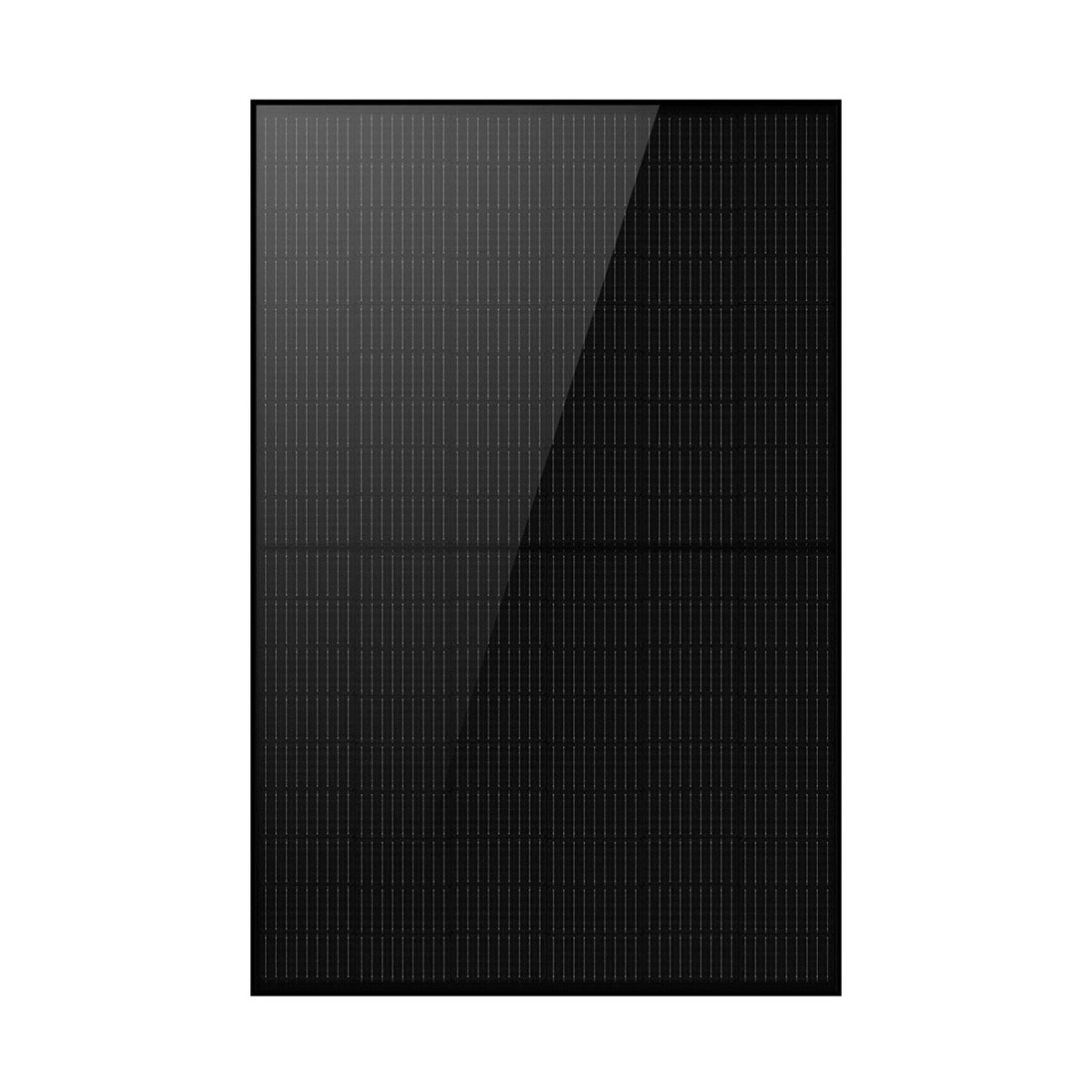

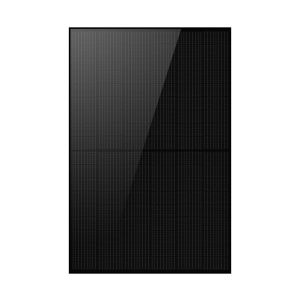

Redefined the high-efficiency module series by integrating 182mm silicon wafers with multi-busbar and half-cut cell technologies. The half-cut cells with additional multibusbar technology increase the efficiency of the cell. In this way they achieve another 2 - 2.5% more performance and can therefore offer maximum reliability. The appealing full black design completes the solar module. Solar modules are certified for use under wind and snow loads of 2400-5400 Pa. The module has a 3.2mm thick, hardened front glass with high light transmission. The frame is anodized aluminum alloy.
• 1500V Higher system voltages can effectively reduce BOS
• Lower operating temperature and temperature perature coefficient,obtain higher profit
• Significantly reduce the effect of hot spot temperature and shadow shielding
• Half-cut design for better mechanical load performance
• Ease of use in more demanding environments
Multi-busbar technology
Busbars are located on each PV module. These are the busbars that are permanently printed on each power cell. They absorb the direct current generated and direct it to the busbars. By using more busbars, Longi has reduced shading, shortened transmission paths and lowered resistance in the modules.

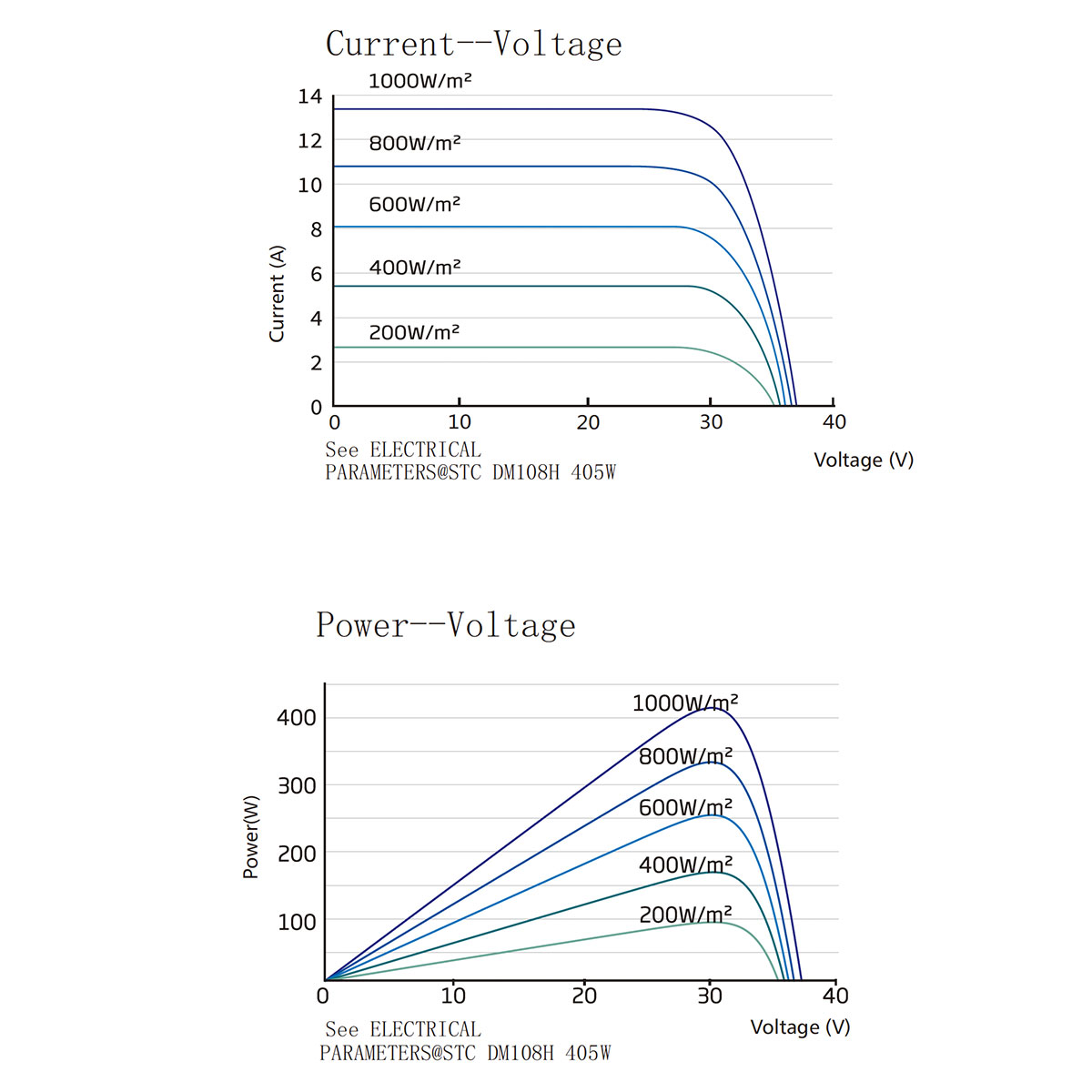

ELECTRICAL PARAMETERS
Max. Power Output Pmax: 400 Wp;
Power Tolerance: 0~+3 %;
Max. Power Voltage Vmp: 30,42 V;
Max. Power Current Imp: 13,15 A;
Open Circuit Voltage Voc: 36,98 V;
Short Circuit Current lsc: 13,78 A;
Module Efficiency: 20,48%
ELECTRICAL PARAMETERS
Max. Power Output Pmax: 298 W;
Max. Power Voltage Vmp: 28,42 V;
Max. Power Current Imp: 10,47 A;
Open Circuit Voltage Voc: 34,9 V;
Short Circuit Current lsc: 11,13 A
TEMPERATURE COEFFICIENT
Temperature Coefficients of Pmax: -0,32%/°C;
Temperature Coefficients of Voc: -0,26%/°C;
Temperature Coefficients of lsc: +0,054%/°C

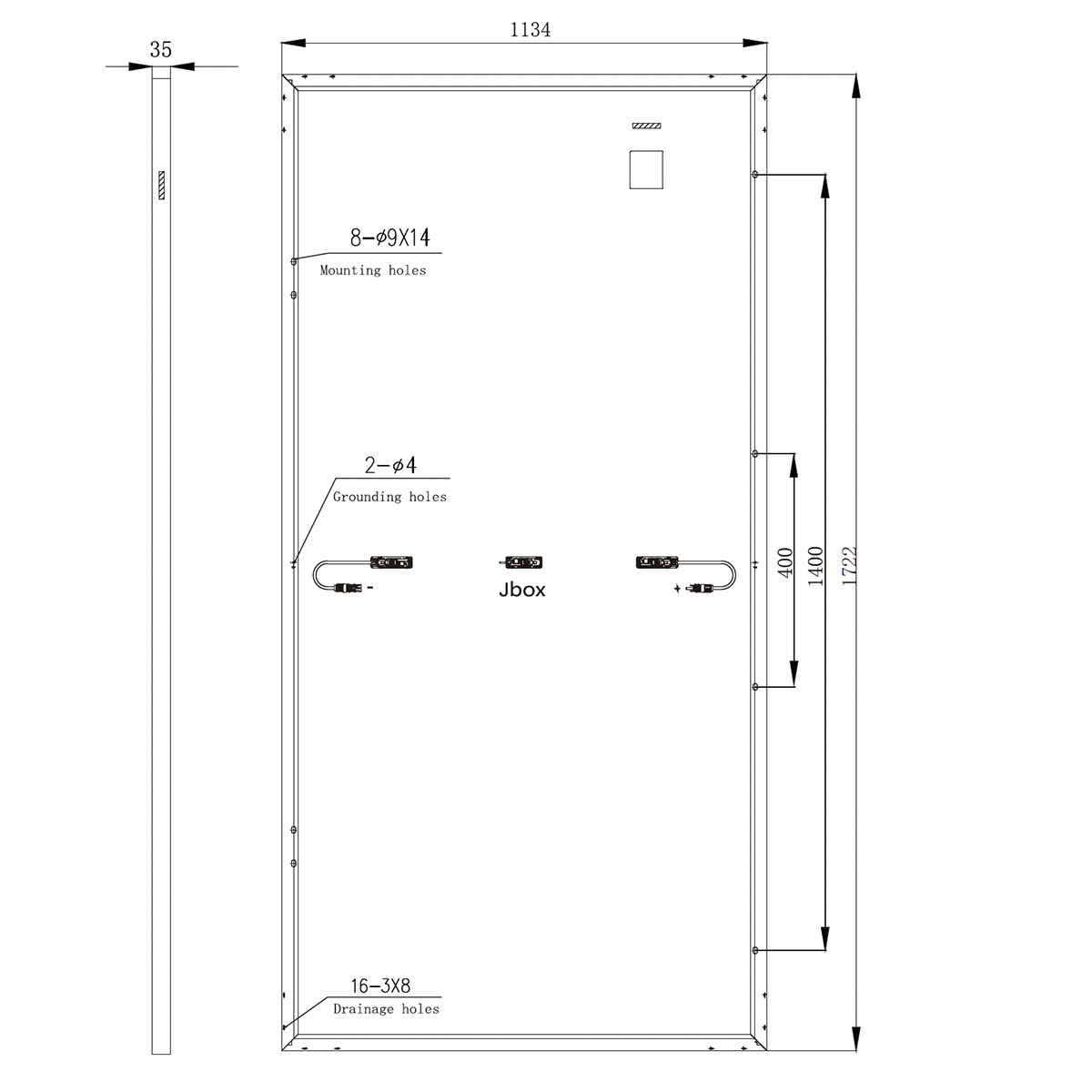

MECHANICAL PARAMETERS
Cell Type: Mono 182x91 mm;
Number of Cells: 108 pcs (2x(6x9));
Dimensions ( L*W*H ): 1722x1134x35 mm;
Weight: 22 kg;
Frame: Anodized Aluminum;
Junction Box: IP68;
Cable, Length: 4 mmq/350 mm
OPERATING CONDITION
Maximum System Voltage: 1500 V (DC);
Operating Temperature: -40~+85;
Max. Wind Load / Snow Load: 2400/5400;
Max. Over Current: 25A;
Application Class: Class A;
Fire Rating: Class C;
NMOT: 42±3 °C.
Minimum purchase 8 pieces.
