ECHOMAP UHD 72cv Chartplotter with GT24UHD-TM Transducer
Garmin 010-02333-01

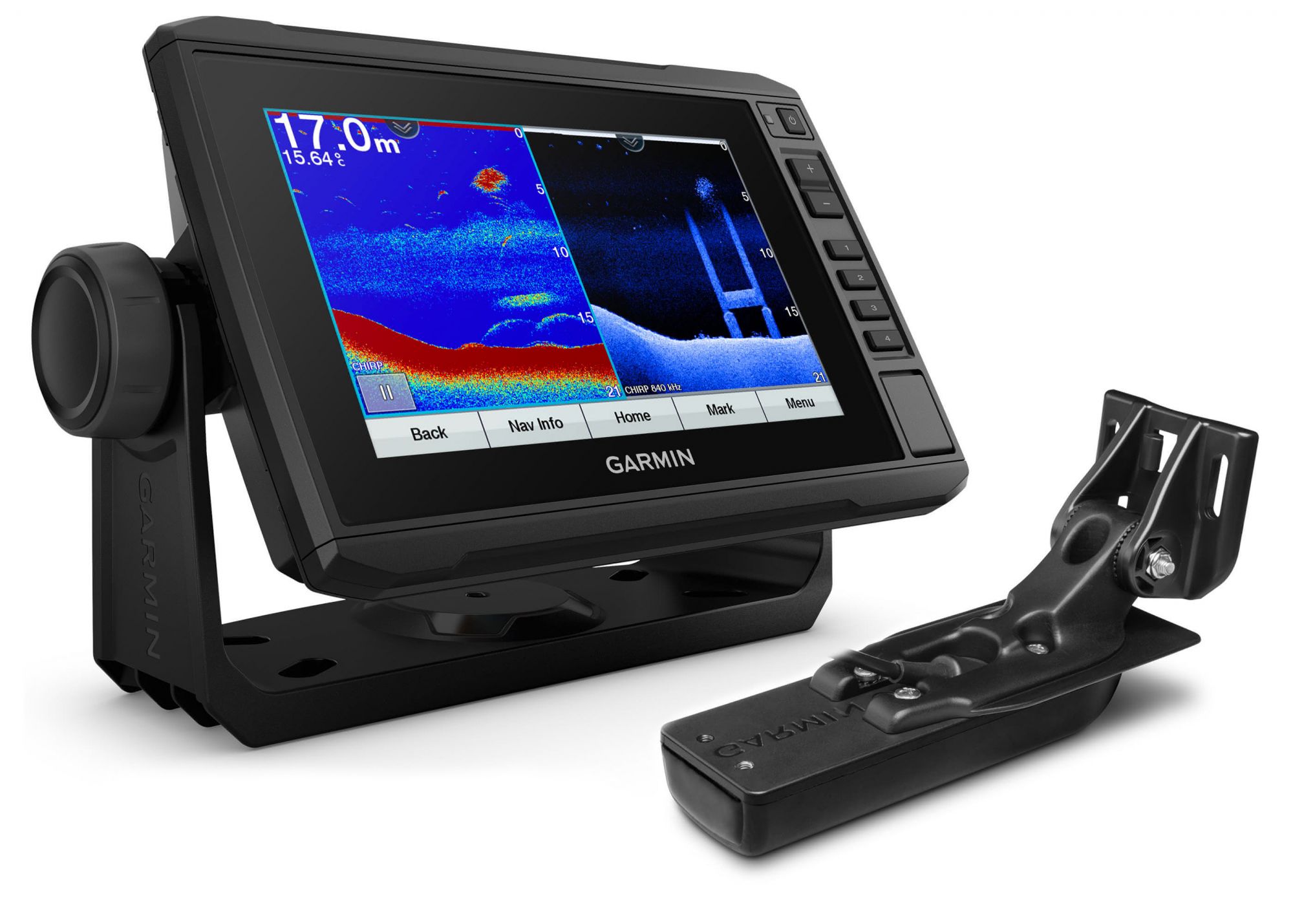

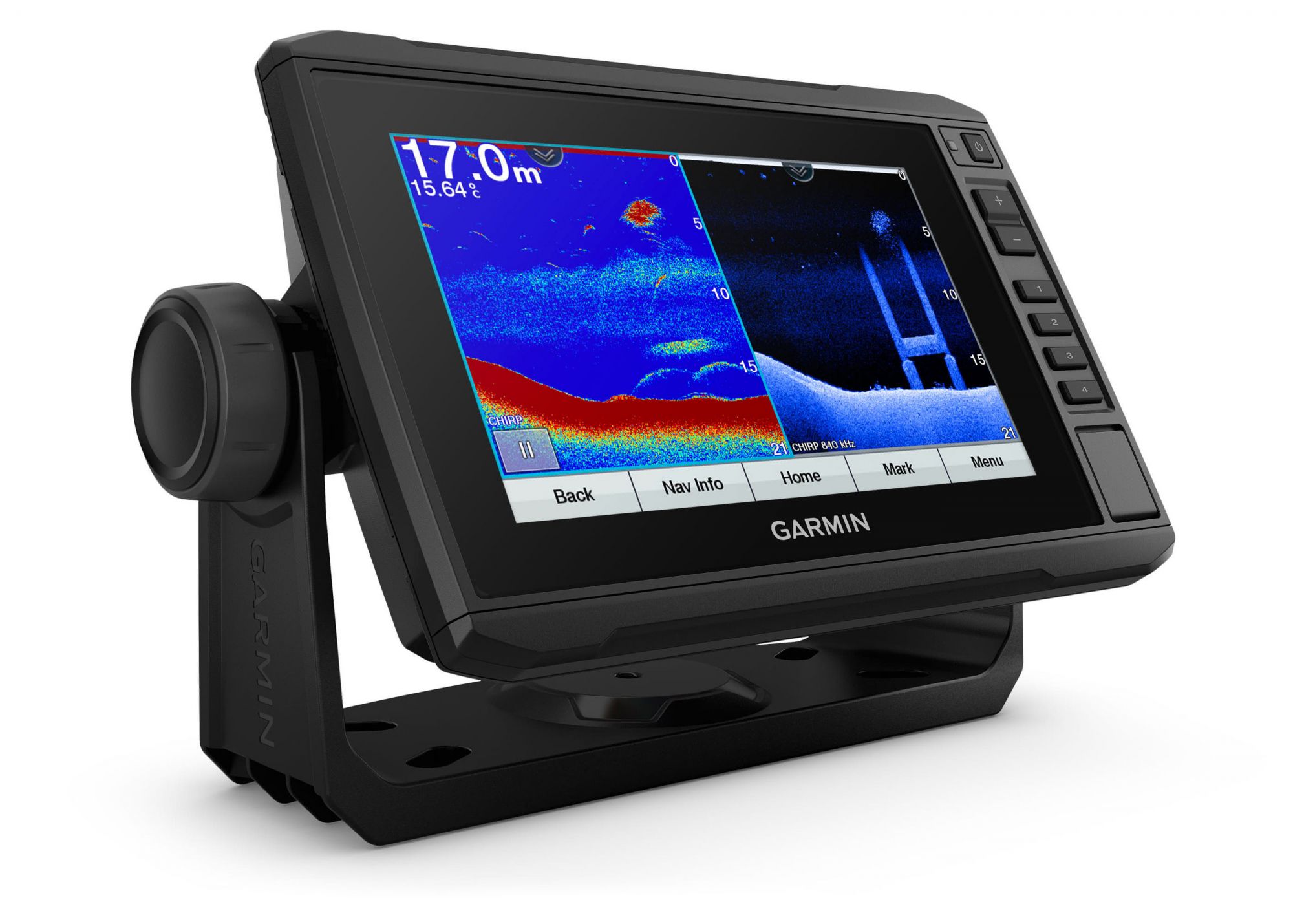

The ECHOMAP UHD 72cv Chartplotter with GT24-UHD-TM transducer is easy to read even in direct sunlight. Featuring a 7" touch screen and a quick-release bail mount.

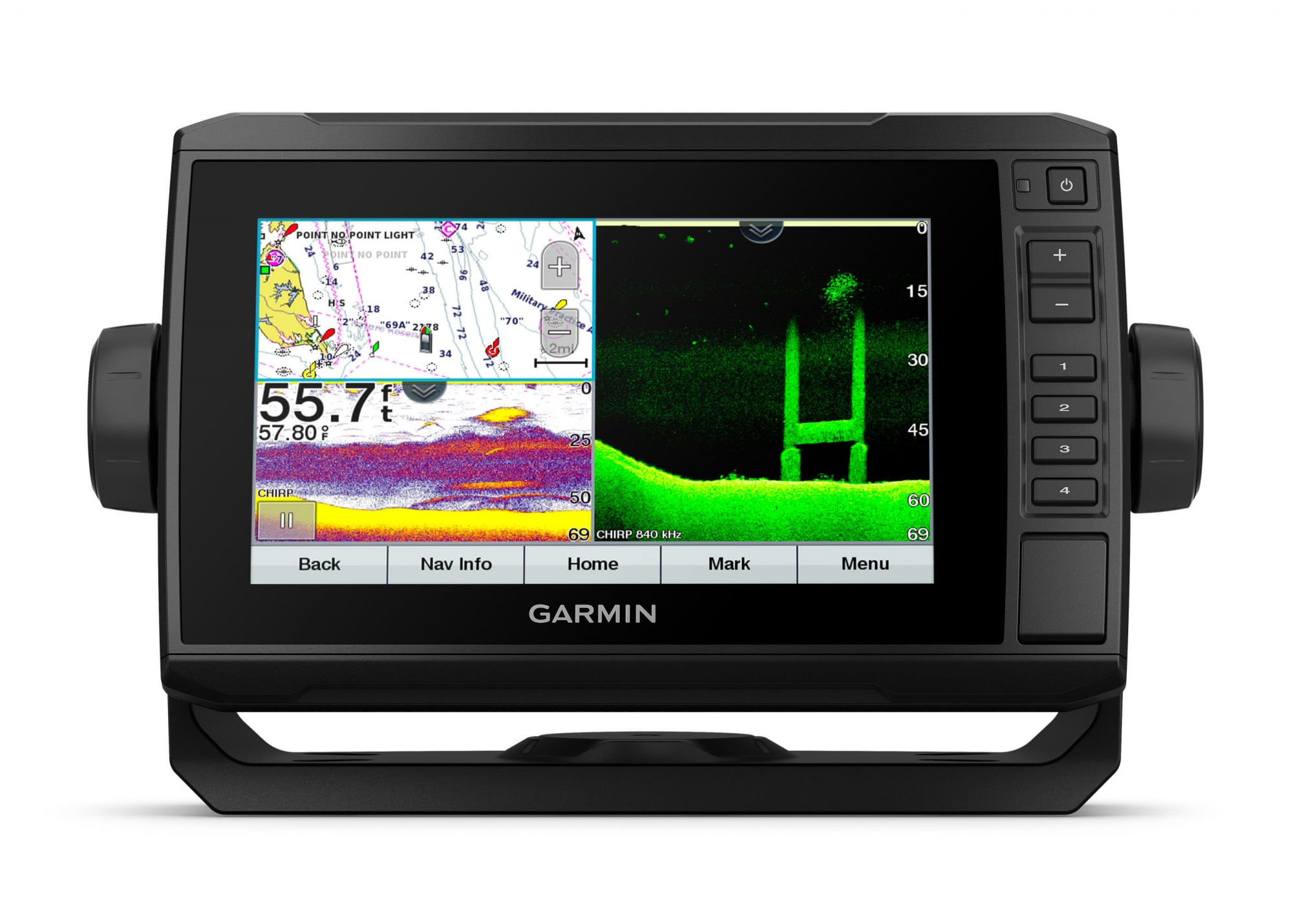

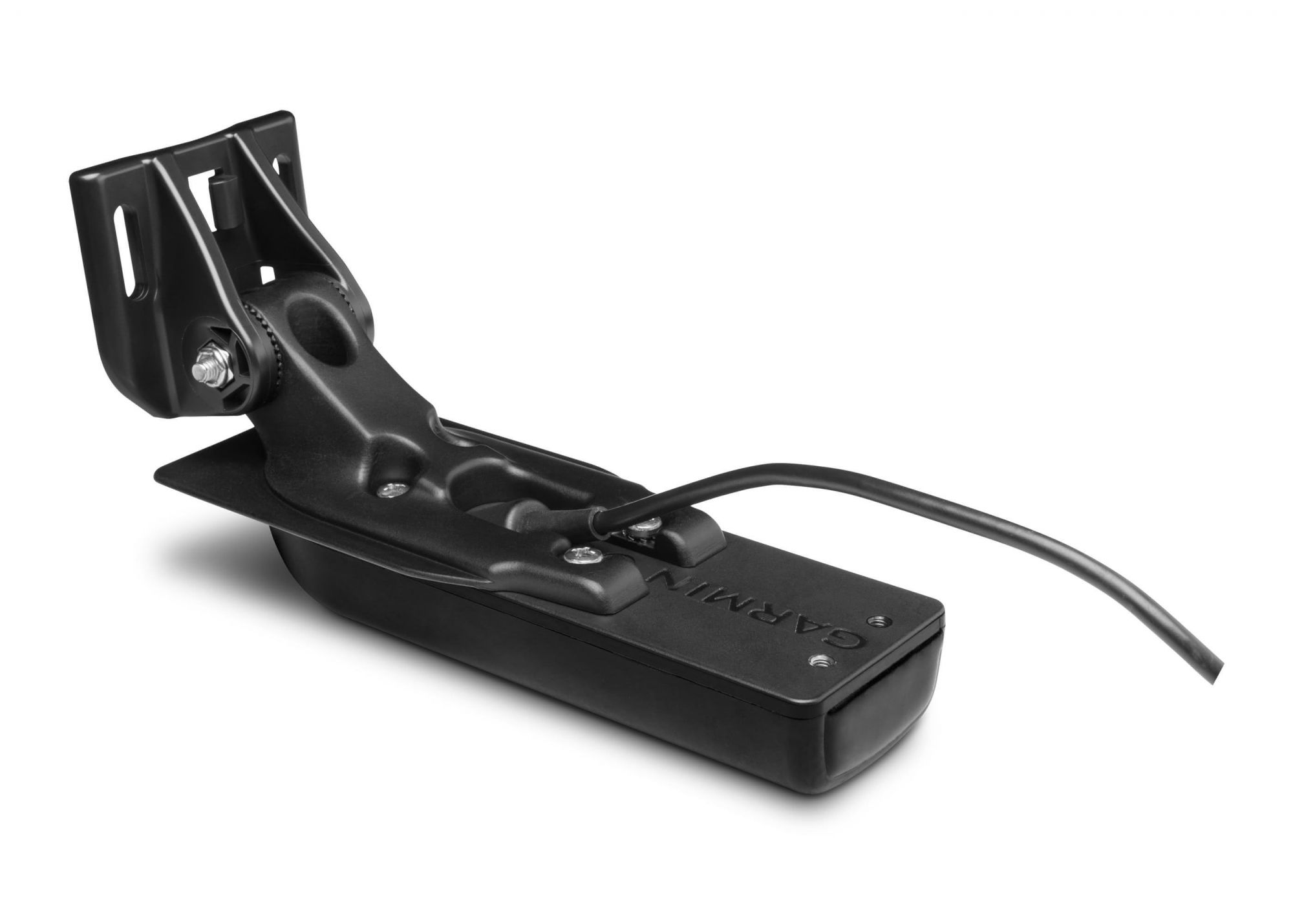

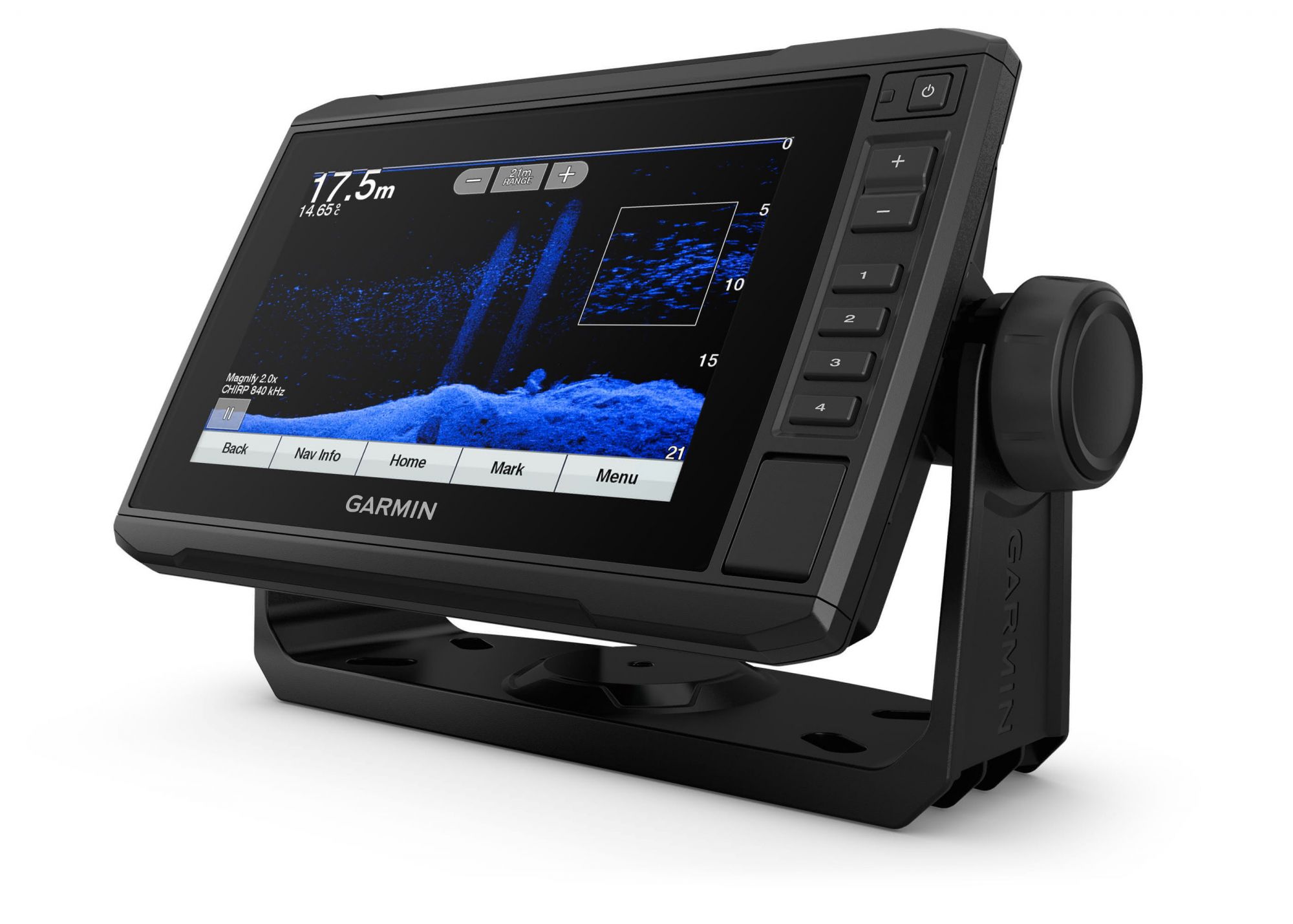

The included transducer delivers crystal clear images via Ultra-HD ClearVü as well as traditional High-Wide CHIRP sonar images with highly detailed underwater structures.

BLUECHART G3 VISION NAUTICAL CHARTS
Get excellent coverage and great detail with BlueChart g3 Vision nautical charts with integrated content from Garmin and Navionics (optional).

QUICKDRAW CONTOURS
Create your own fishing maps with 30 cm (1 foot) contours and use them yourself or share with the QuickDraw community through Garmin Connect.

NETWORK CAPABLE
If you have several compatible ECHOMAP UHD or ECHOMAP Ultra devices on board, you can display sonar data, user information and maps on multiple screens.

NMEA2000 AND NMEA0183 COMPATIBLE
Connect to autopilots, digital switching, weather data, the FUSION Link audio system, media, VHF, AIS, and more with a single screen.

ACTIVECAPTAIN APP
Connect your device to Wi-Fi and link it to the free mobile ActiveCaptain app. This gives you access to the OneChart feature, Smart Notifications, software updates, Garmin Helm, Garmin Quickdraw community, and more.

Compatible with Force Trolling motor
With this function you can control one of the most powerful and efficient electric boat motors, navigate to waypoints, follow tracks and more.

Specifications
Dimensions: 25 x 13.9 x 5.1 cm;
Screen size, WxH: 15.5 x 8.6 cm; 17.8 cm (7.0") in diagonally;
Screen resolution, WxH: 400 x 800 pixels;
Screen Type: WVGA;
Weight: 0.77 kg;
Waterproof classification: IPX7;
Mounting options: Bracket or recessed;
Power Consumption: 15W;
GPS antenna: Internal or external on the NMEA 2000 network;
Transmission power: 500W (RMS) / 4,000W (peak to peak);
Receiver: 5 Hz;
Garmin Marine Network ™ ports: 1 Panoptix ™ port.
Maps and memory
Preloaded cartography: World base map;
External Memory: 1 microSD ™ card; with maximum capacity 32 GB;
Waypoints: 5,000;
Track log: 50,000 points; 50 saved tracks;
Routes that can be stored: 100.
Functions for outdoor activities
Tide data: yes.
Functions of the chartplotter
Garmin Black Box Compatible: Yes;
Compatible with AIS function: yes;
Compatible with DSC function: yes.
Echosounder features and specifications
Double frequency: yes;
Double cone: yes;
ClearVü: Yes with CHIRP (built-in);
Maximum depth:
- 700 metres @ 77 kHz, freshwater
- 335 metres @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
Zoom: yes;
Water temperature data and graph: yes;
Registration: yes;
Historical: yes.

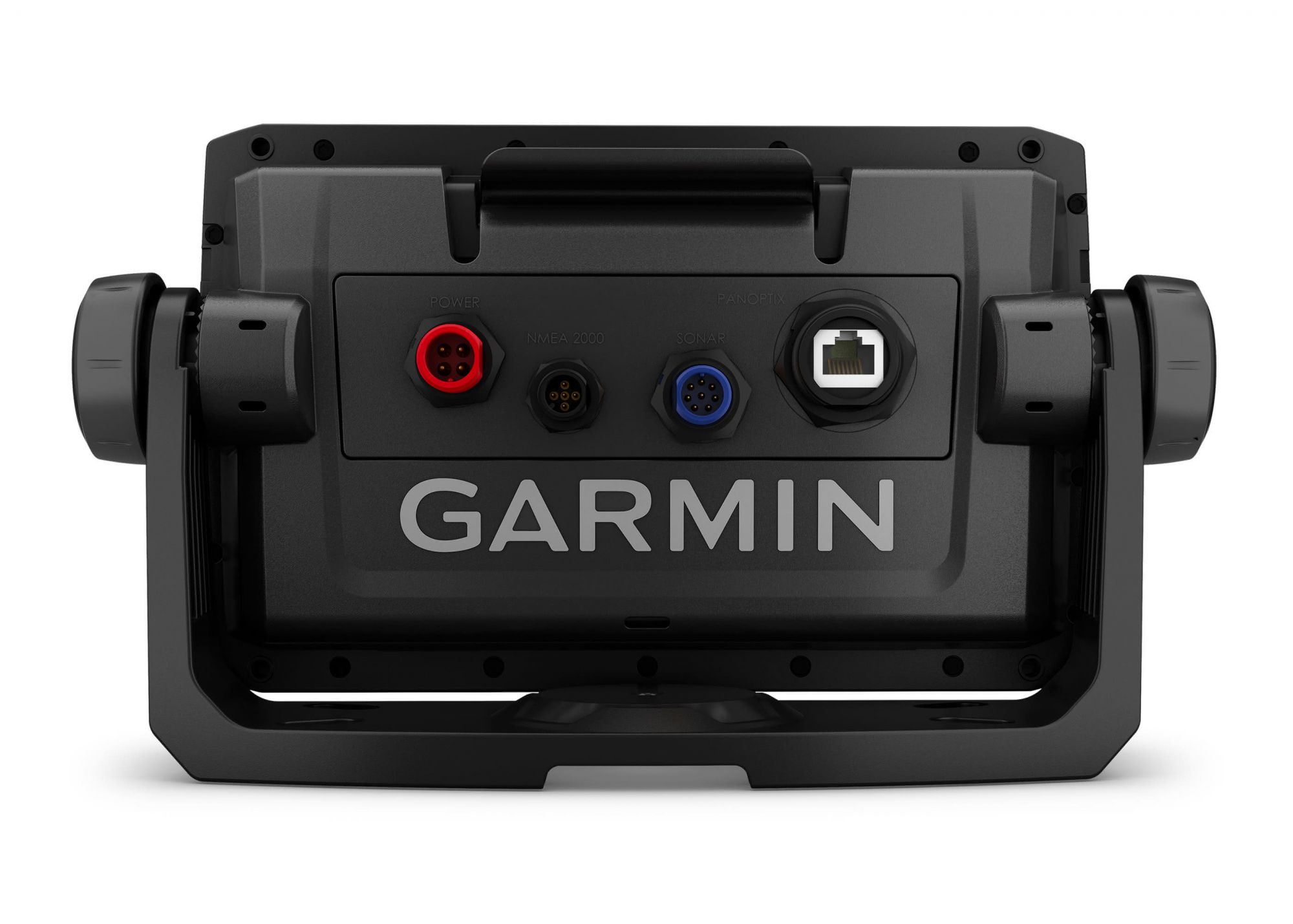

Connections
NMEA 2000® compatible: Yes;
Number of transducer pins: 8;
NMEA 0183 input ports: 1;
NMEA 0183 output ports: 1;
Wireless Connectivity: No.

Delivery contents
- ECHOMAP UHD 72cv with world base map;
- GT24UHD-TM transducer;
- Charging/data cable;
- Tilt/swivel bracket with quick release base;
- Flush mounting;
- Protective cover;
- Hardware;
- Documentation.

Note: It is not possible to mirror the Echomap display to a mobile device. This function is only available on the GPSMAP series.
