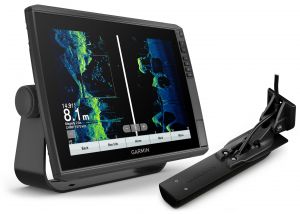

ECHOMAP Ultra 122sv Chartplotter/Sonar combo with GT56-UHD-TM Transducer
Garmin 010-02528-01

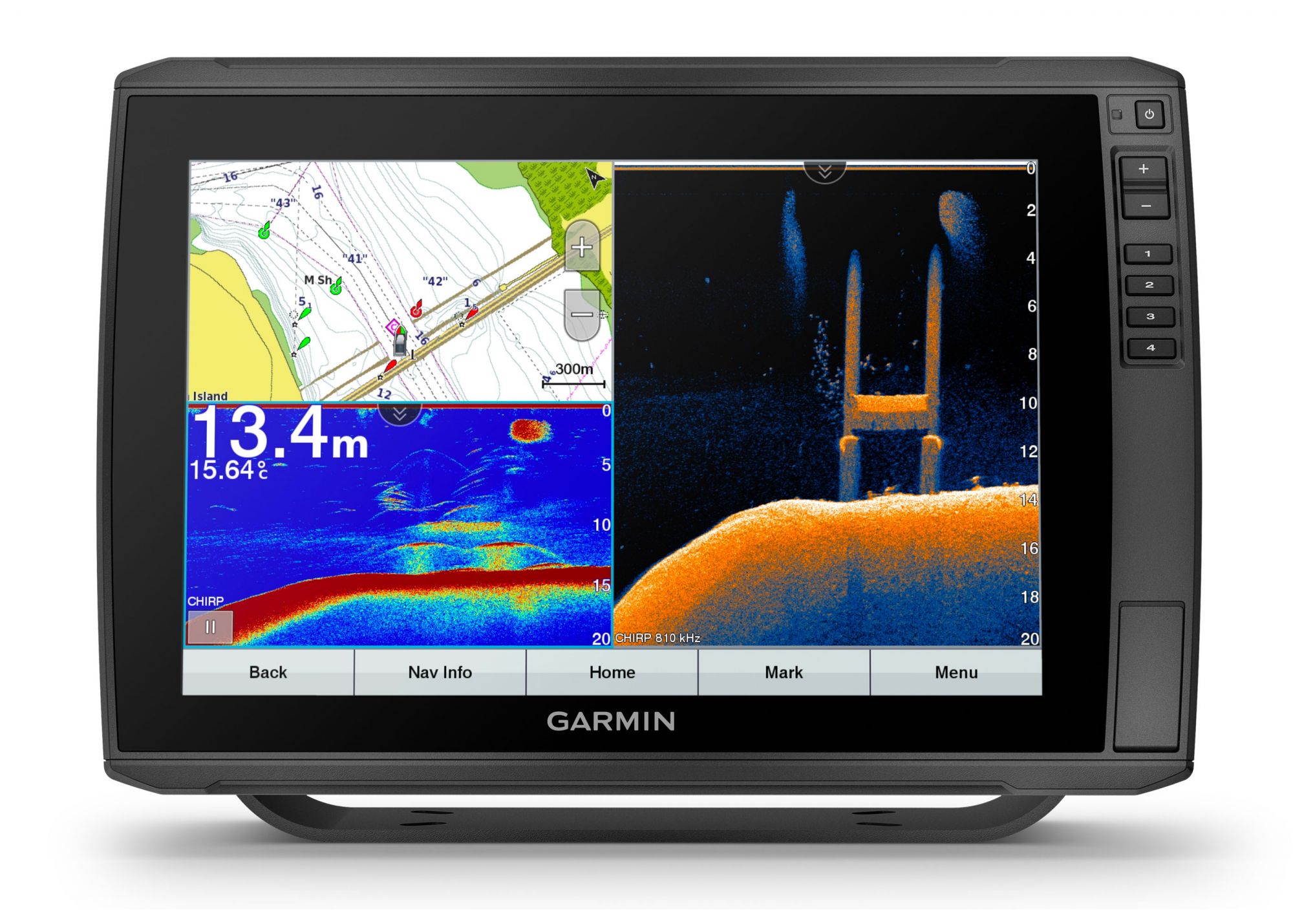

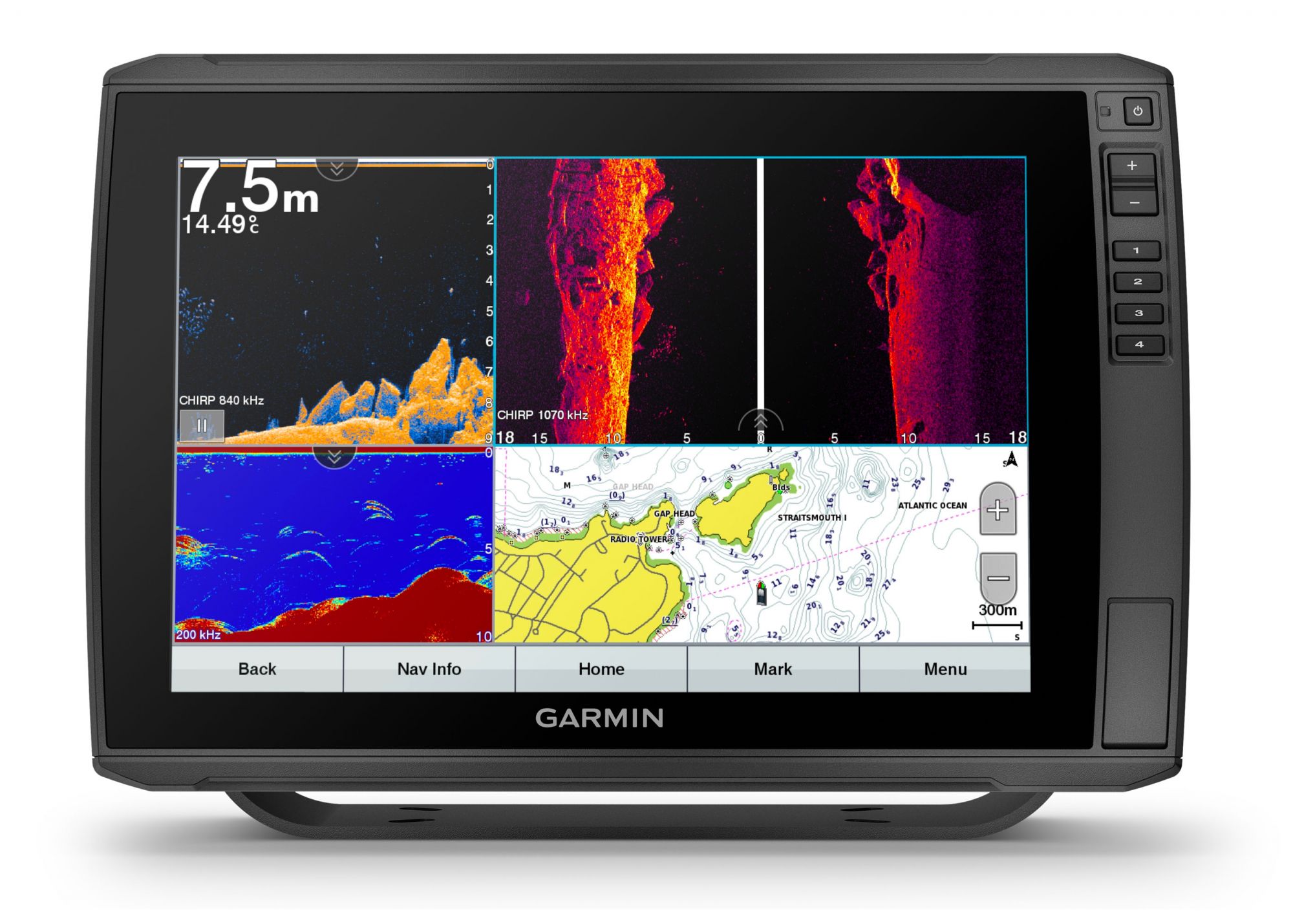

The sunlight-readable 12 inch touchscreen chartplotter/sonar combo features our worldwide basemap, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
• The keyed-assist 12 inch touchscreen puts fishfinding know-how at your fingertips.
• See crisp images of structure and fish in stunning detail.
• Navigate confidently with optional BlueChart® g3 charts (sold separately).
• Manage your marine experience from nearly anywhere with the ActiveCaptain® app1.
• Connect your boat to share data, sonar and charts with your other compatible devices.
• Explore your new favourite spot; create maps on the fly, and tailor them to fit your needs.
LIVESCOPE™ SONAR SUPPORT
ECHOMAP Ultra 122sv supports a variety of Garmin transducers, including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system (sold separately).
BUILT-IN UHD SONAR

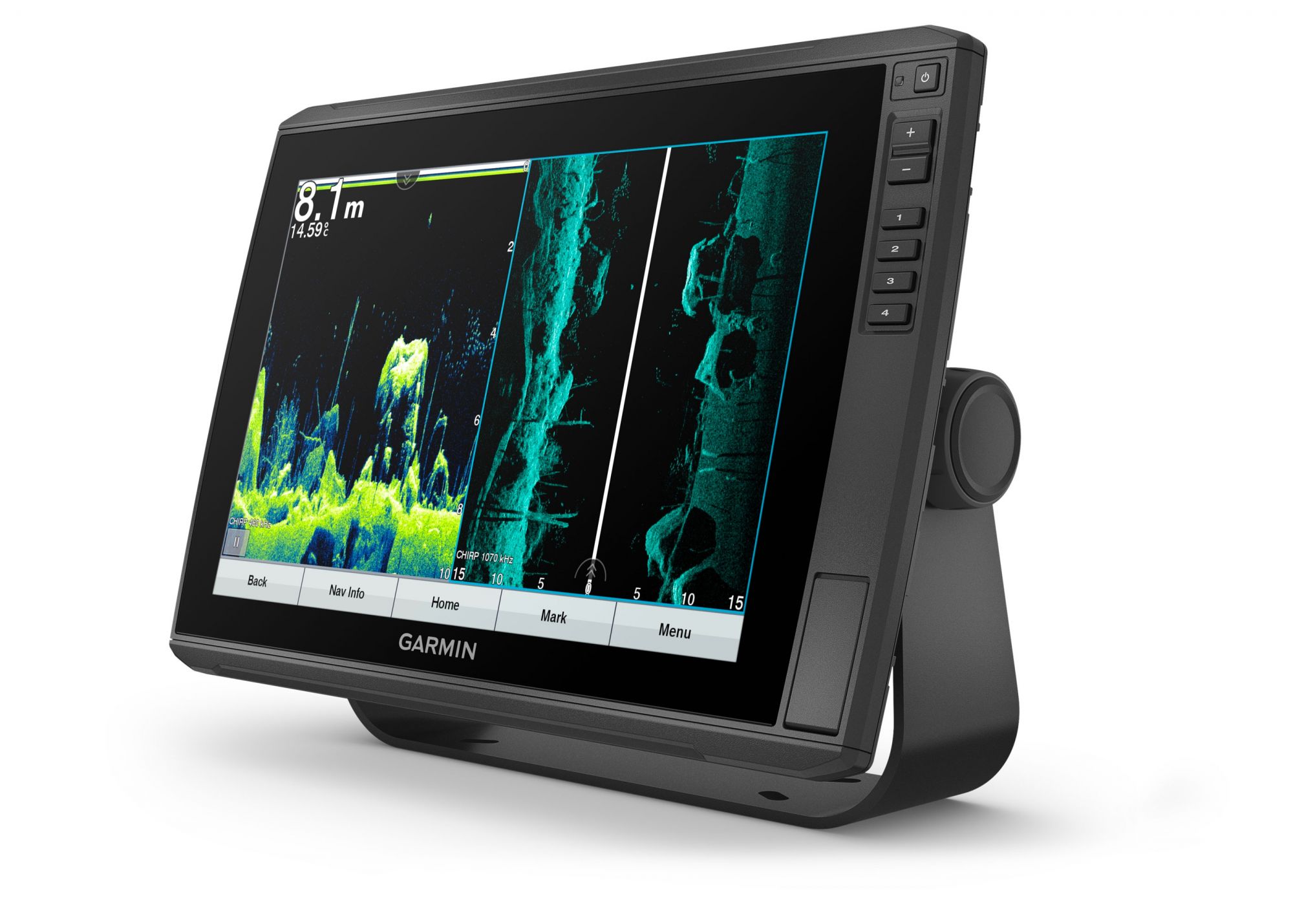

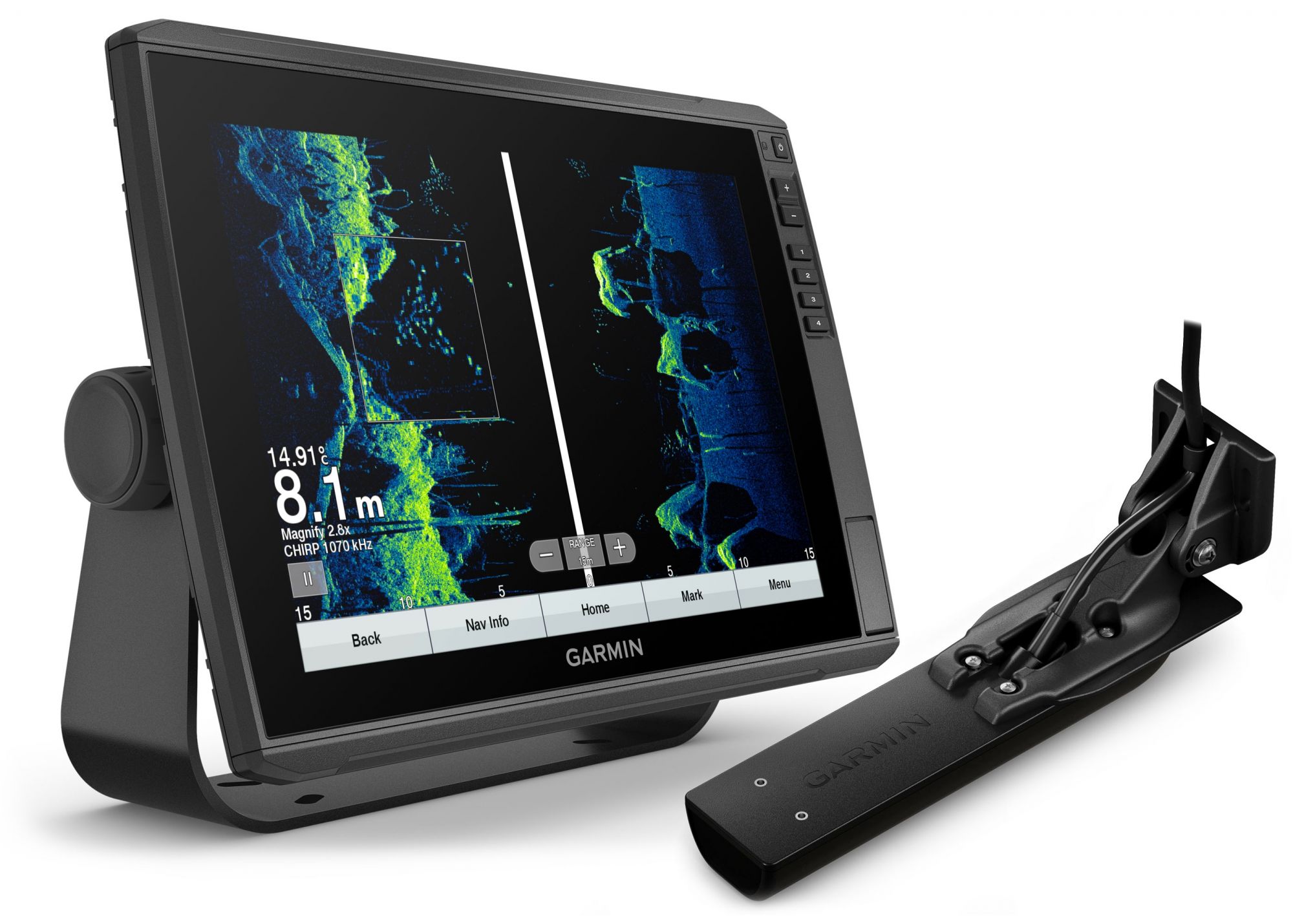

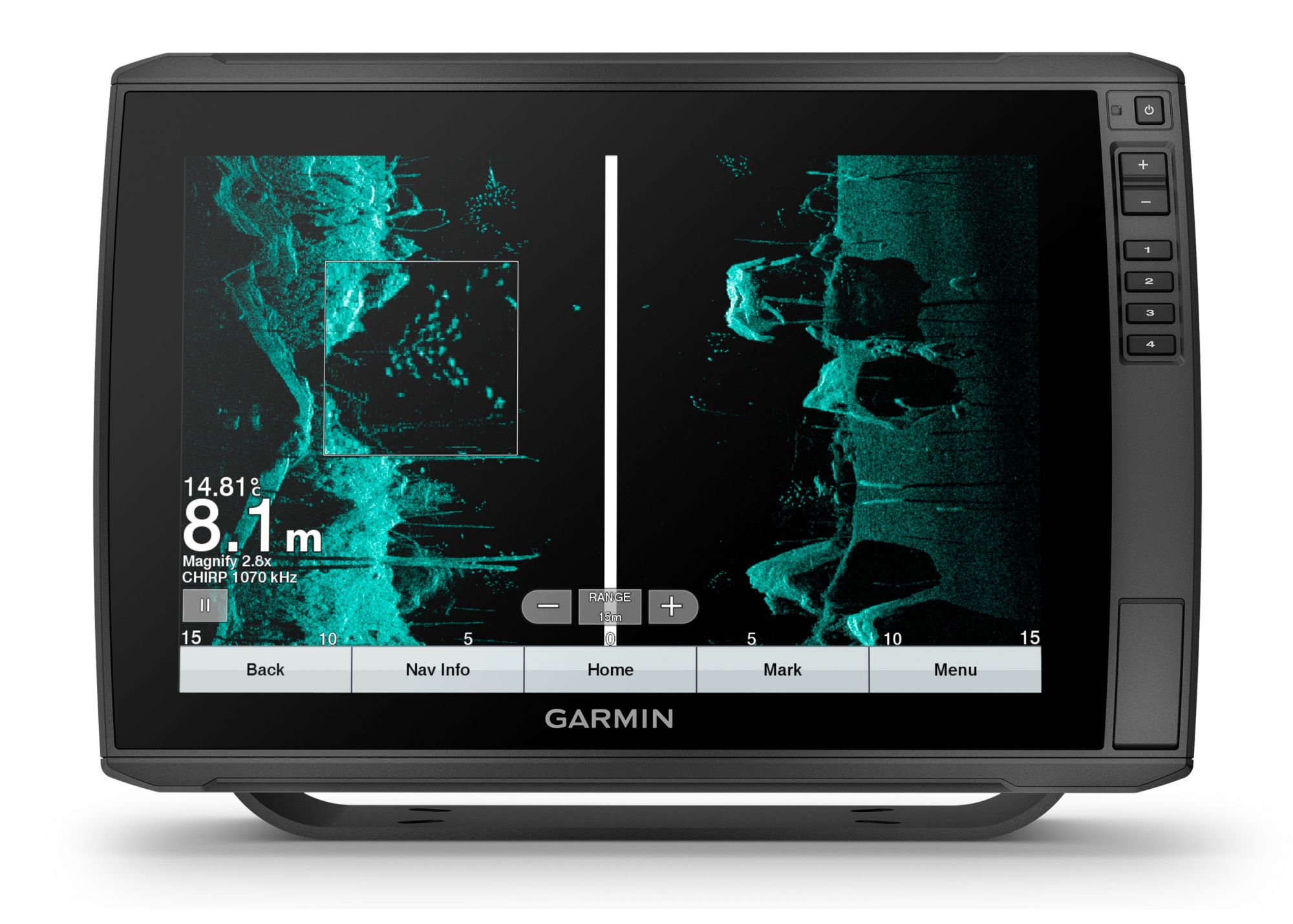

The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.
VIVID COLOUR PALETTES
High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
ADD CHARTS
Experience unparalleled coverage and detail with optional BlueChart g3 with integrated Navionics® data and Auto Guidance2 technology.
QUICKDRAW CONTOURS
Create personalised fishing maps on-screen with a 0.3 metre contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app3.
Specifications
Dimensions: 13,4 x 9,0 x 3,9 (34,1 x 22,9 x 9,8 cm);
Screen size, WxH: 10,3" x 6,4"; 12,1 in diagonally (26,1 cm x 16,3 cm; 30,7 cm in diagonally);
Screen resolution, WxH: 1280 x 800 pixels;
Screen Type: WXGA;
Weight: 5,5 libbre (2,5 kg);
Waterproof classification: IPX7;
Mounting options: Bracket or recessed;
Polarized support: Yes;
Power Consumption: 26W;
GPS antenna: Internal or external on the NMEA 2000 network;
Transmission power: 600W (RMS) / 4,000W (peak to peak);
Receiver: 10 Hz;
Garmin Marine Network™ ports: 2 (large connector).
Maps and memory
External Memory: 2 microSD™ cards;
Waypoints: 5,000;
Track log: 50,000 points; 50 saved tracks;
Routes that can be stored: 100.
Functions for outdoor activities
Tide data: √.
Functions of the chartplotter
Garmin Sonar compatible: Yes;
Supports AIS (tracks target ships position): √;
Supports DSC (displays position data from DSC-capable VHF radio): √;
Supports FUSION-Link™ compatible radios: √;
GCV™ Black Box sonar support: √;
ActiveCaptain compatible: Yes.
Echosounder features and specifications
Dual-frequency (50/200 kHz) sonar capable √;
Dual-beam (77/200 kHz) sonar capable: √;
Frequencies supported:
- CHIRP High-Wide: 150-240 kHz
- Ultra High-definition ClearVü: 800 kHz (760-880 kHz)
- CHIRP ClearVü: 455 kHz (425-845 kHz)
- Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz)
ClearVü: Yes with CHIRP (built-in);
Maximum depth: 2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water);
Bottom lock (shows return from the bottom up): √;
Water temperature log and graph: √;
Sonar recording: √;
Sonar history rewind: √.

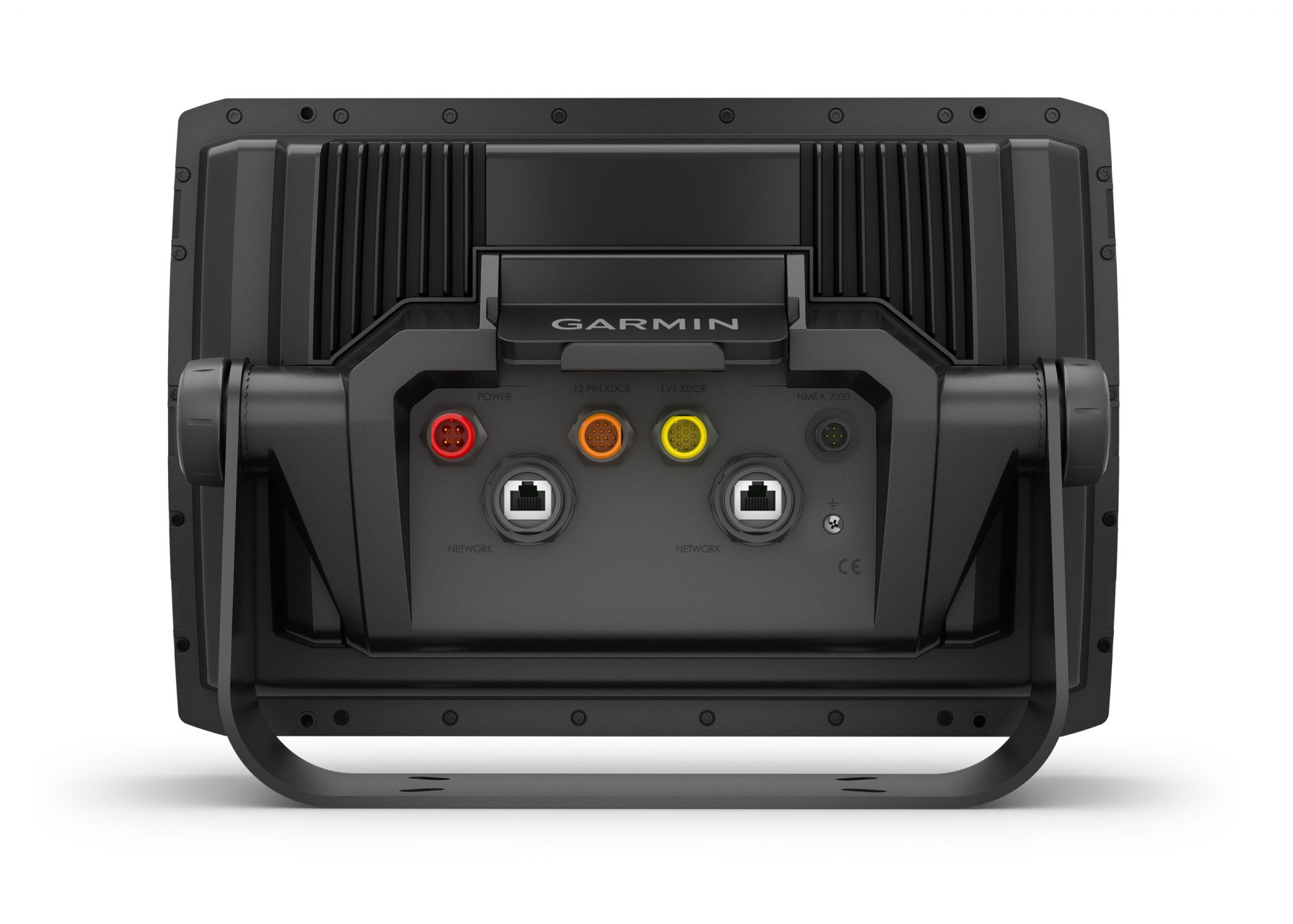

Connections
NMEA 2000® compatible: √;
Number of transducer pins: 1 – LVS sonar, 1 – 12 pin scanning sonar;
NMEA 0183 input ports: 1;
NMEA 0183 output ports: 1;
Wireless Connectivity: √.
Delivery contents
- ECHOMAP Ultra 122sv with world base map;
- GT56UHD-TM transducer;
- Charging/data cable;

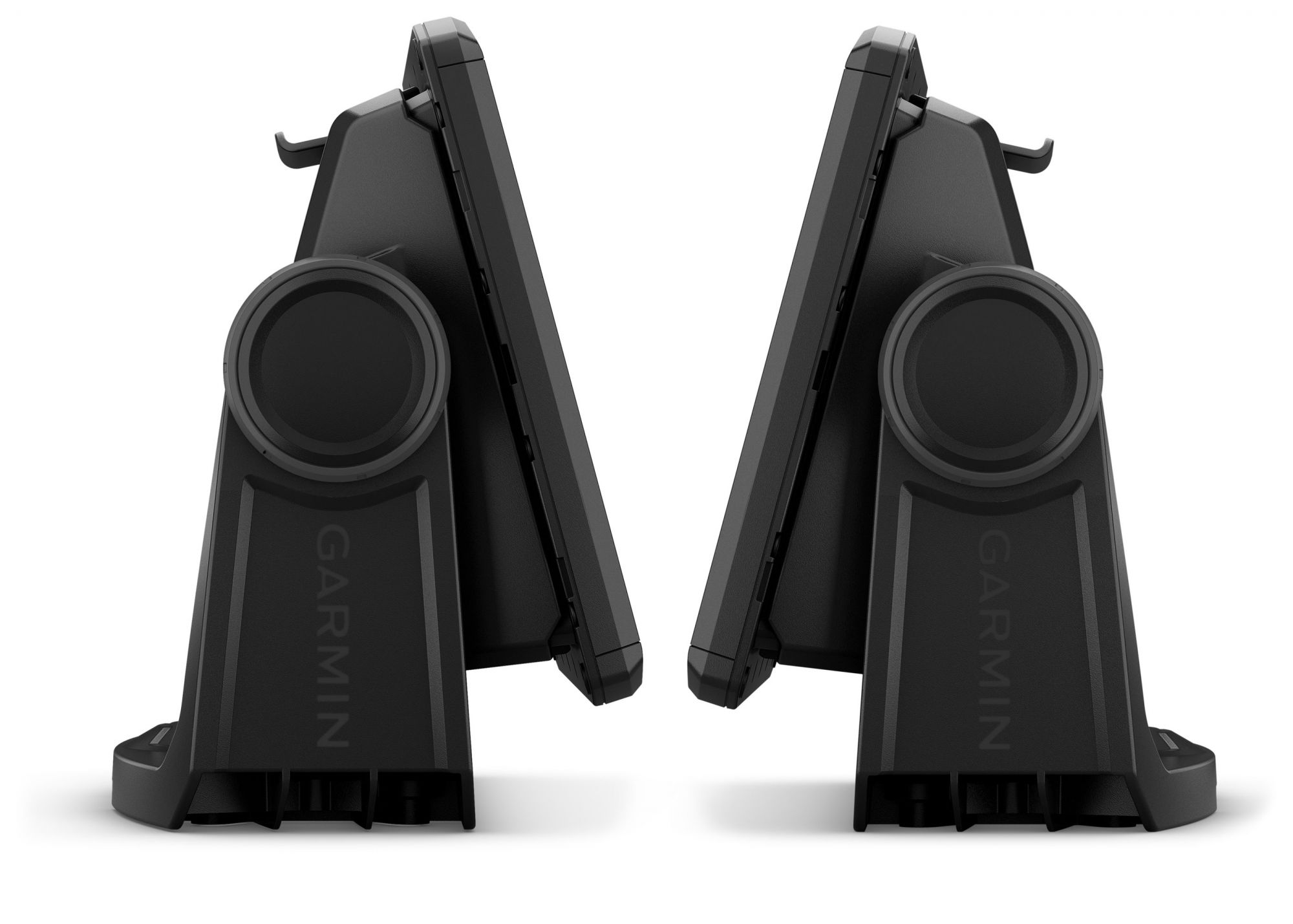

- Tilt/swivel bracket with quick release base;
- Flush mounting;
- Protective cover;
- Hardware;
- Documentation.
