The Glomex TV satellite antennas are refurbished in technology and performance with the introduction of DVB-S2 technology: the Second Generation of Digital Video Broadcasting. This new technology allows to receive the SAT TV signal in perfect quality and to watch all FULL HD TV channels.

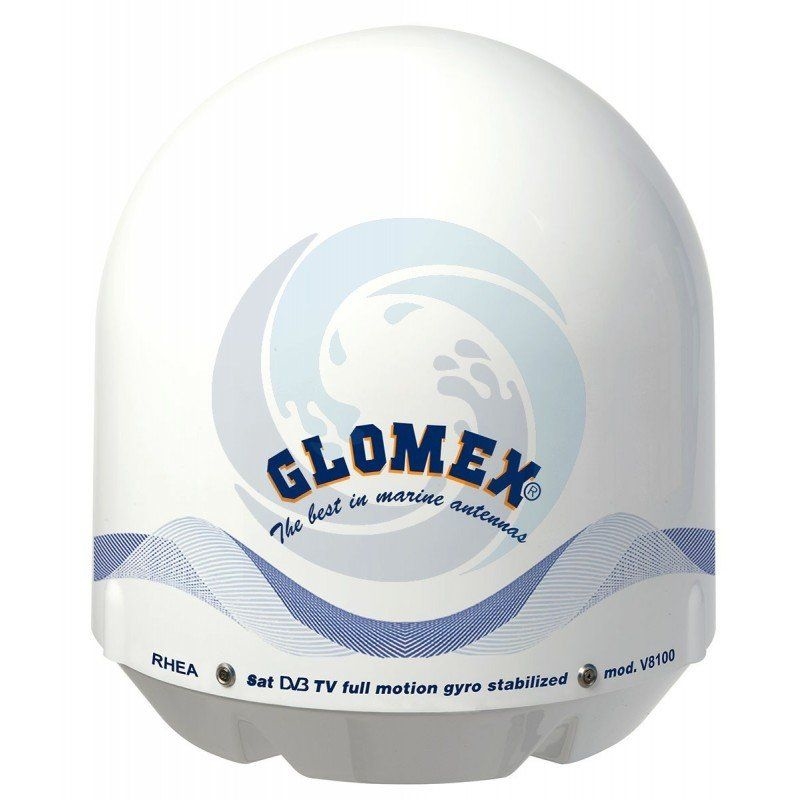

Rhea is the new Glomex satellite TV antenna developed to offer the best performance in receiving HD TV signals thank to a 470mm (18”) parabolic dish and low energy consumption (12 Vdc – 1,5 A/h). V8100S2 is a gyrostabilized antenna, equipped with a new HPD (High Performance Dish) parabolic dish combined with the new software for signal research and the innovative noise reduction system STO (Silent Tracking Operation). Rhea is characterized by new mechanic and electronic elements. The antenna have an elevation range (-9° / +81°) developed to increase its reception of satellite TV signals even in North Europe. Moreover, the new electronic elements allow the compensation of quality losses due to satellite multiplication on the terrestrial orbit whilst transmitting on frequency and ensure a total silence factor. Easy to install, thanks to a single coaxial cable (SCC) connecting the antenna directly to the TV-set. Rhea, with its 3 preloaded satellites (ASTRA1, ASTRA2, HOTBIRD) easy selectable on the control unit, can be swiftly updated by downloading new satellites or free software updates directly on www.glomex.it.
SUPPLIED ACCESSORIES:
CONTROL UNIT 12V WITH 3 PRELOADED SATELLITES: HOTBIRD 13°E, ASTRA 1 19°E, ASTRA 2 28°E
10 M (33') COAXIAL CABLE
1,5 M (5') COAXIAL CABLE (2 pcs)
HIGH THICKNESS SYNTHETIC RUBBER GASKET
TECHNICAL SPECIFICATIONS:
TECHNOLOGY: DVB-S2
ANTENNA DISH DIAMETER: 470 mm (18'')
RADOME DIMENSIONS: 500 x 560 mm (20x22'')
ANTENNA WEIGHT: 8 kg (17,6 lb)
TRACKING RATE: 50° sec
ANTENNA GAIN: 35 dB (12 GHz)
DISH TYPE: Prime Focus + HPD
POLARIZATION: Linear (H + V)
LNB FREQUENBCY RANGE: 10,7 - 12,75 GHz LNB universal
RADOME TYPE: U.V. resistant
POWER REQUIREMENT: 12 Vdc (1,5 Ah)
OPERATING TEMPERATURE RANGE: -20° +55°
AZIMUTH TURN RANGE: Unlimited
FULL ELEVATION RANGE: -9° / +81°
TYPE OF STABILIZATION: gyro on 2 axis + 3° axis by interpolation
SATELLITE IDENTIFICATION: NIT (Network Information Table)
MIN EIRP: 49 dBW
FUTURE UPGRADES READY: Yes
DECODER OUTPUT: 1 output
AUTOSKEW OPTION: No
CONTROL UNIT: 3 satellites loaded: ASTRA1 19°E - ASTRA2 28°E - HOTBIRD 13°E
