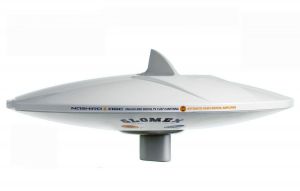

Glomex TV + AM-FM Radio Nashira V9112AGC Antenna #MT5637004

Glomex TV + AM-FM Radio Nashira V9112AGC  Antenna #MT5637004

Glomex TV + AM-FM Radio Nashira V9112AGC Antenna #MT5637004

Omnidirectional Glomex V9112AGC Nashira TV antenna for analog/digital TV signals. Can be set up to max 2 TV devices. Frequency 40/890MHz - Impedence 75 Ohm - Universal power supply 12/24V. Complete with 20 m coax cable and TV set cord.
Price:
€278.16
Listing:
You Save:
(%)

Description

Glomex TV + AM-FM Radio Nashira V9112AGC  Antenna

Nashira evolves in Nashira AGC to make your life easier and more comfortable with the new and innovative automatic gain control amplifier.
Thanks to the new amplifier you have only to turn on the TV, stay comfortably seated on the sofa and enjoy your favourite programs;
Nashira AGC (diameter: 37 cm / 14") will adjust by itself the gain of the TV signal to ensure the best possible reception of television broadcasts.
With conventional amplifiers, in fact, you have to manually adjust the TV signal gain by lowering the amplification when the signal is high and by increasing the amplification when the boat is at sea and far from the TV transmitter. With the new Nashira AGC, everything will happen automatically and the innovative amplifier can be placed in a hidden location inside the boat. This innovation increases the Nashira key points that have allowed Nashira to be the best-selling marine DVB-T and DVB-T2 TV antenna in the world for more than 30 years: its always appreciated essential style, aerodynamic lines with the “shark fin” (55mm/2.2” high) for receiving the vertically polarized TV signals, reinforced base to ensure maximum stability of the antenna in any condition of navigation, compact size (370 mm/14” diameter) and high quality construction materials. If matched with a 2-way splitter (code: V9147, optional) installed between the antenna and the amplifier, it can also receive AM-FM radio frequencies.
Nashira is the ideal solution for any type of boats: sailboat and motorboats

SUPPLIED ACCESSORIES:
50023/14 AUTOMATIC GAIN CONTROL AMPLIFIER
20 M (66') COAXIAL CABLE to connect the antenna with the amplifier
1,5 M (5') SED CORD to connect the amplifier to the TV / Decoder
V9144  F-MALE GOLD PLATED CONNECTOR

Technical Specifications:
ANTENNA DIAMETER: 370 mm (14'')
ANTENNA HEIGHT: 185 mm (7'') [240 mm (9.5") with shark fin]
BASE DIAMETER: 25 mm (16'')
ANTENNA WEIGHT: 900 g (31,74 oz) [975 g (34,39 oz) with shark fin]
RADOME MATERIAL: U.V. resistant ASA
ANGLE OF RECEPTION: 360°
POLARIZATION: Horizontal / Vertical
IMPEDANCE: 75 ohms
FREQUENCY RANGE: 40/890 MHz
GAIN AVERAGE: 27,5 dB
NOISE FACTOR: 2,1 dB
POWER CONSUPTION: 20 mA
POWER SUPPLY: 12/24 Vdc
ANTENNA AMPL/BY PASS: Yes
ADJUSTABLE GAIN: Yes
TV SET MAX: 2
TERMINATION: F female
CONNECTOR SUPPLIED: F male gold plated connector (V9144)
A/B SWITCH: No
