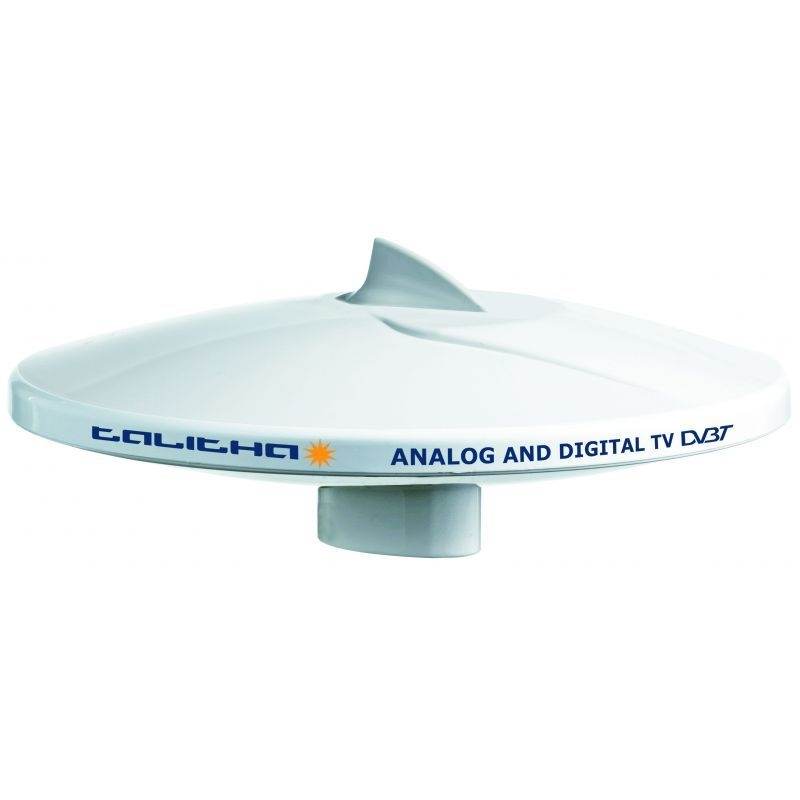

Talitha is the Omni-directional TV antenna renewed in design and performance keeping the essential style that is the ideal solution for any type of boat. V9125/12 is also characterized by compact dimensions (diameter 250mm / 10”) and high quality materials. Talitha is distinguished by an innovative design based to the new pinnacle as a “shark fin” (high 31 mm /1,2”), for receiving vertically polarized TV signals, that fits perfectly on the new radome with aerodynamic lines. Thanks to vertical pinnacle inside the “shark fin”, Talitha can receive analog or digital TV signals polarized both horizontally and vertically, thus it is the ideal solution for any type of boat, sailboat or motorboat. Talitha is equipped with the 50023/98EC amplifier allowing the adjustment of received signal’s gain intensity. If matched with a splitter V9147 (2-way, optional) installed between the antenna the antenna and the amplifier, it can also receive AM-FM radio frequencies.
SUPPLIED ACCESSORIES:
50023/98EC AMPLIFIER
20 M (66') COAXIAL CABLE to connect the antenna with the amplifier
1,5 M (5') SET CORD to connect the amplifier to the TV / Decoder
V9144 F-MALE GOLD PLATED CONNECTOR
TECHNICAL SPECIFICATIONS
ANTENNA DIAMETER: 250 mm (10'')
ANTENNA HEIGHT: 120 mm (5'') [151 mm (5.9") with shark fin]
BASE DIAMETER: 25 mm (16'')
ANTENNA WEIGHT: 350 g (12,34 oz) [405 g (14,29 oz) with shark fin]
RADOME MATERIAL U.V. resistant ASA
ANGLE OF RECEPTION: 360°
POLARIZATION: Horizontal / Vertical
IMPEDANCE: 75 ohms
FREQUENCY RANGE 40/890 MHz
GAIN AVERAGE: 26 dB
NOISE FACTOR: 2,2 dB
POWER CONSUPTION: 20 mA
POWER SUPPLY: 12/24 Vdc
ANTENNA AMPL/BY PASS: No
ADJUSTABLE GAIN: Yes
TV SET MAX: 2
TERMINATION: F female
CONNECTOR SUPPLIED: F male gold plated connector (V9144)
A/B SWITCH: No
