The TV satellite antennas of Glomex are refurbished in technology and performance: the new HPD (High Performance Dish) parabolic dishes with flanged LNB, combined with the innovative software for signal research, allow the compensation of quality losses due to satellite multiplication on the terrestrial orbit and to transmission on same frequency.

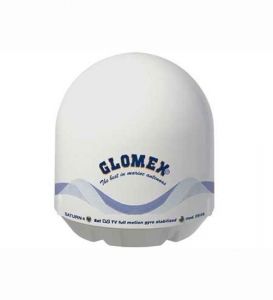

Saturn 4 DVB-S2 FULL HD is the TV satellite antenna that, not only guarantees high performance standards of signal reception and tracking when cruising, when anchor riding or when moored, but also allows the connection of up to 16 independent decoders on the same boat. Saturn 4 is equipped with an efficient compensation system (for boat roll and pitch) by means of electronic gyro-stabilizers (EGS), with a multi coaxial rotating joint (MCRJ) and with a multi-switch box for the connection of more independent decoders (4 outputs for multi-switch, up to a maximum quantity of 16 for antenna). The antenna can turn infinitely on its axis, since there is no coaxial cable wrapping (SCC), without interrupting the TV signal. Saturn 4 is equipped with a control unit that can be embedded in the electronic panel on board. Eight satellites are already precharged on the control unit, and they're recognized by the NIT system (Network Identification Table). It is ready for future updating.
SUPPLIED ACCESSORIES:
8 SAT CONTROL UNIT: FOR THE CHOICE OF THÉ 8 SATELLITES PLEASE CONTACT US sales@glomex.it PRELOADED SATELLITES : HOTBIRD 13°E, ASTRA 1 19,2°E, ASTRA 2 28,2°E, ASTRA 3 23,5°E, EUROBIRD 9°E, SIRIUS 4,8°E, THOR 1°W and HISPARAT 30°W
10 M (33') COAXIALES CABLES (4 pcs)
1,5 M (5') COAXIAL CABLE
DC/DC ADAPTOR
MULTISWITCH V9191
HIGH THICKNESS SYNTHETIC RUBBER GASKET
TECHNICAL SPECIFICATIONS
TECHNOLOGY: DVB-S2
ANTENNA DISH DIAMETER: 470 mm (18'')
RADOME DIMENSIONS: 500 x 560 mm (20x22'')
ANTENNA WEIGHT: 13 kg (28,50 lb)
TRACKING RATE: 50° sec
ANTENNA GAIN: 34 dB (12 GHz)
DISH TYPE: Prime Focus + HPD
POLARIZATION: Linear (H + V)
LNB FREQUENBCY RANGE: 10,7 - 12,75 GHz LNB universal
RADOME TYPE: U.V. resistant
POWER REQUIREMENT: 12/24 Vdc (2,5 Ah)
OPERATING TEMPERATURE RANGE: -20° +55°
AZIMUTH TURN RANGE: Unlimited
FULL ELEVATION RANGE: 5° - 90°
TYPE OF STABILIZATION: gyro on 2 axis + 3° axis by interpolation
SATELLITE IDENTIFICATION: NIT (Network Information Table)
MIN EIRP: 49 dBW
FUTURE UPGRADES READY: Yes
DECODER OUTPUT: 4 outputs to multiswitch (max 16 outputs)
CONTROL UNIT: 8 satellites loaded
