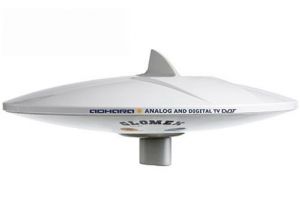

The new ADHARA AGC is the Omni directional TV antenna renewed in design and performance keeping the essential style, compact dimensions (diameter 370mm / 14”) and high quality materials, developed to meet the requirements of large yachts and cargo ships.
Adhara is distinguished by an innovative design based to the new pinnacle as a “shark fin” (high 55mm /2,2”), for receiving vertically polarized TV signals, that fits perfectly on the new radome with aerodynamic lines. Thanks to vertical pinnacle inside the “shark fin”, Adhara can receive analog or digital TV signals polarized both horizontally and vertically.
Adhara is equipped with 2 amplifiers: the 50023/14 amplifier with AUTOMATIC GAIN CONTROL AMPLIFIER, and the 50022/10 is both amplifier and splitter allowing the signal to be directed to several TVs whilst retaining a high quality image.
SUPPLIED ACCESSORIES:
50023/14 AMPLIFIER
50022/10 6 WAY LINE AMPLIFIER
20 M (66') COAXIAL CABLE
25 M (82') COAXIAL CABLE - 2 PCS
V9144 F-MALE GOLD PLATED CONNECTORS (11 PCS)
Technical Specifications
ANTENNA DIAMETER: 370 mm (14'')
ANTENNA HEIGHT: 185 mm (7') [240 mm (9,5") with shark fin]
BASE DIAMETER: 25 mm (1'')
ANTENNA WEIGHT: 900 g (31.74 oz) [975 g (34,39 oz) with shark fin]
RADOME MATERIAL: U.V. resistant ASA
ANGLE OF RECEPTION: 360°
POLARIZATION: Horizontal / Vertical
IMPEDANCE: 75 ohms
FREQUENCY RANGE: 40/890 MHz
GAIN AVERAGE: 36 dB
NOISE FACTOR: 2,1 dB
POWER CONSUPTION: 120 mA
POWER SUPPLY: 12 Vdc
ADJUSTABLE GAIN: AUTOMATIC
TV SET MAX: 6
TERMINATION: F female
CONNECTOR SUPPLIED: F male gold plated connector (V9144)
