Growatt MIC 3000TL-X Single Phase On-grid Inverter 3kW 4200Wp 1 MPPT 13A #N52731053061

Growatt MIC 3000TL-X single-phase On-grid 3kW 4200Wp with 1 MPPT, 97.6% maximum efficiency, Touch controls, OLED display, 274x254x138mm, 6.2kg; suitable for small domestic renewable energy installations.
Price:
€520.00
Listing:
€800.00
You Save:
€280.00 (35%)

Description

Growatt MIC 3000TL-X Single Phase On-grid Inverter 3kW 4200Wp 1 MPPT 13A

Growatt MIC 3000TL-X inverter is a single phase On-Grid 3kW 4200Wp grid inverter with 97.6% maximum efficiency for residential projects with higher power density, wider input voltage range for more flexible installation and a perfect match for high power PV panels.
Natural cooling, mute operation. Remote monitoring. Compact size & high power density, makes single phase inverter smaller and lighter, which is quicker and easier for installation. IP65 rated. Easy installation.
It guarantees earlier power generation and longer working time to maximize the yields and long-term investment return for the end-users.
Its operation is simple and completely automatic: it starts working as soon as it receives the first voltages from the solar panels, sufficient to exceed the minimum voltage threshold for ignition. When this threshold is no longer reached, in the evening, the inverter switches off and stops feeding energy into the grid, disconnecting itself from it.
Thanks to the quality of the materials and the high technology without transformer, this inverter is able to convert the direct current coming from the solar panels into alternating current with an efficiency of 97.6%, managing the energy input into the electricity grid through the meter of energy.
In order to make the most of the potential of the panels, even in situations of partial irradiation or shaded areas, the Growatt inverter uses the MPPT (Maximum Power Point Tracker) technology, which is able to constantly manage and exploit the maximum point of power supplied by the photovoltaic panel based on the solar radiation to which it is subjected.
It also integrates a type II DC overvoltage protection device.

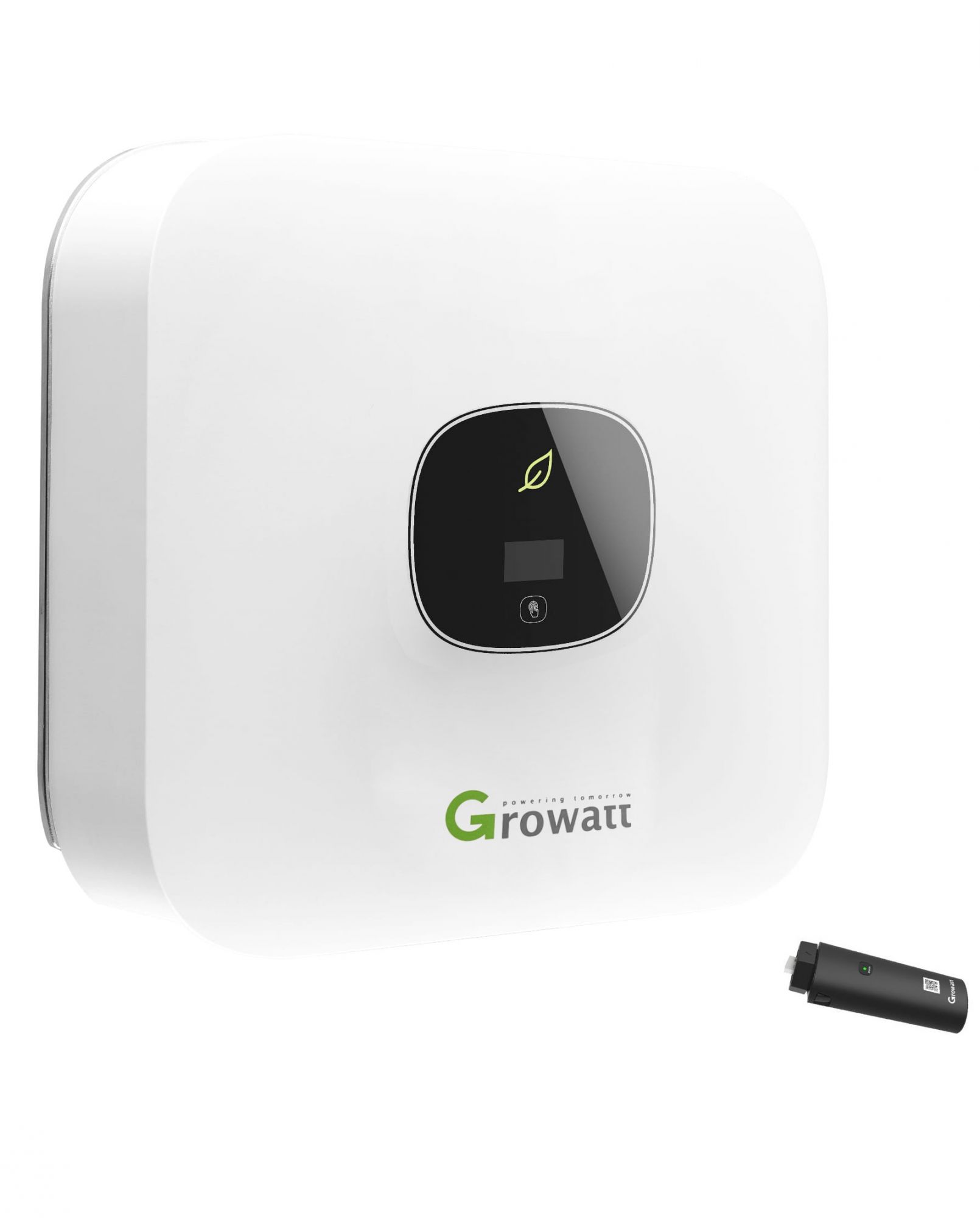

Option: Growatt WiFi-S
The wifi key is an asset for the use of growatt inverters. It will allow you to easily and accurately monitor your solar production, whether you are in your living room or outside your home. Real-time indication of production, as well as any failure of your system, will provide security and peace of mind on the go.
The Growatt WiFi-S includes easy installation without cables. With the Plug-and-Play installation, it is possible to connect a Growatt inverter with WiFi. The WiFi-S key has a total range of 50 meters and a storage period of 30 days.

GENERAL FEATURES
• Maximum efficiency of 97.6%
• Compact aesthetics
• Touch controls & OLED display
• Flexible monitoring options
• AFCI optional
INPUT PARAMETERS (DC)

Maximum recommended PV power (for STC modules): 4200W;
Maximum DC voltage: 550V;
Activation voltage (V Start): 80V;
Rated voltage: 360V;
MPP voltage range: 50V-500V;
No. of MPP trackers (MPPT): 1;
No. of Strings for MPPT: 1;
Max. Input current for MPPT: 13A;
Max. DC current for MPPT: 16A.
OUTPUT PARAMETERS (AC)
AC rated power: 3000W;
Max. Apparent AC power: 3000VA;
Rated AC voltage (range *): 230V (180-280V);
AC mains frequency (range *): 50/60 Hz (45-55Hz / 55-65 Hz);
Max. Output current: 11.9A;
Configurable power factor: 0.8 in advance… 0.8 in delay;
THDi: <3%;
AC grid connection: Single phase.
EFFICIENCY
Maximum efficiency: 97.6%;
Euro Efficiency: 97.1%;
MPPT efficiency: 99.9%.
GENERAL DATA
Dimensions (L / H / P): 274/254/138 mm;
Weight: 6.2 kg;
Operating temperature: –25 ° C ... + 60 ° C;
Night power consumption: <0.5W;
Topology: without transformer;
Cooling system: Natural convection;
Degree of protection: IP65;
Relative humidity: 0-100%;
Altitude: 4000m;
DC Connectors: H4 / MC4 (Optional);
AC Connection: Connector;
Display: OLED + LED / WIFI + APP;
Interfaces RS485/USB/WiFi/GPRS/RF/LAN: Yes/Yes/Optional/Optional/Optional/Optional;
Warranty: 10 Years;
Certifications: CE, AS4777, AS/NZS 3100, CEI 0-21, VDE-AR-N 4105, VDE 0126-1-1, UTE C 15-712-1, EN50549, IEC 60068, IEC 61683, IEC 62116, IEC 61727, INMETRO, G98, C10/C11, UNE217001, UNE206007, PO12.2.

* The AC voltage and frequency range may vary according to local power grid regulations. All specifications are subject to possible changes without notice.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.

Downloads
