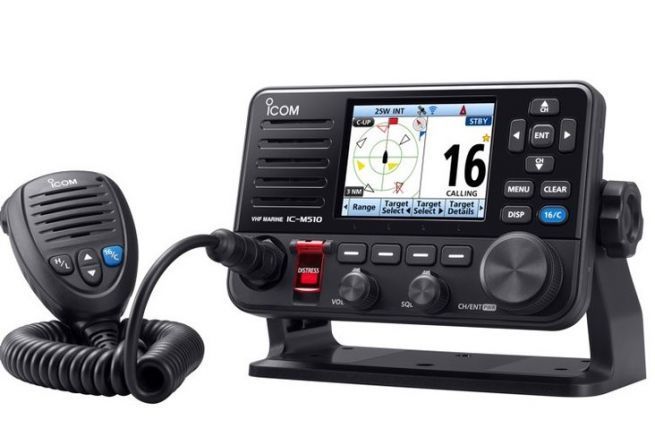

Icom IC-M510E #15 EURO Class-D DSC VHF Marine Radio with WLAN Function.
Features

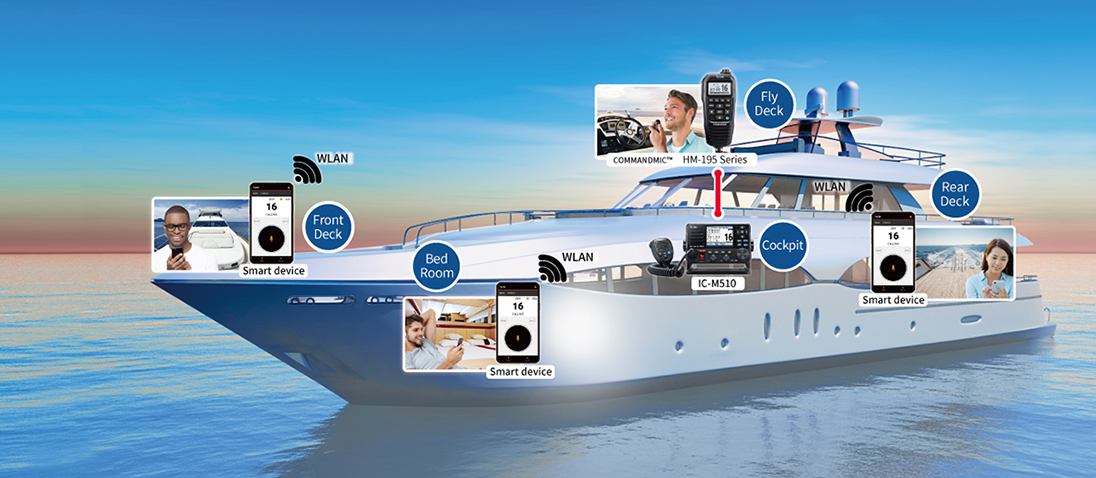

Radio Control & Intercom via Your Smart Device
Use the RS-M500 app (for iOS™/Android™) to remotely control the IC-M510 through WLAN. Up to three smart devices can be used as a wireless microphone or remote controller in substitute for the COMMANDMIC™. Intercom function between your smart device and the radio is also available.
Integrated AIS Receiver*
With its integrated AIS receiver* or external NMEA sentence (third party AIS receiver, transponder), the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.
* AIS receiver is not included depending on the transceiver version.

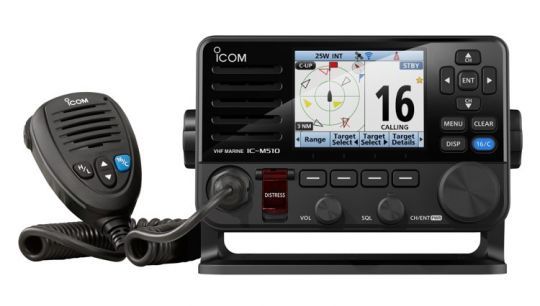

Wide Viewing Angle Color TFT LCD
The color TFT LCD provides nearly a 180-degree viewing angle. The wide display has high-resolution characters and function icons. The night mode screen ensures good readability in low light conditions.
New Sleek Design
The IC-M510 is slim (depth: 53.6 mm; 2.1 in) and easy to install in your boat. It’s all-new sleek design is suitable for either panel or trunnion mounting.
Simplified Navigation Function
The Navigation function guides you to a specified waypoint or AIS target. You can assign up to 100 destinations as waypoints.
Provides Clear, Loud Audio
The IC-M510’s internal speaker enhances the received audio. The waterproof speaker provides superior sound quality with a wide frequency range for powerful, clear audio.
Interface BOX for NMEA 2000™ and Hailer
The optional CT-M500 wireless interface box provides NMEA 2000™ connectivity and Two-way Hailer/PA function. The CT-M500 and the radio can be connected through WLAN. This separate interface box option allows for flexibility in positioning the unit closer to the NMEA network connection point.
AIS Target Call with MA-510TR
When connected to the optional MA-510TR Class B AIS transponder, the AIS target call function allows you to make an individual DSC call without having to manually input an MMSI number.
Other Features
- Active Noise Canceling
- NMEA 0183/HS connectivity
- Integrated GNSS receiver (Selectable from either internal receiver or use optional UX-241 GNSS antenna)
- IP68 advanced waterproofing (1 m depth of water for 60 minutes)
- Automatic Foghorn function (CT-M500 required)
- Voice Scrambler with optional UT-112A
- AquaQuake™ prevents audio degradation from a water-logged speaker
- Supplied speaker-microphone, HM-205RB can be connected to either front or rear panel to meet to user's requirement.
- External speaker connection
- Controlled with COMMANDMIC™ HM-195GB/GW
- Supports 4-digit channels
Specifications
General
Frequency range TX 156.025–157.425 MHz
RX 156.050–163.275 MHz
DSC 156.525 MHz
AIS1, 2*1 161.975, 162.025 MHz
Usable channels USA, CAN, INT, WX channels
Type of emission 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*1
Power supply requirement 13.8 V DC (11.7–15.9 V DC)
Current drain (at 13.8 V DC) TX 25 W output 5.5 A
RX Max. audio 3.3 A
Operating temperature range –20°C to +60°C; –4°F to +140°F
Antenna impedance 50 Ω
Weight (approx.) 730 g; 1.6 lb (Not including microphone)
Transmitter
Output power (at 13.8 V DC) 25 W, 1W
Max. frequency deviation ±5 kHz
Frequency tolerance ±0.5 kHz
Spurious emissions Less than −70 dBc (at 25 W)
Residual modulation More than 40 dB
Adjacent channel power More than 70 dB
Wireless LAN
Wireless LAN standard IEEE802.11 b/g/n
Authentication and Encryption WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
Channels 1 to 13 (2.4 GHz band)*2
Output power Less than 10 mW/MHz
