Icom IC-M94DE#15 VHF MARINE TRANSCEIVER WITH DSC & AIS.
Price:
€409.55
Listing:
€455.06
You Save:
€45.51 (10%)

Description

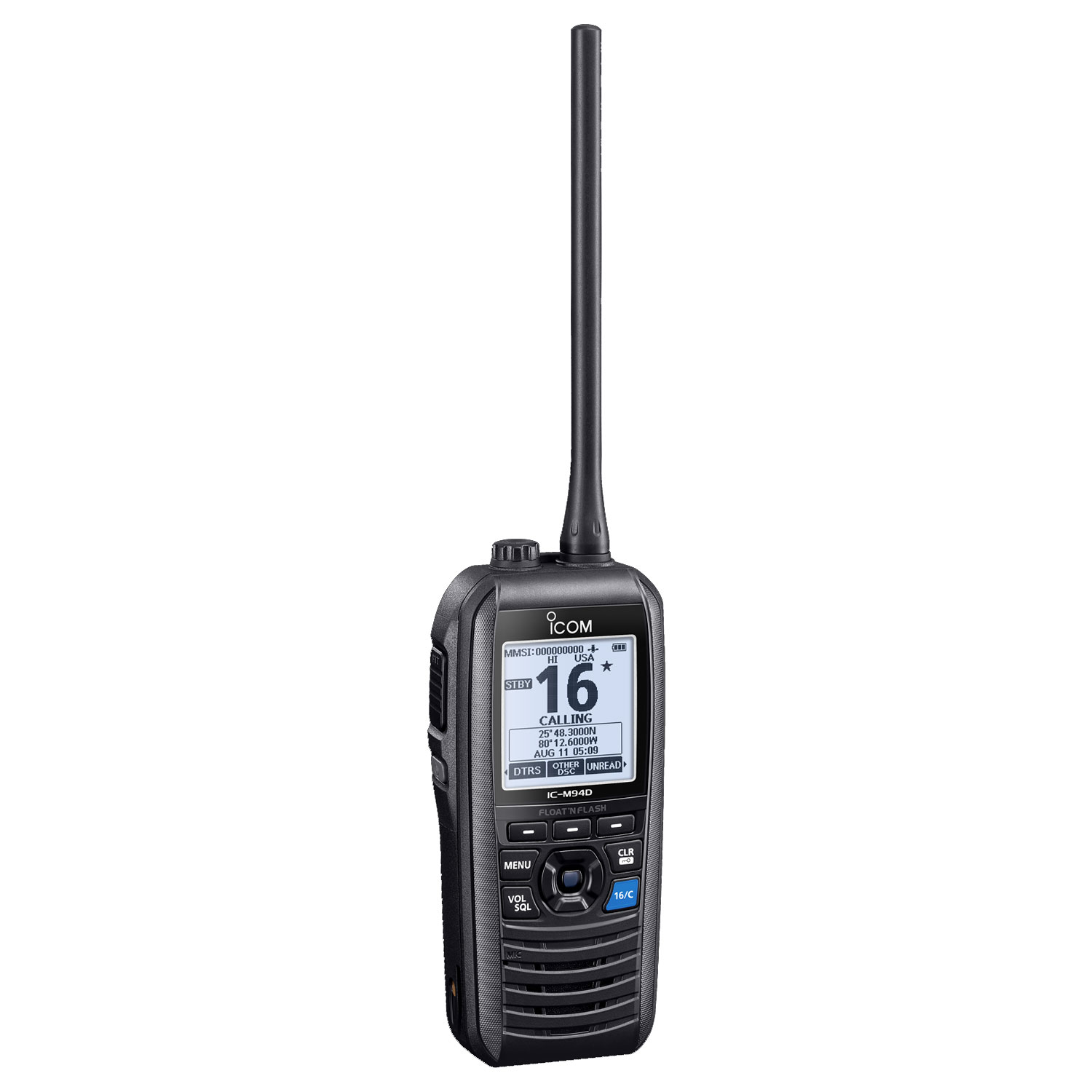

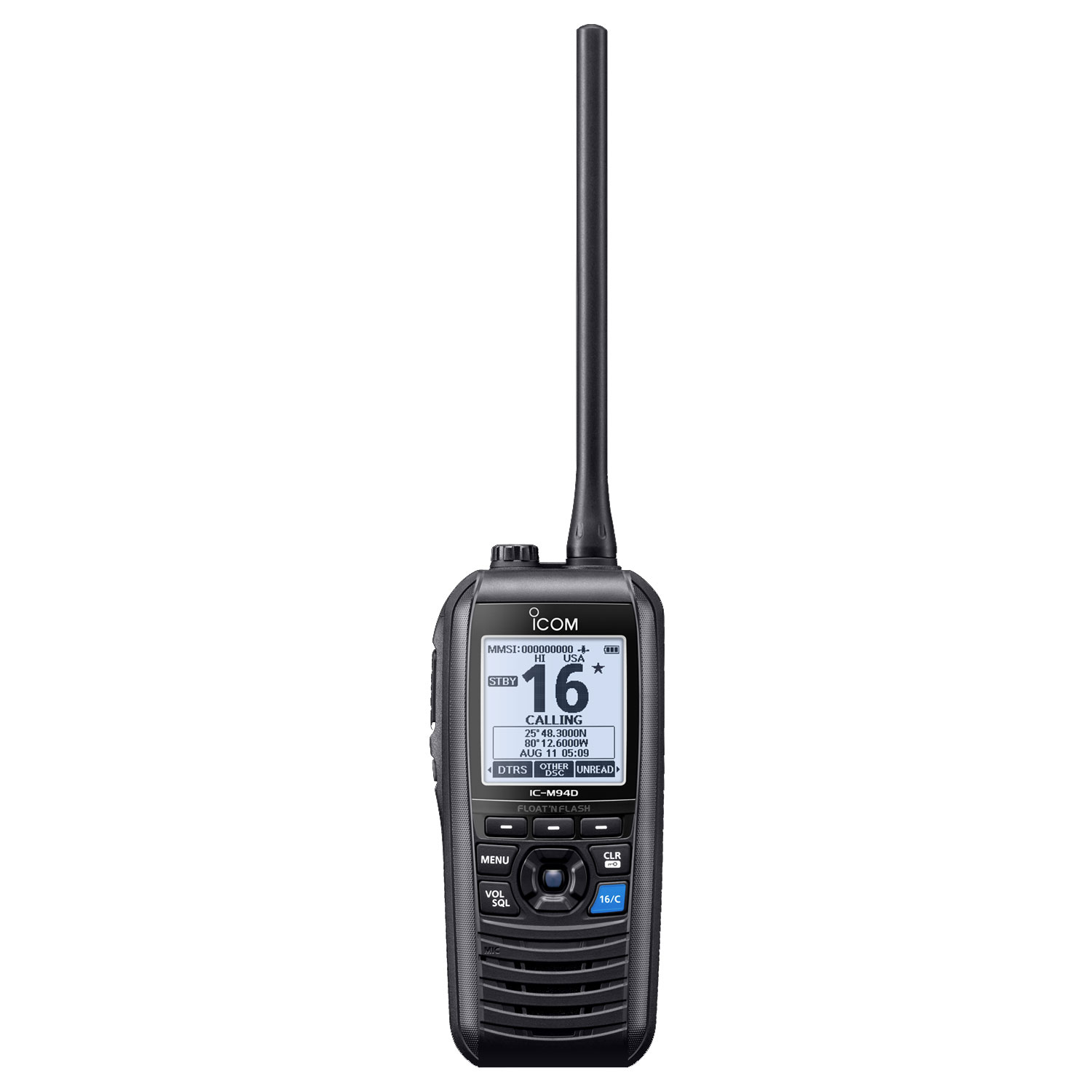

Icom IC-M94DE#15 VHF MARINE TRANSCEIVER WITH DSC & AIS

AIS Receiver and DSC in One Package
AIS receiver and DSC function add further assurance for safety at sea. With the integrated AIS receiver, vessel traffic information is shown on the display. The AIS target call function allows you to easily set up a DSC individual call. Distress calls can be made with the rear panel button.

6 W RF Output Power and 10 Hours of Operating Time
The IC-M94D’s 6 watts of transmit power provides extended communication range for the user. The supplied 2400 mAh (typical) high capacity Li-ion battery, BP-306 provides 10 hours of operating time, under normal conditions*.
* Approximate, typical operation with 5:5:90 duty ratio.

Class-Leading 1500 mW Audio Output
Icom’s custom high-power capacity speaker delivers a loud 1500 mW (typical) audio output with improved acoustic sound clarity for noisy maritime environments.

Simplified Navigation Function
The Navigation function guides you to a specified waypoint. You can assign up to 50 favorite fishing spots or destinations as waypoints.

Float’n Flash and MOB Auto Set Functions

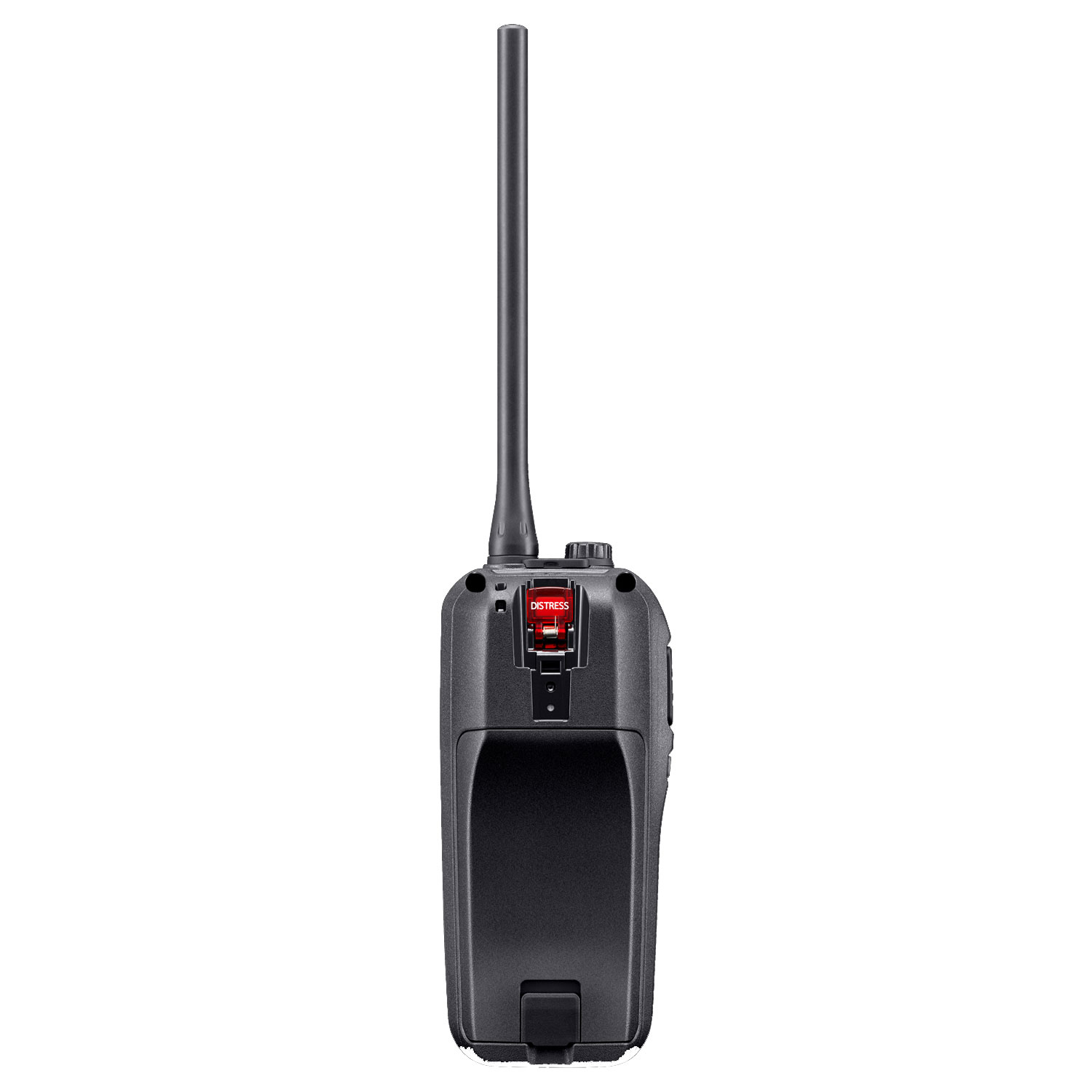

The radio floats and the LCD screen, keys and rear panel Distress button flash to help you retrieve it from the water. Pressing the distress button while Float’n Flash is working will transmit the MOB distress signal, rather than the plain undesignated one for better protection of sailors.

And More
• Integrated GPS receiver
• Active noise canceling technology
• IPX7 submersible (1 m depth of water for 30 minutes)
• Weather channel receive (for USA version)
• Dualwatch and Tri-watch functions
• Favorite channel function
• Supports 4-digit channels
• AquaQuake™ prevents audio degradation from a water-logged speaker

Supplied accessories:
• BP-306 battery pack
• BC-251 battery charger
• AC adapter*
• CP-26 cigarette lighter cable
• MB-133 belt clip
• Antenna
• Hand strap
* May differ depending on version.

Specifications
Frequency range:
TX 156.025–157.425 MHz
RX 156.050–163.275 MHz
RX (CH70) 156.525 MHz
RX (AIS) 162.025 MHz
Usable channel groups INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM), 16K0G2B (DSC) 16K0GXW (GMSK)
Current drain (at 7.2 V DC) TX (6 W/1 W output) RX (Inter SP/Exter SP Max. audio): 1500 mA/700 mA (approx.) 700 mA/350 mA (approx.)
Operating temperature range –20°C to +60°C; –4˚F to +140˚F
Antenna impedance 50 Ω
Dimensions (W×H×D) (projections not included) 60.9 × 145.8 × 43.8 mm; 2.4 × 5.7 × 1.7 in
Weight (approximate) 357 g ; 12.6 oz (With BP-306, antenna, MB-133)

TRANSMITTER
Output power (Hi/Low) 6 W/1 W
Max. frequency deviation ±5 kHz
Frequency stability ±10 ppm
Spurious emissions –68 dBc typical
