Description

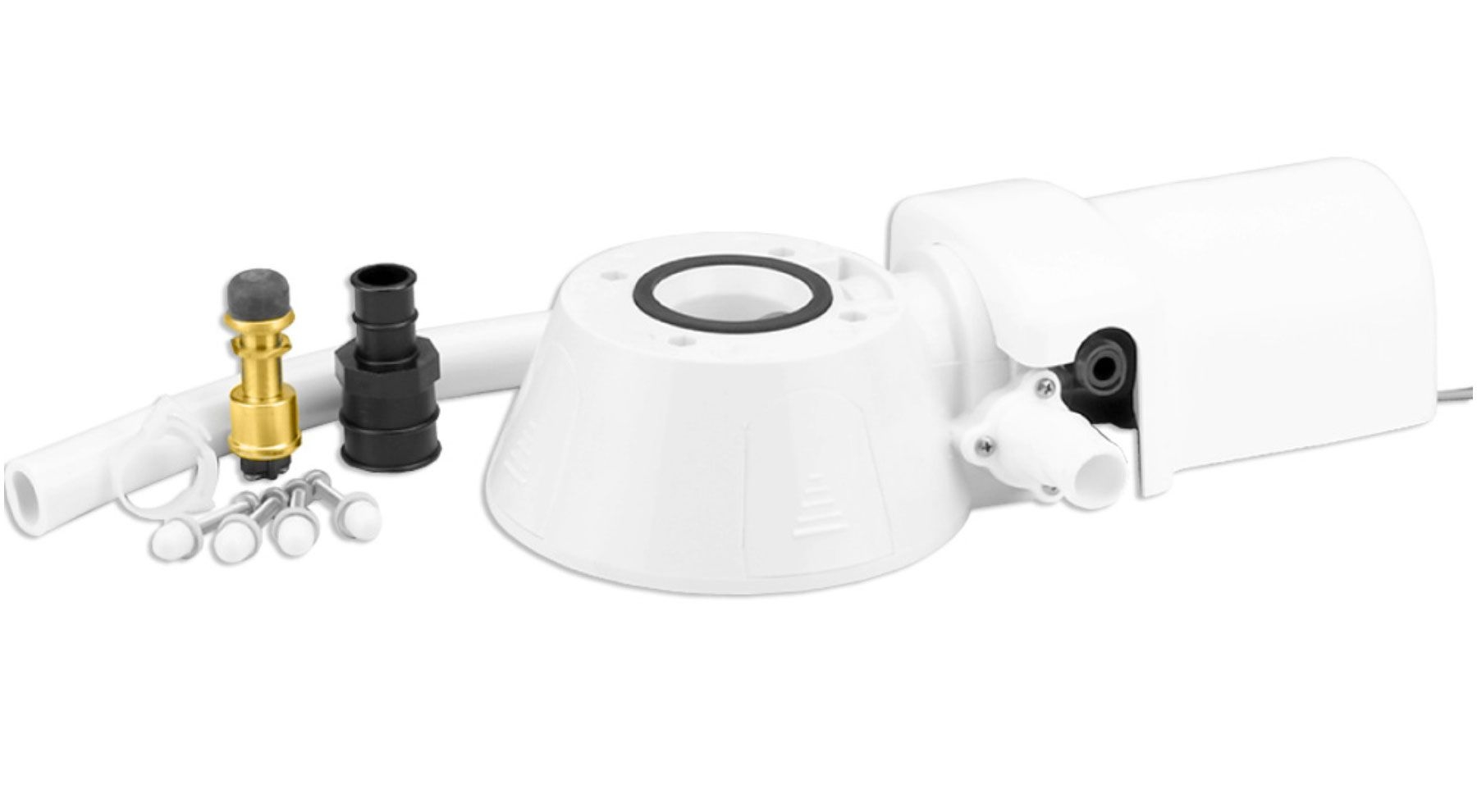

Jabsco 24V 37010-007 Toilet conversion Kit from Manual to Electric Toilet
Convert our Manual Toilet Compact and Regular Bowl models to full electric operation without need to alter existing inlet or discharge seacocks.
- Also converts most toilets with four bolt screw pattern on a 3-3/4" (95mm) diameter bolt circle such as Groco, Raritan, Wilcox Crittenden, Mansfield and Sealand.
- Push-button flushing for ease and simplicity of operation.
- Comprehensive kit has all necessary parts, including flushing pump, macerator pump, switch, adapters, clamps, hose and fastenings.
- Flushing pump self-priming up to 4' (1.2m) vertical lift.
- May be installed 3' (1m) below the waterline.
- For installations fitted with vented loops, use a solenoid valve on inlet hose (see below).
- Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection).
- 24V DC, fuse 15 amp
FITTING Connections for 5/8" to 3/4" (16mm to 19mm)
ID inlet hose, 1" or 1-1/2" (25mm or 38mm) ID
outlet hose
SIZE 13-1/4" long x 8-1/4" wide x 3-1/4" high
(34cm x 21cm x 8cm)
WEIGHT 12.5lb (5.7kg)
