Directly replaces manual pump assembly. Easy to install and easy to use. Fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Suitable for above or below waterline installations. Built-in macerator with stainless steel chopper plate. Complies with ISO 8846 MARINE and USCG 183.410 for Ignition protection. Simple rotary control for ‘flush & discharge’ or ‘discharge only’. Self-priming up to 0.6 m (2ft). Waste pump discharges over an anti syphon loop up to 1.8 m (6ft) and out of a through hull fitting down to 0.9 m (3ft) below the surface. Average power consumption is less than 1.0 amp hour (12 Volt) per day.
Features:

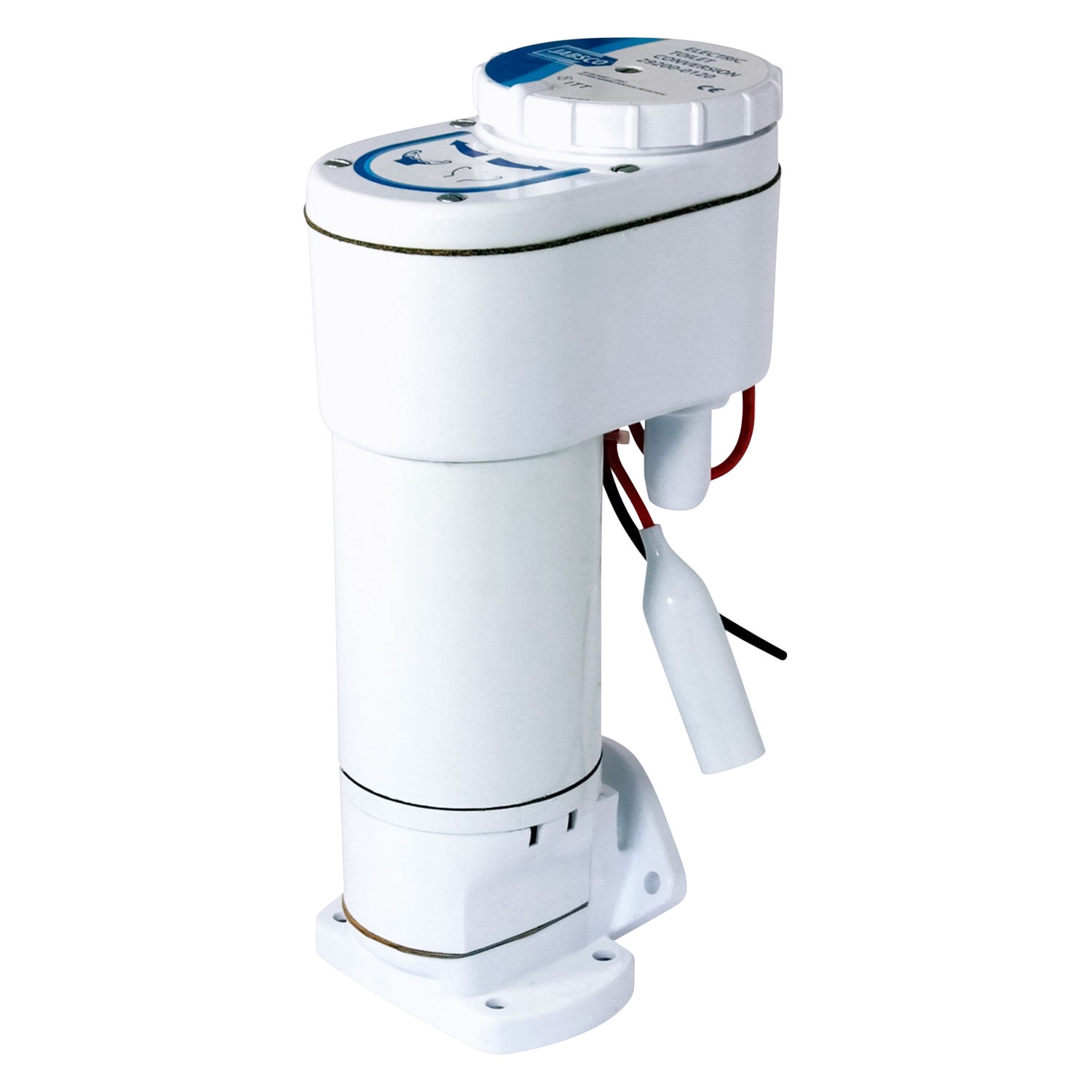

Model No.: 29200-0120 Electric Conversion.
Voltage: 12 (VAC).
Amp Draw: 24 (amp).
Fuse Size: 25 (amp).
Inlet hose Ø19 mm.
Outlet hose with existing elbow Ø38 mm.
Size: 90x150xh270 mm.
Weight: 3,8 kg.
Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
