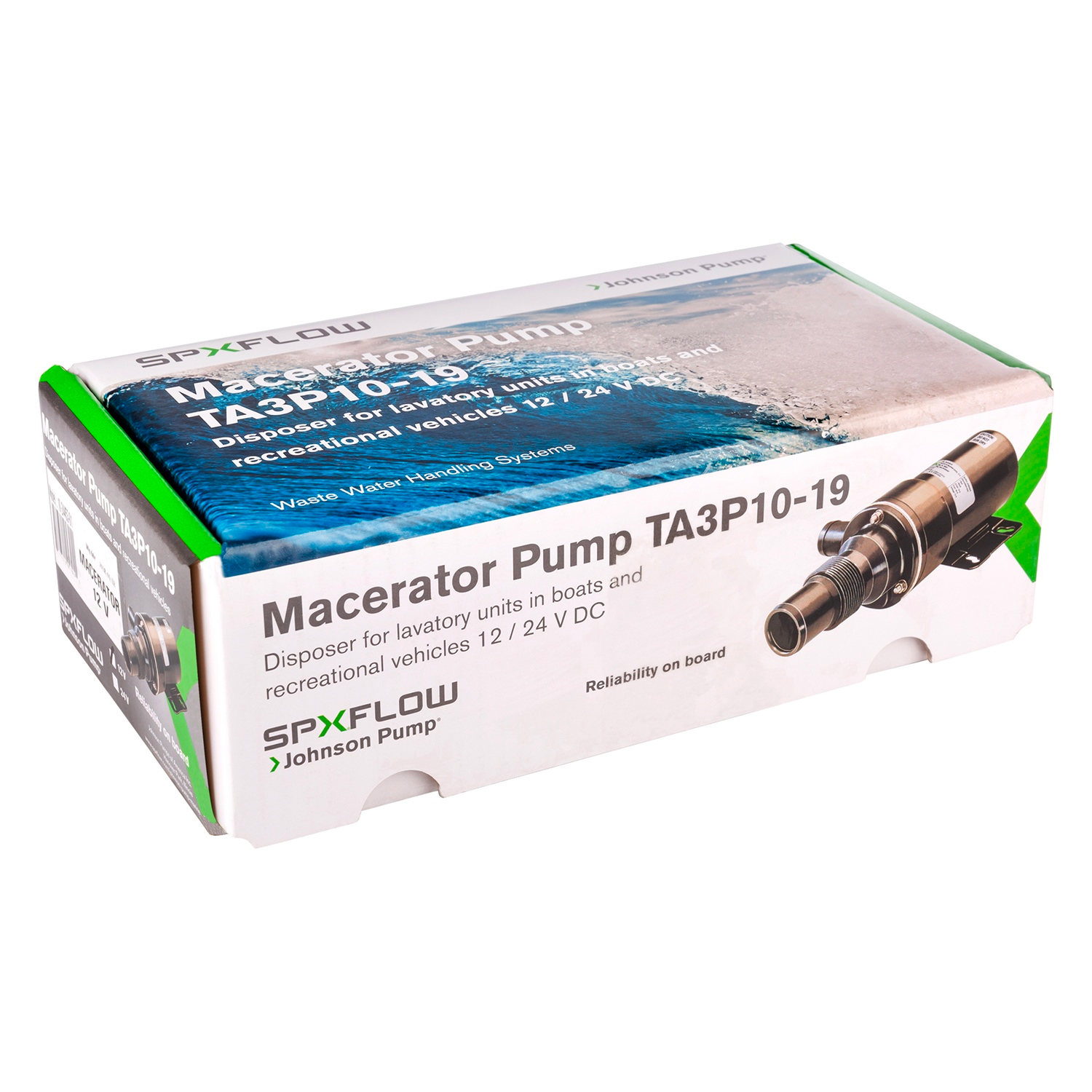

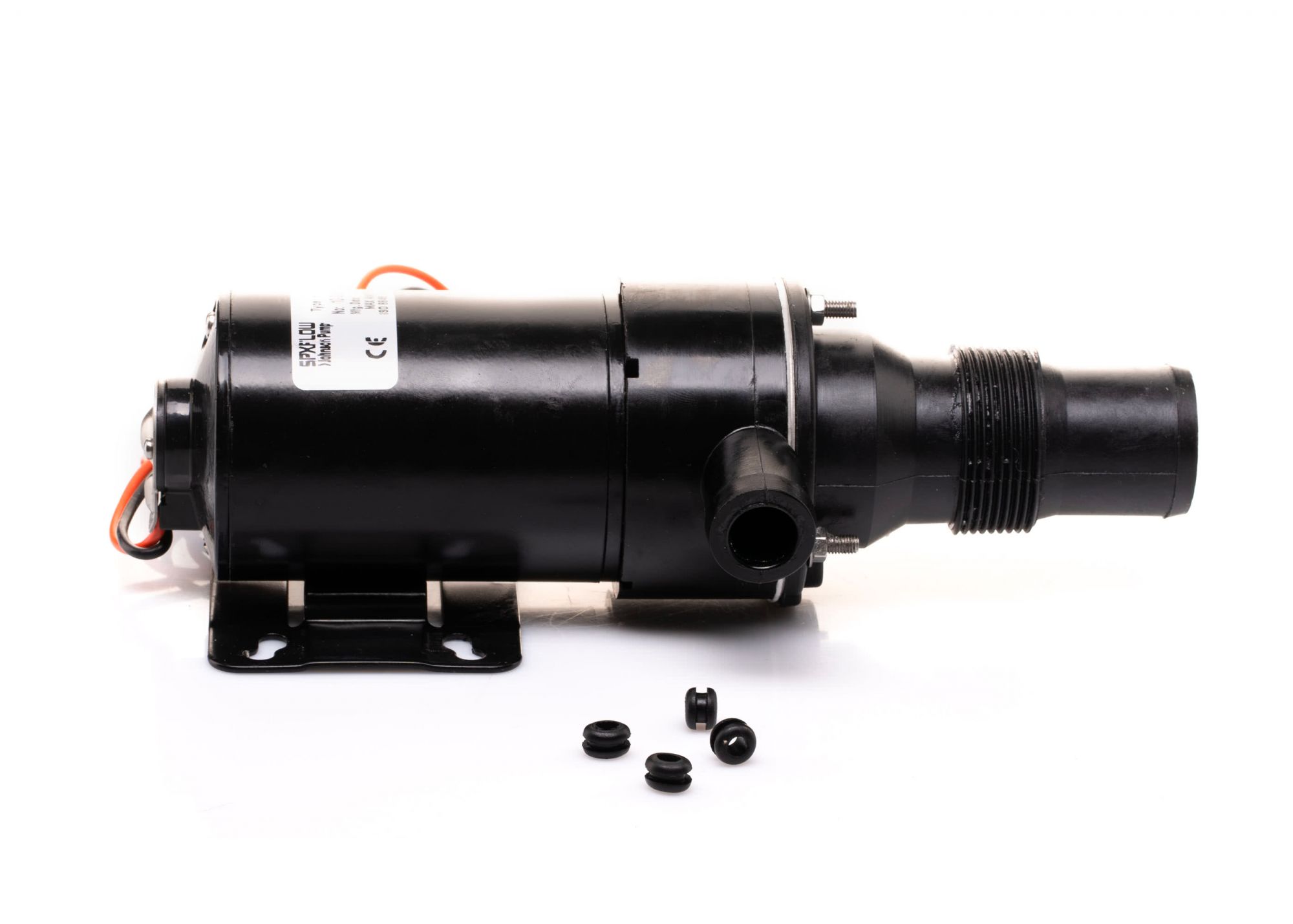

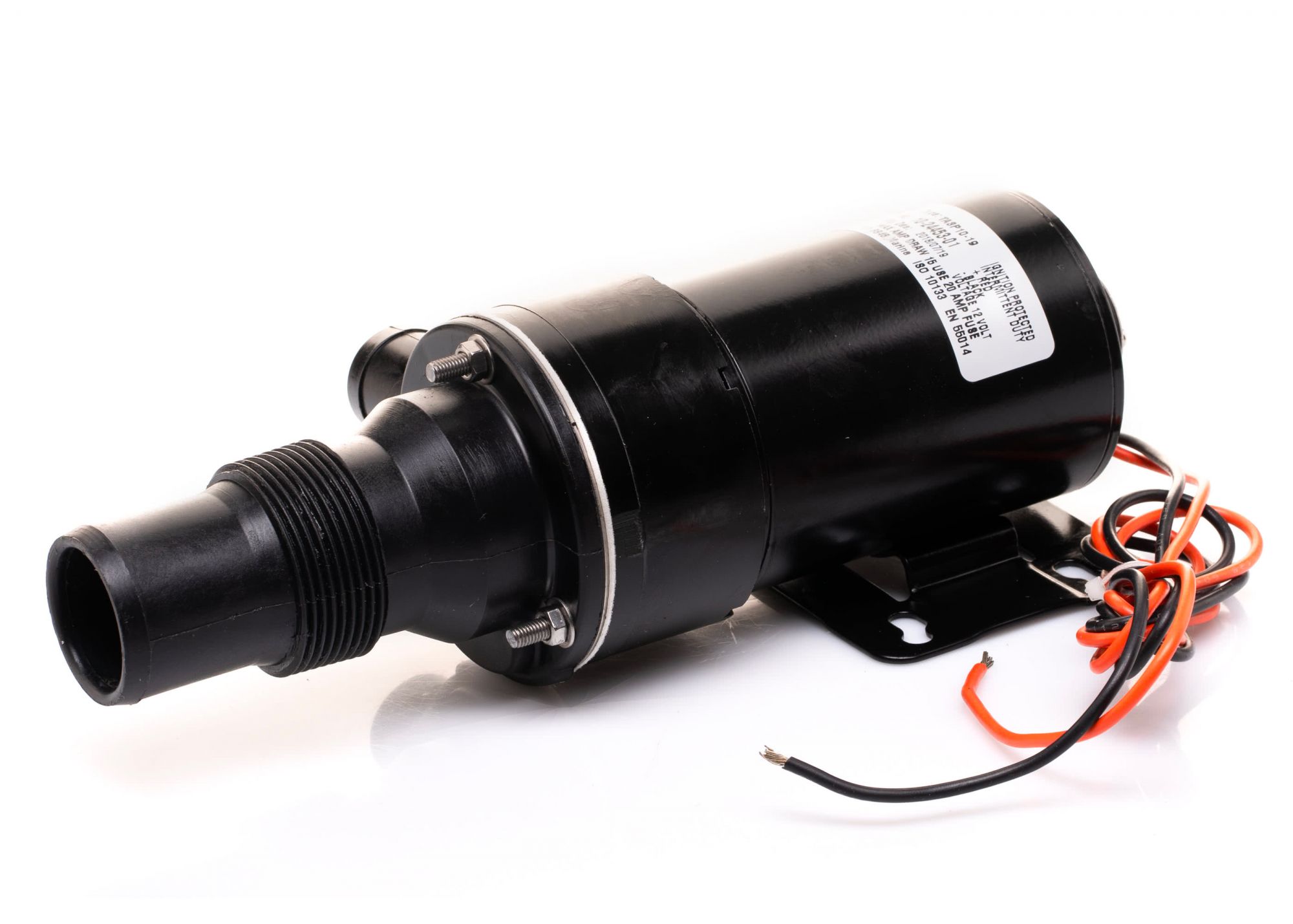

Johnson TA3P10-19 Self-priming Macerator Pump 12V 15A 37lt/min #N42437001446

Johnson TA3P10-19 Self-priming Macerator Pump 12V 15A 37lt/min #N42437001446
  • Johnson TA3P10-19 Self-priming Macerator Pump 12V 15A 37lt/min #N42437001446
  • Johnson TA3P10-19 Self-priming Macerator Pump 12V 15A 37lt/min #N42437001446
  • Johnson TA3P10-19 Self-priming Macerator Pump 12V 15A 37lt/min #N42437001446

Johnson TA3P10-19 Self-priming Macerator Pump 12V 15A 37lt/min #N42437001446

TA3P10-19 12V 15A Johnson Self-priming Macerator Pump for emptying the containment tanks of the boats. Flow rate 37lt/min, self-priming at 1.5m, weight 1.9kg, conforming to ISO 8846 Marine.
Price:
€189.00
Listing:
You Save:
(%)

Description

12V 15A Johnson Self-priming Macerator Pump 37lt/min

Model #: 10-24453-01
Type: TA3P10-19
ISO 8846 Marine ISO 10133 EN 55014
CE-Approved.

WASTE EVACUATION
The Johnson Pump brand TA3P10-19 Macerator pump takes care of the toilet waste, shredding it before it is pumped into or out from the holding tank. The pump should be connected as close as possible to the holding tank discharge outlet or the bowl discharge outlet. Note! Use unbleached lavatory paper only.
It is recommended that holding tanks be flushed with several gallons of water after each pump out. This will reduce the possibility of a continued build up of sediment in the tank which could cause a potential blockage.

FISH BOX AND LIVEWELL TANK EVACUATION
The Johnson Macerator Pump is the ideal pump for the emptying of Fish box and livewell receptacles. Very often the livewell tank will be above the waterline of the boat, when this is the case gravity can be used to empty the livewell tank. If not installed in this format then it is beneficial to use the Johnson macerator pump for evacuation due to its self-priming capabilities and also it's grinding properties.
Fish boxes are typically mounted into the floor of the vessel and are very often below the waterline or only partially above the waterline. Again the Johnson Macerator pump has the characteristics that lend themselves to this application. The bait residue particles of ice, fish scales and anything else that could potentially be found in the Fish-Box will be easily passed buy the Johnson Macerator Pump, and the self priming capabilities are perfect for fish box installations common to many of today's sports fishing boats.

Features:
-    Ignition protected motor, conforming with ISO 8846 Marine;
-    Mounting bracket for easy replacement;
-    Extremely energy efficient;
-    Rotary cutter casing of PET (thermoplastic polyester);
-    Directly connected to sewage line or holding tank;
-    Capacity at 0.2 bar (6.7 ft):37 l/min - 10 GPM;
-    Inlet Connection:11/2" (dia 38 mm) hose or 11/2"NPT;
-    Amperage: 15 A;
-    Fuse Size: 20 A;
-    Outlet Connection: 1" (25.4 mm) hose;
-    Motor: 12V DC (with built-in thermal protection);
-    Pump Body: Phenol Plastic (PF);
-    Impeller: Nitrile;
-    Cutter Casing: Thermoplastic Polyester (PET);
-    Shaft: Stainless Steel;
-    Seal: Lip Seal;
-    Length: 230 mm - 9.06";
-    Width: 108 mm - 4.25";
-    Height: 82 mm - 3.23";
-    Weight: 1.9 kg - 4.2 lbs.

Note: Use unbleached lavatory paper only. Do not run pump dry. Must not be used for continuous duty.
The use of highly biodegradable toilet paper is recommended, our code N43437004720.
