Description

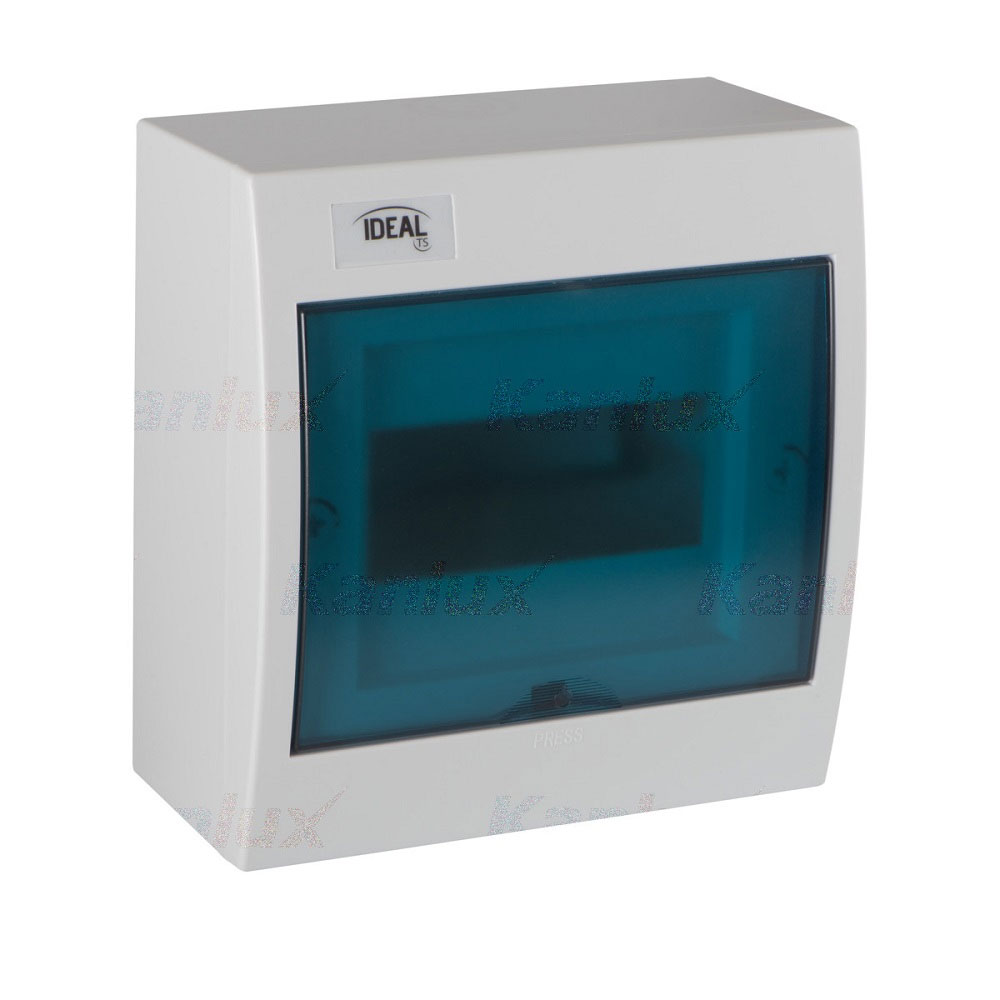

KDB series 6 Kanlux modules wall-mounted electrical distribution panel
KDB series 6 Kanlux modules wall-mounted distribution board
Electric panels of the KDB series that satisfy the requirement of resistance to heat with a temperature of 650° C can only be used on non-combustible surfaces (for example solid walls made of non-flammable materials).
They cannot be applied on flammable surfaces (for example plasterboard, wood), on so-called "hollow walls" or on technical shafts.
Technical data
- Rated voltage: 230/400 V AC
- Nominal frequency: 50/60 HZ
- Color: white / light blue
- Rated current: 63 A
- Modules: 6P
- Door color: light blue
- Mounting location: wall mounting
- IP Grade 30
- Temperature resistance: 650 °C
- IK grade 07
- Degree of protection against electric shock: II
- file number: 1
- Standards: PN-EN 62208
Basic information
- Color: white/light blue
- Material: plastic material

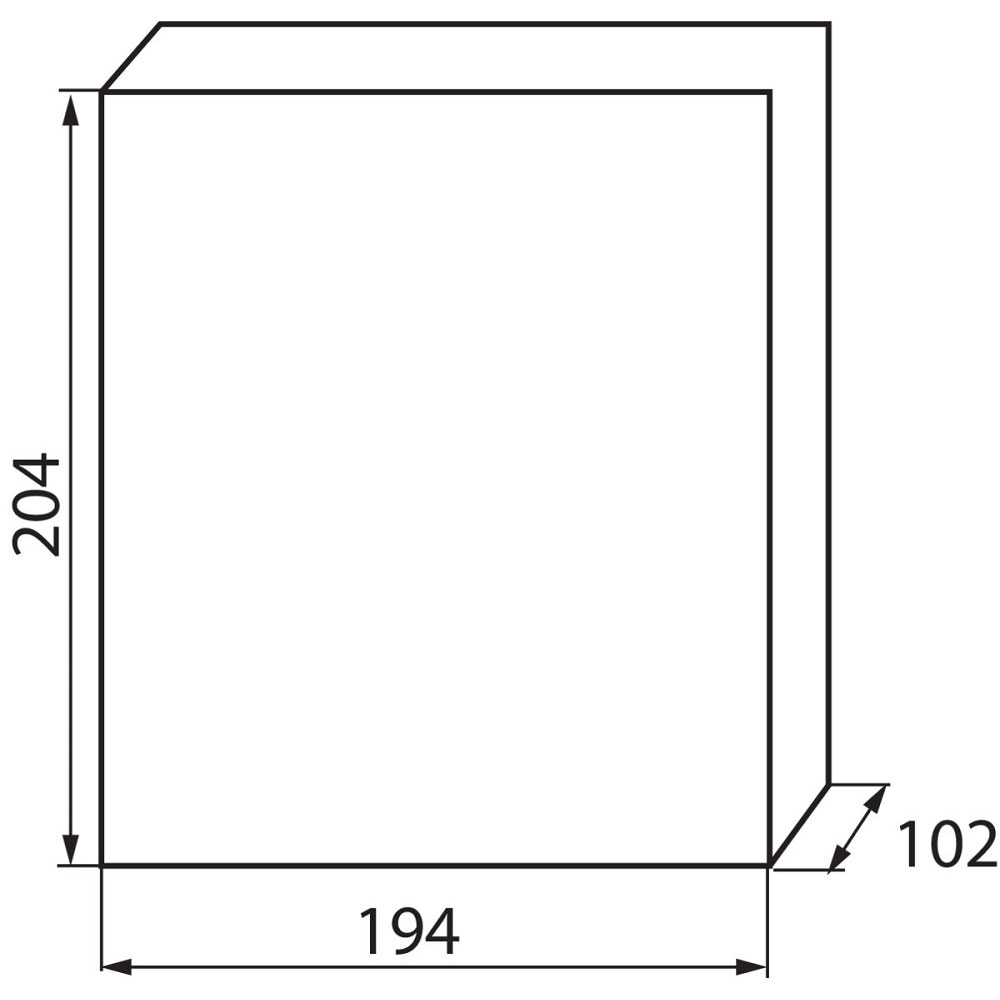

- Height: 204 mm
- Width: 102 mm
- Length: 194 mm
- Weight: 522 g
