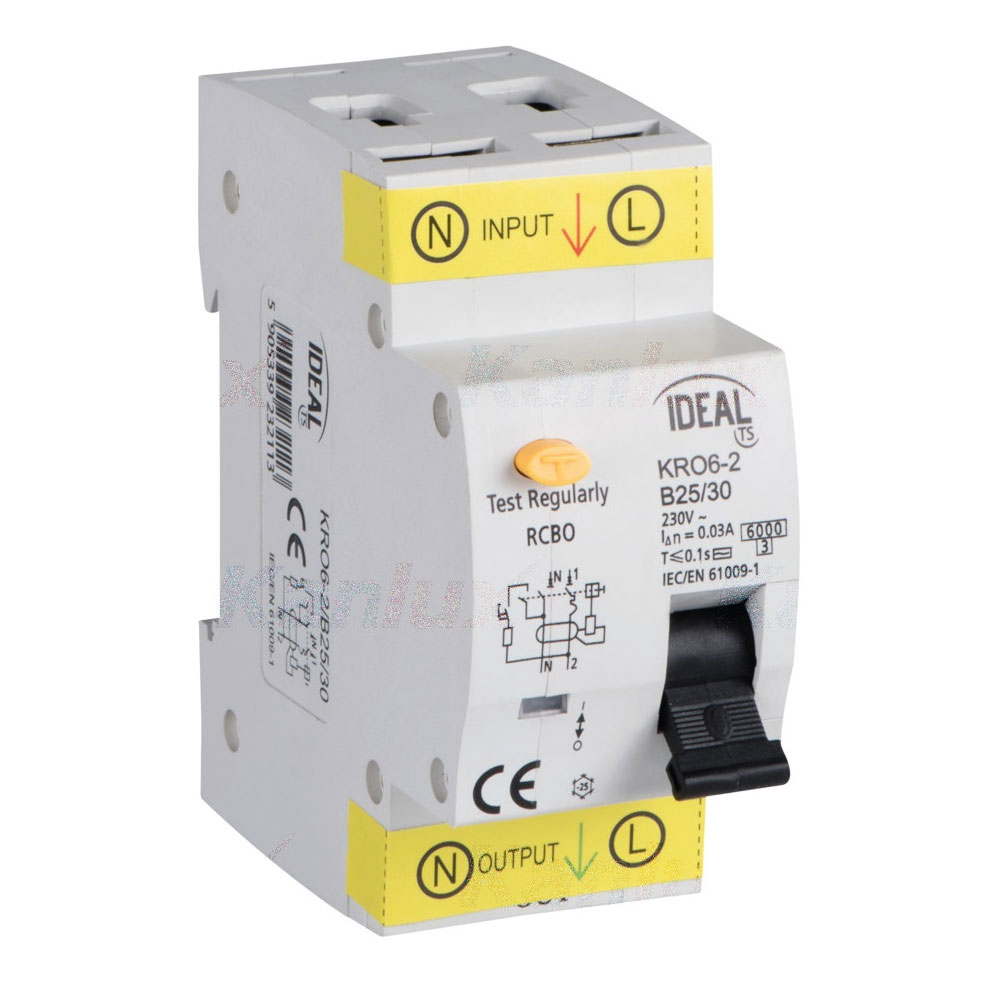

Kanlux KRO6 Differential magnetothermic switch 6kA 25A 2P
RCCB with overcurrent protection it serves to protect against overloads and short circuits in systems and devices as well as protection against electrocution.
 Technical data
- Rated voltage: 230 VAC
- Nominal frequency: 50/60 Hz
- Color: white
- Rated current: 25 A
- Rated residual current: 30 mA
- Sections of cables used: 10÷16 mm
- Operating temperature: -25÷40 °C
- IP degree: IP 20
- Type of differential protection: AC
- Rated short-circuit current: 6000 A
- Energy restriction class: 3
- Release property:  B
- Modules: 2
- Application: 2
- Place of mounting: for TH35 binary
- Standards: PN-EN 61009 -1

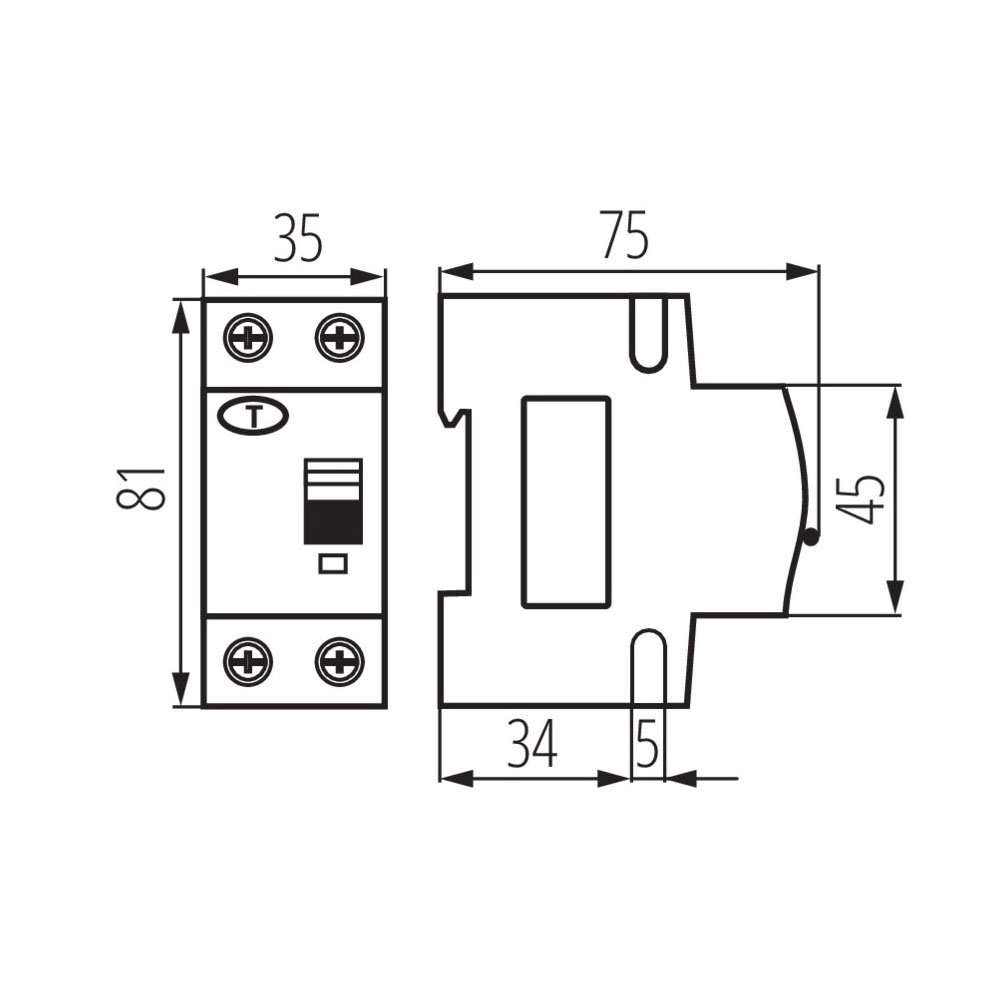

- Size: 75x35xh81 mm
- Weight: 180g
