Kong 644.10 Swivel Anchor connector for 8/9/10/12mm chain

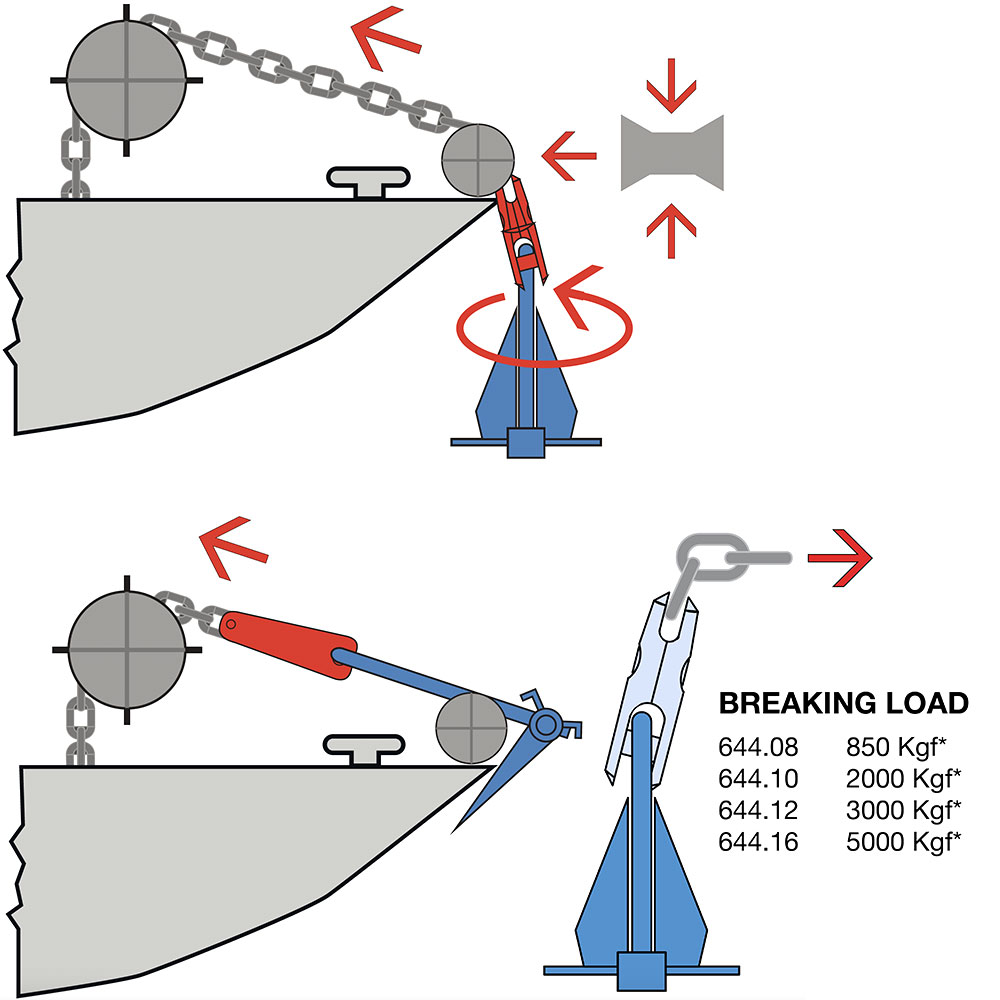

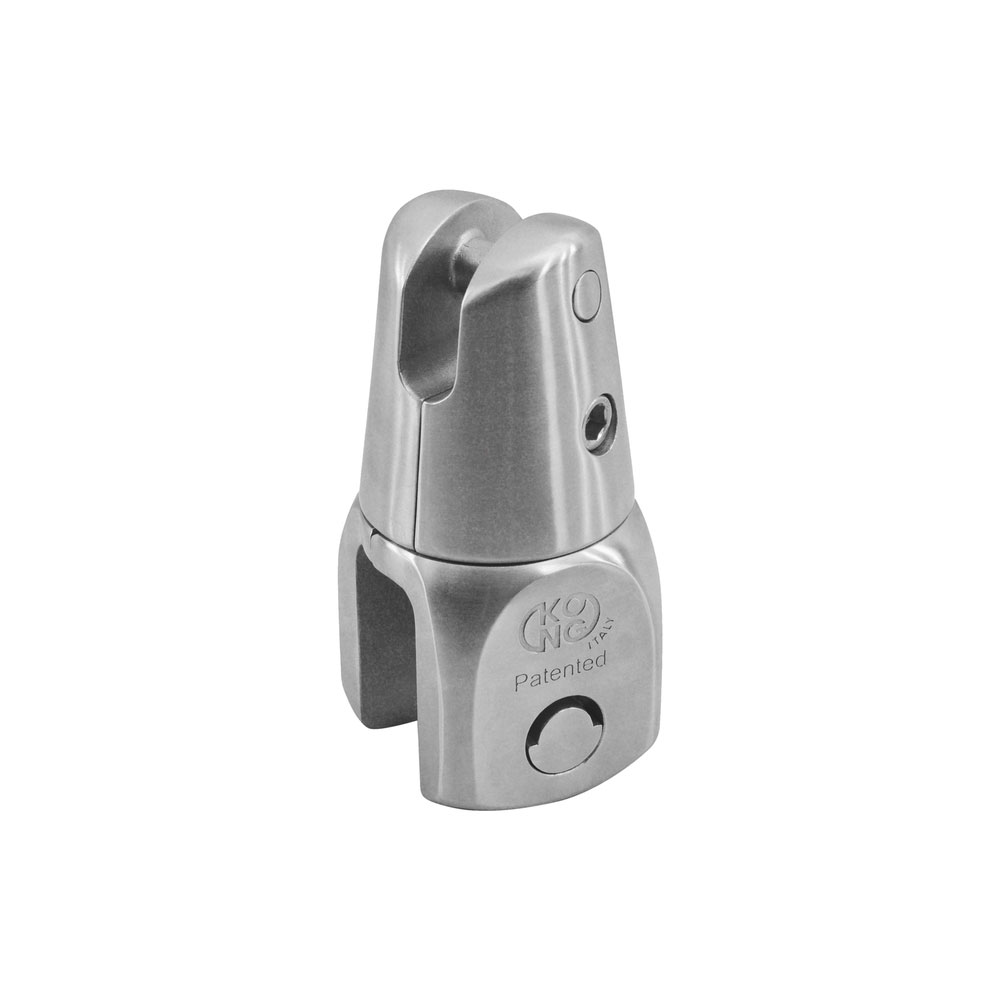

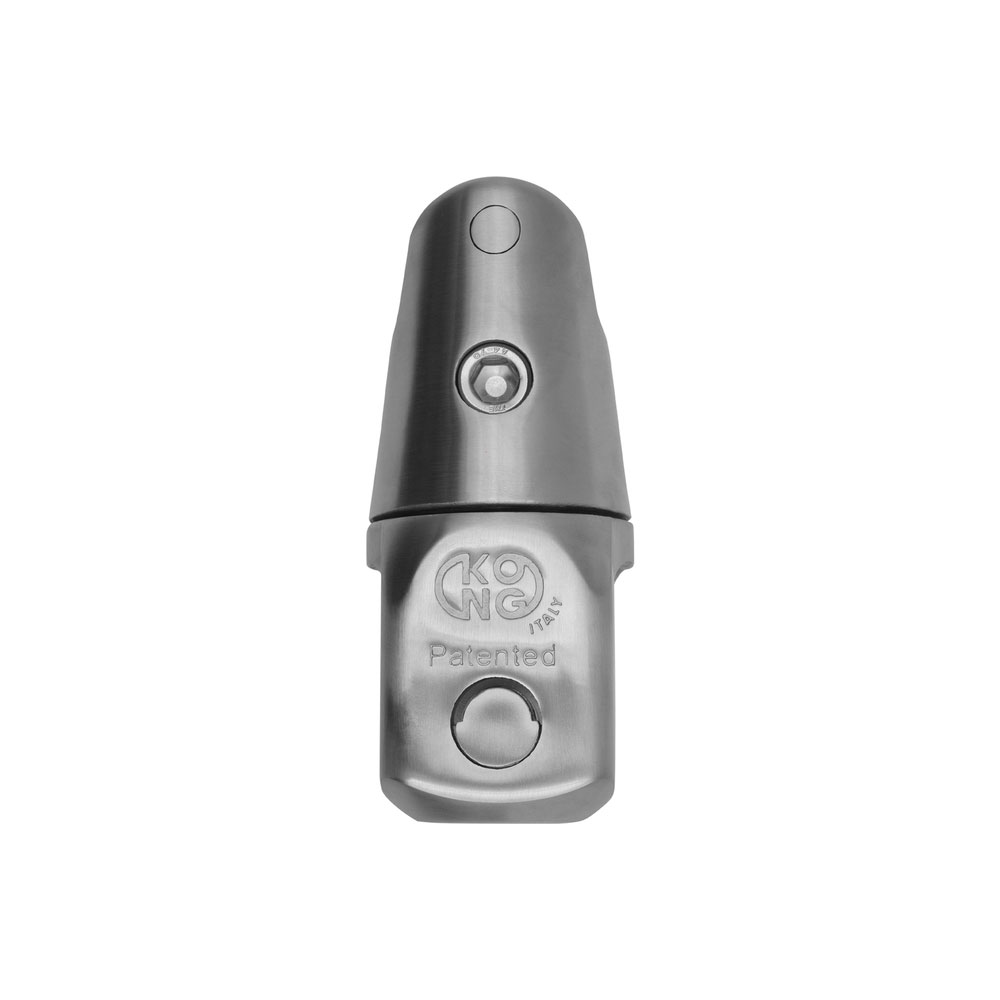

Swivel anchor connector made of high quality stainless steel AISI 316. Anchor slides perfectly through the ferrule without any problems or damage to the sheaving. Anchor straightens up automatically and is correctly positioned on board. It has a hold on the seabed without the chain twisting.
Breaking load in vertical traction is 5000 kgf. The side bending breaking load is 2000 kgf.

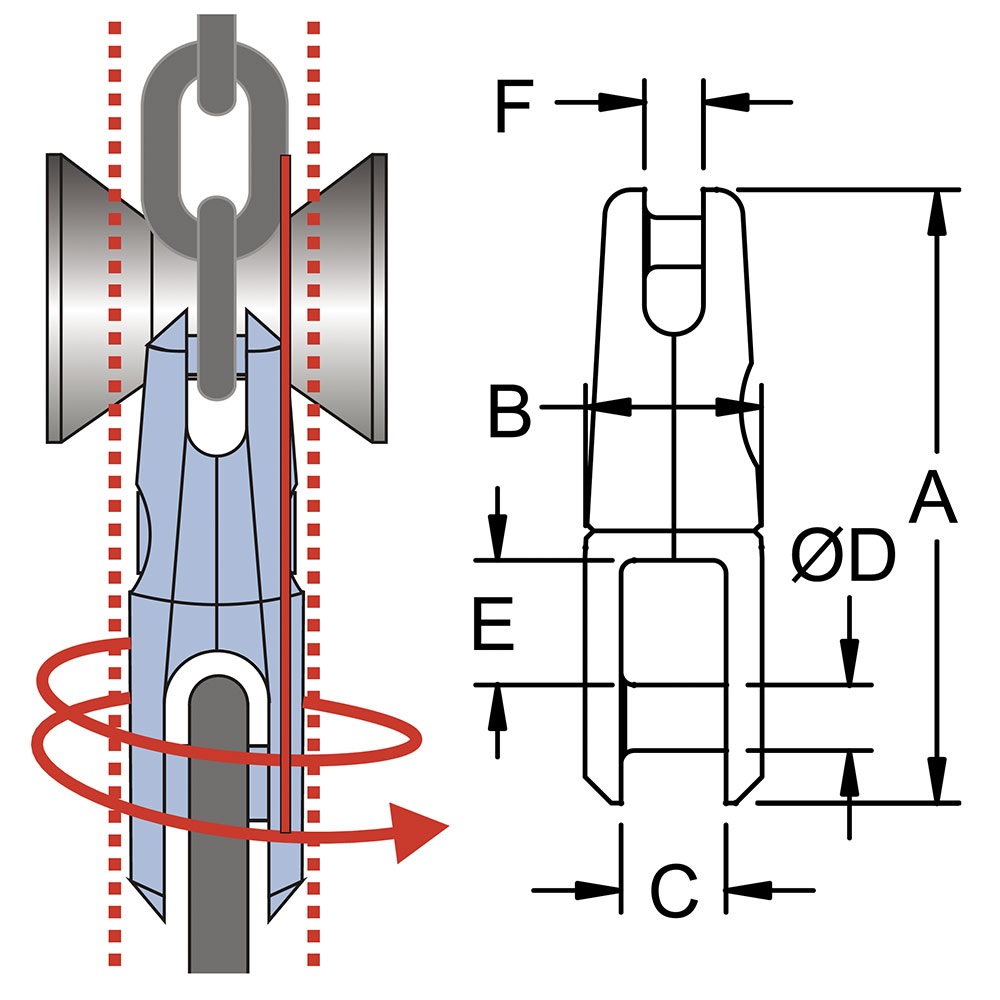

Size: A= 117 mm, B= 37 mm, C= 22 mm, D= 13 mm, E= 23 mm, F= 13 mm. Per catena da 8/9/10/12 mm.
Original Code 644.10.
