THE THERMAL SUPERIORITY
Thanks to the new thermal technology, this model provides a spectacular image resolution of 400×300 (as opposed to the standard resolution of 384×288 of the more common models), and a zoom magnification of 2x-16x (as opposed to the much lower magnification range of the other models). In addition to this, it has other unique features such as: 4 different palettes, Wi-Fi hotspot, photo and video recording function, fire alarm and so on. It also includes a red dot for easier framing of what you want to observe.

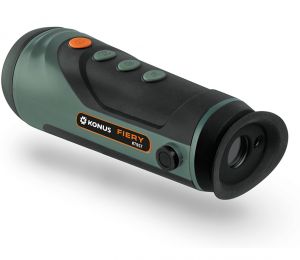

– Thermal Monocular
– 400×300 resolution with high-sensitivity sensor
– Focal length 19mm
– Zoom magnification: 2x-16x
– Built-in rechargeable lithium battery
– Wi-Fi Hotspot
– Memory module with 32Gb Sd Card
– 4 Palettes: Warm White/Warm Black/Warm Red Iron/Alarm
– Distance calculation by video analysis
– Built-in red dot pointer
– Distance recognition: 1353mt
– Photo and video recording function
– Fire alarm function
– Waterproof
– Thread for tripod mounting
TECHNICAL DATA
- VEHICLE SIGHTING DISTANCE 1.4X4M: 1490 M
- HUMAN SIGHTING DISTANCE 1.8X0.5M: 650 M
- VEHICLE RECOGNITION DISTANCE 1.4X4M: 370 M
- HUMAN BEING RECOGNITION DISTANCE: 1.8X0.5M 160 M
- VEHICLE IDENTIFICATION DISTANCE: 1.4X4M 190 M
- HUMAN BEING IDENTIFICATION DISTANCE: 1.8X0.5M 80 M
- WEIGHT GR: 450G
- LENGTH: 187.2MM
– THERMAL MODULE
• IMAGE SENSOR: 400x300px
• MAX RESOLUTION: 1280x960px
• RESPONSE WAVEBAND: 8 μm to 14 μm
• NETD: less than 35mk (@25°C), F#=1.0
• LENS (FOCAL LENGTH): 19 mm
• MRAD: 0.89 mradc
• FIELD OF VIEW: 20.4° x 15.3° (HxV)
• DIGITAL ZOOM: from 1x to 8x
• APERTURE: F1.0
• MAGNIFICATION: 2x to 16x
– IMAGE DISPLAY
• MONITOR: 0.4 inch – LCOS – 1280×960
• FFC (Flat Field Correction): Auto, Manual, External Correction
• PALETTES: Black Hot, White Hot, Red Hot, Fusion
• FRAME FREQUENCY: 50 Hz
– SMART FUNCTION
• HOT TRACK: : Yes
• WI-FI : Yes
• STAND-BY MODE: Yes
– SYSTEM
• STORAGE: Buit-in Memory Module (16 GB)
• ON BOARD VIDEO RECORDING: Yes
• CAPTURE SNAPSHOT: Yes
– POWER SUPPLY
• BATTERY TYPE: Built-in 18650
• BATTERY OPERATING TIME: Up to five hours continuously running (With Wi-Fi hot spot function off)
• BATTERY CAPACITY DISPLAY: Yes
– GENERAL
• POWER: 5 V DC/0.5 A
• WORKING TEMPERATURE: -20°C to 55°C (-4°F to 131°F)
• PROTECTION LEVEL: submersible waterproof rating IP-67
• DIMENSION: 187.5x66.5x68.5 mm
• WEIGHT: 450 g
