THE THERMAL SUPERIORITY

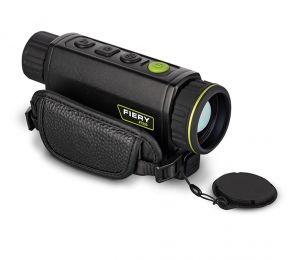

Designed with a magnesium body that minimises its weight, this monocular is much more compact and portable than any other option on the market.
Its small size contains a visual performance that definitely beats the competition in terms of resolution (640×512), zoom magnification (3x-24x), number of palettes (6) and OLED display (1440×108).
This model is therefore the choice of the most demanding professionals who are not used to being satisfied, as they demand the best.
• 640X512 RESOLUTION WITH HIGH SENSITIVITY SENSOR
• 35MM FOCAL LENGTH
• ZOOM MAGNIFICATION: 3X-24X
• BUILT-IN RECHARGEABLE LITHIUM BATTERY
• WI-FI HOTSPOT
• 32 GB MEMORY MODULE
• 6 PALETTES: WARM WHITE – SEIA – WARM GREEN – WARM RED – COLD RED – WARM BLACK
• DISTANCE CALCULATION BY VIDEO ANALYSIS
• PHOTO AND VIDEO RECORDING FUNCTION
• FIRE ALARM FUNCTIONS
• WATERPROOF
• THREAD FOR TRIPOD MOUNTING
TECHNICAL DATA
- VEHICLE SIGHTING DISTANCE 1.4X4M: 3900 M
- HUMAN SIGHTING DISTANCE 1.8X0.5M: 1800 M
- VEHICLE RECOGNITION DISTANCE 1.4X4M: 1000 M
- HUMAN RECOGNITION DISTANCE 1.8X0.5M: 460 M
- VEHICLE IDENTIFICATION DISTANCE 1.4X4M: 500 M
- HUMAN IDENTIFICATION DISTANCE 1.8X0.5M: 230 M
- WEIGHT GR: 318G
- LENGTH: 151.7MM
– THERMAL MODULE
• IMAGE SENSOR: 640x512px
• MAX RESOLUTION: 1440x1080px
• RESPONSE WAVEBAND: 8 μm to 14 μm
• NETD: less than 30mk (@25°C), F#=1.0
• LENS (FOCAL LENGTH): 35 mm
• MRAD: 0.34 mradc
• FIELD OF VIEW: 12.4° x 10.0° (HxV)
• DIGITAL ZOOM: from 1x to 8x
• APERTURE: F1.0
• MAGNIFICATION: 3x to 24x
– IMAGE DISPLAY
• MONITOR: 0.41 inch – OLED – 1440×1080
• FFC (Flat Field Correction): Auto, Manual, External Correction
• PALETTES: White Hot, Sephia, Green Hot, Red Hot, Fusion, Black Hot
• FRAME FREQUENCY: 50 Hz
– SMART FUNCTION
• Hightest temperature spot tracking: Yes
• WI-FI HOT SPOT: Yes
• STAND-BY MODE: Yes
– SYSTEM
• STORAGE: Buit-in Memory Module (32 GB)
• RECORD VIDEO: Yes
• CAPTURE SNAPSHOT: Yes
– POWER SUPPLY
• BATTERY TYPE: Replaceable 18650
• BATTERY OPERATING TIME: ≥6.5h
• BATTERY CAPACITY DISPLAY: Yes
– GENERAL
• POWER: 5 V DC/1 A
• WORKING TEMPERATURE: -230°C to 50°C (-22°F to 122°F)
• PROTECTION LEVEL: submersible waterproof rating IP-67
• DIMENSION: 151.7x42x74.4 mm (5.98"x1.65"x2.93")
• WEIGHT: 318 g (11.21 oz)
