THE THERMAL EXCELLENCE
While being very competitvely priced, it is among the most versatile of the market. It lets you choose between 4 different palettes, it comes with a photo/video recording function and it is also able to transfer the thermal images via Wi-Fi, so that you can see them live on your cellphone if you want.
And, haveing a 0.6c-2.4x zoom system and a bigger display with enhanced field of view, this unit dramatically outperforms the competition from an optical standpoint as well.

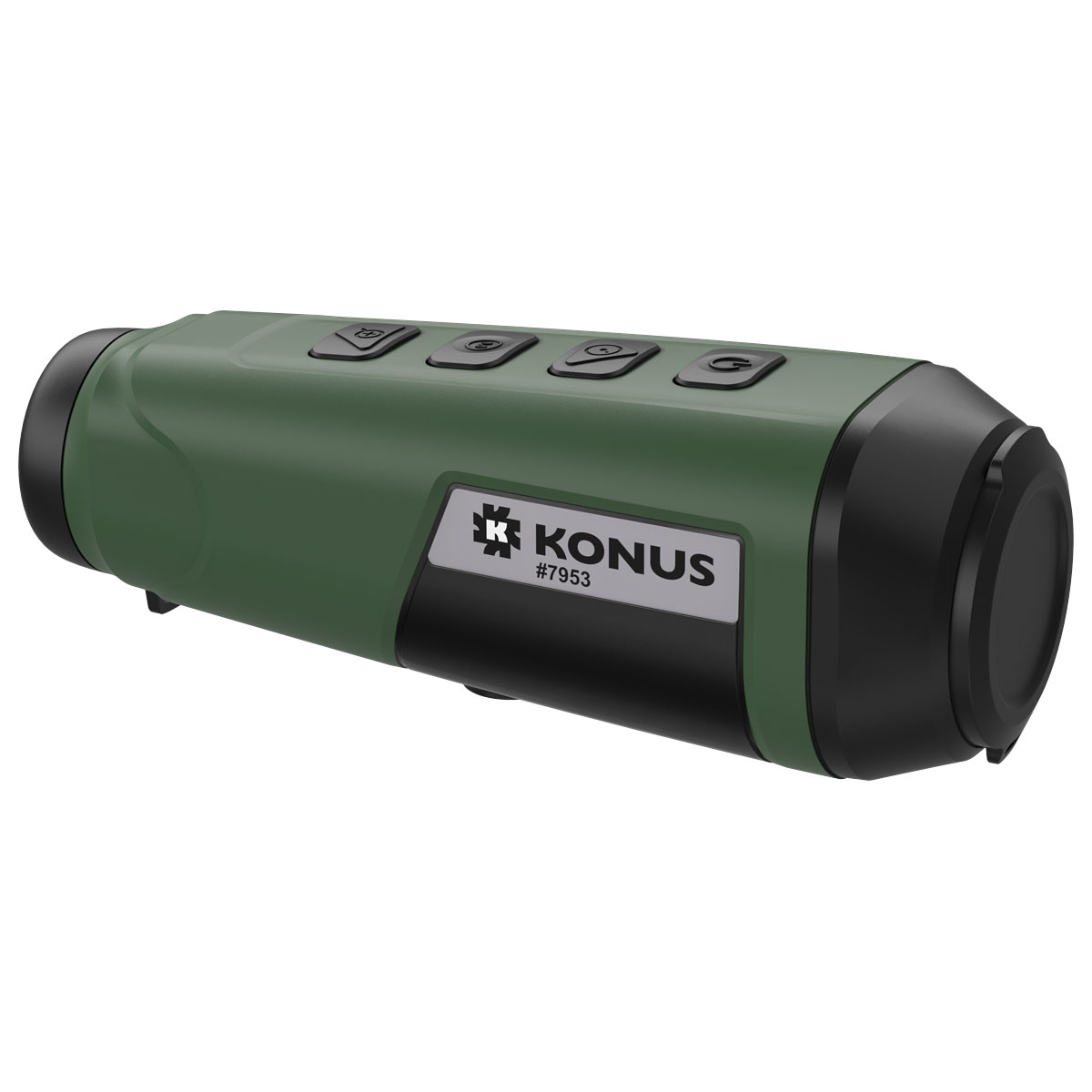

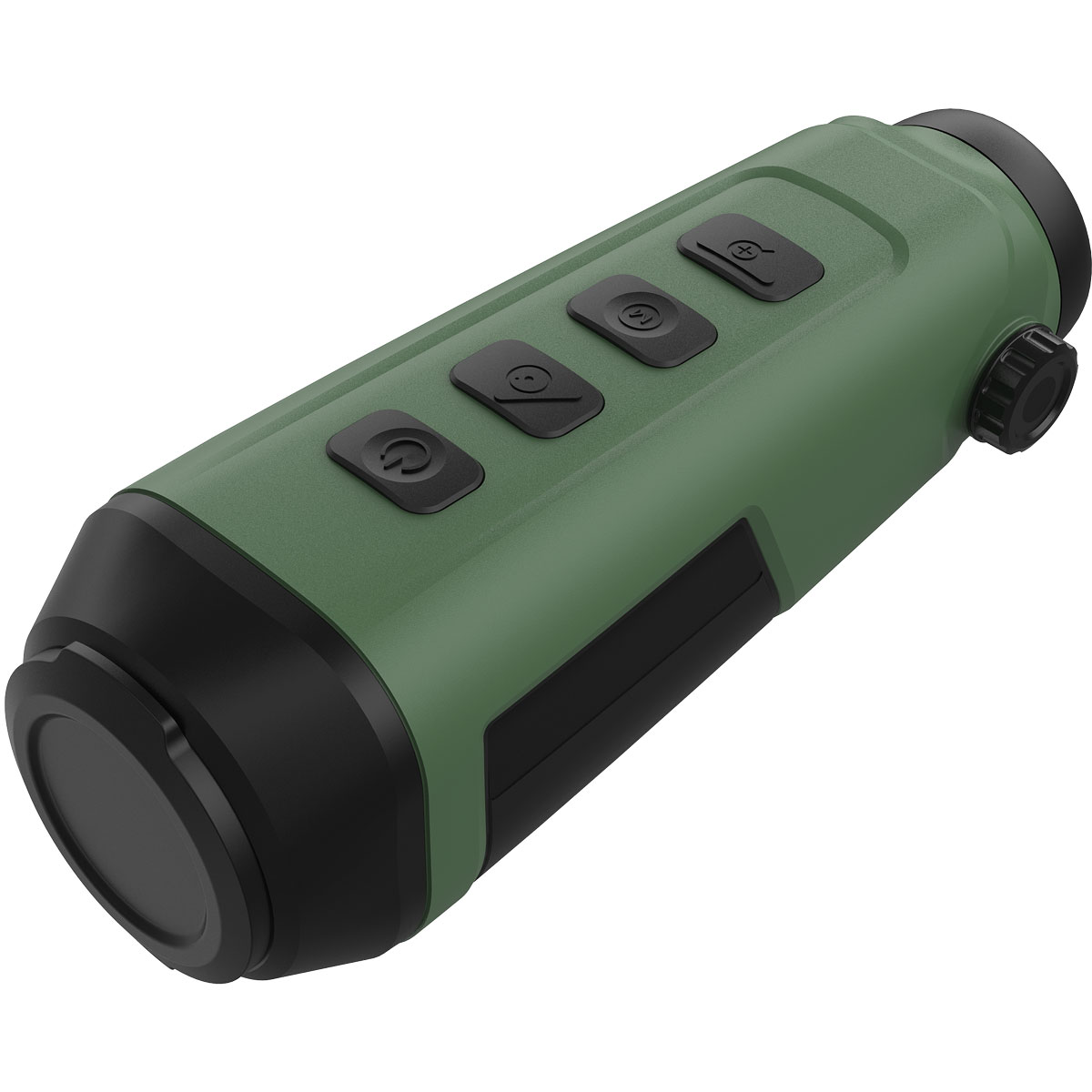

• HANDHELD THERMAL MONOCULAR CAMERA
• 160×120 PIXELS RESOLUTION, HIGH SENSITIVITY DETECTOR
• BUILT-IN RECHARGEABLE LITHIUM BATTERY
• WI-FI HOT SPOT
• ZOOM MAGNIFICATION FROM 0.6X TO 2.4X
• 8GB INTERNAL MEMORY
• WATERPROOF UP TO 3.3FT DEPTH
• PHOTO AND VIDEO RECORDING FUNCTION
TECHNICAL DATA
– DETECTION RANGE (STANDARD CAR SIZE): 559M – 1833.9FT
– DETECTION RANGE (AVERAGE HUMAN SIZE): 200M – 656.1FT
– RECOGNITION RANGE (STANDARD CAR SIZE): 140M – 459.3FT
– RECOGNITION RANGE (AVERAGE HUMAN SIZE): 46M – 150.9FT
– IDENTIFICATION RANGE (STANDARD CAR SIZE): 70M – 229.6FT
– IDENTIFICATION RANGE (AVERAGE HUMAN SIZE): 23M – 75.4FT
– WEIGHT: 250G – 8.81OZ
– LENGTH: 158.3MM – 6.23″
– THERMAL MODULE
• IMAGE SENSOR: Vanadium Oxide Uncooled Focal Plane Arrays
• MAX RESOLUTION: 160×120
• RESPONSE WAVEBAND: 8 μm to 14 μm
• NETD: less than 35mk (@25°C), F#=1.0
• LENS (FOCAL LENGTH): 6.2mm
• FIELD OF VIEW: 14.7° x 18.7° (HxV)
• DIGITAL ZOOM: from 0.6x to 2.4x
• APERTURE: F1.1
• MAGNIFICATION: 0.6x to 2.4x
– IMAGE DISPLAY
• MONITOR: 0.2 inches – LCOS 720×540
• FFC (Flat Field Correction):Auto, Manual, External Correction

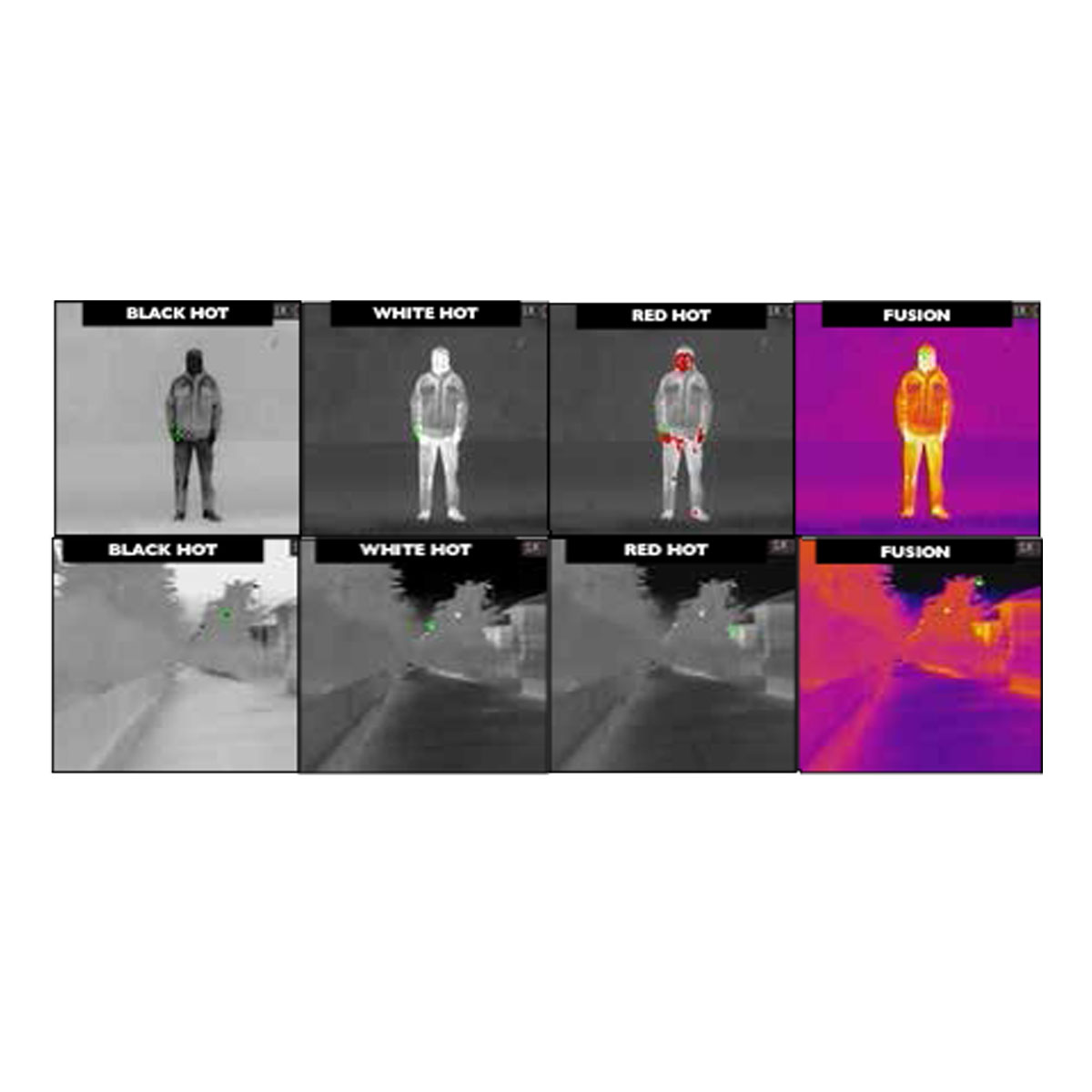

• PALETTES: Black Hot, White Hot, Red Hot, Fusion
• FRAME FREQUENCY: 50Hz
– SMART FUNCTION
• HOT TRACK: Yes
• WI-FI: Yes
• STAND-BY MODE: Yes
– SYSTEM
• STORAGE: Buit-in Memory Module (8 GB)
• ON BOARD VIDEO RECORDING: Yes
• CAPTURE SNAPSHOT: Yes
– POWER SUPPLY
• BATTERY TYPE: Built-in 18650 Lithium Battery
• BATTERY OPERATING TIME: Up to 10 hours continuously running (With Wi-Fi hot spot function off)
• BATTERY CAPACITY DISPLAY
– GENERAL
• POWER: 5 V DC/2A, 1.5W
• WORKING TEMPERATURE: -20°C to 55°C (-4°F to 131°F)
• PROTECTION LEVEL: submersible waterproof rating IP-67
• DIMENSION: 158.3x61x57 mm (6.23″x2.40″x2.24″)
• WEIGHT: 250 g (0.55lb)
