THE THERMAL SUPERIORITY
An ideal choice for professional users, it is engineered to maximize any on-field visual experience with a truly remarkable 384×288 resolution that goes way beyond the standards of the market.
It also features a very powerful 1.5x-3x zoom system and a generous 8GB internal memory that will accommodate all of your needs while taking pictures and recording videos.

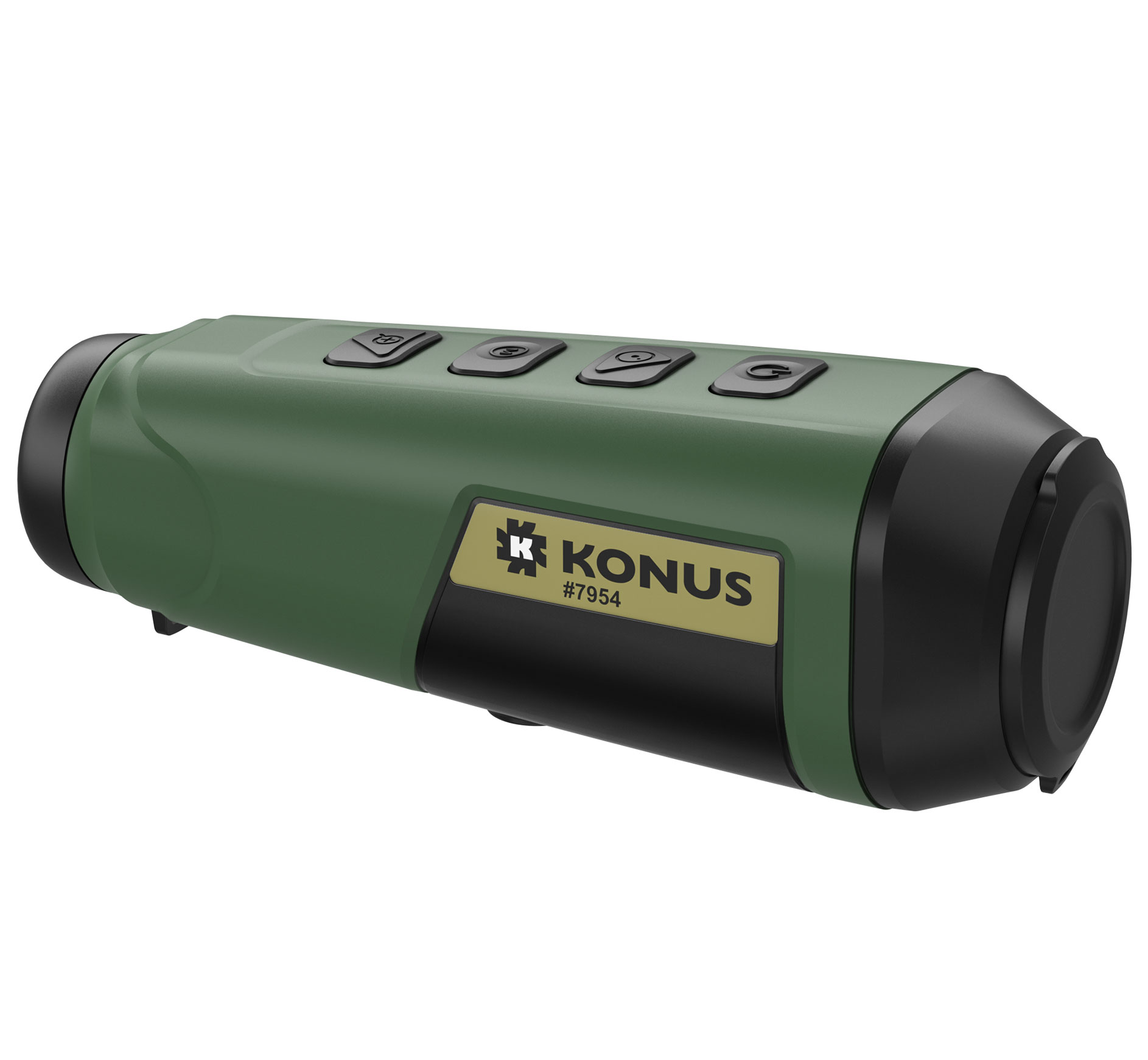

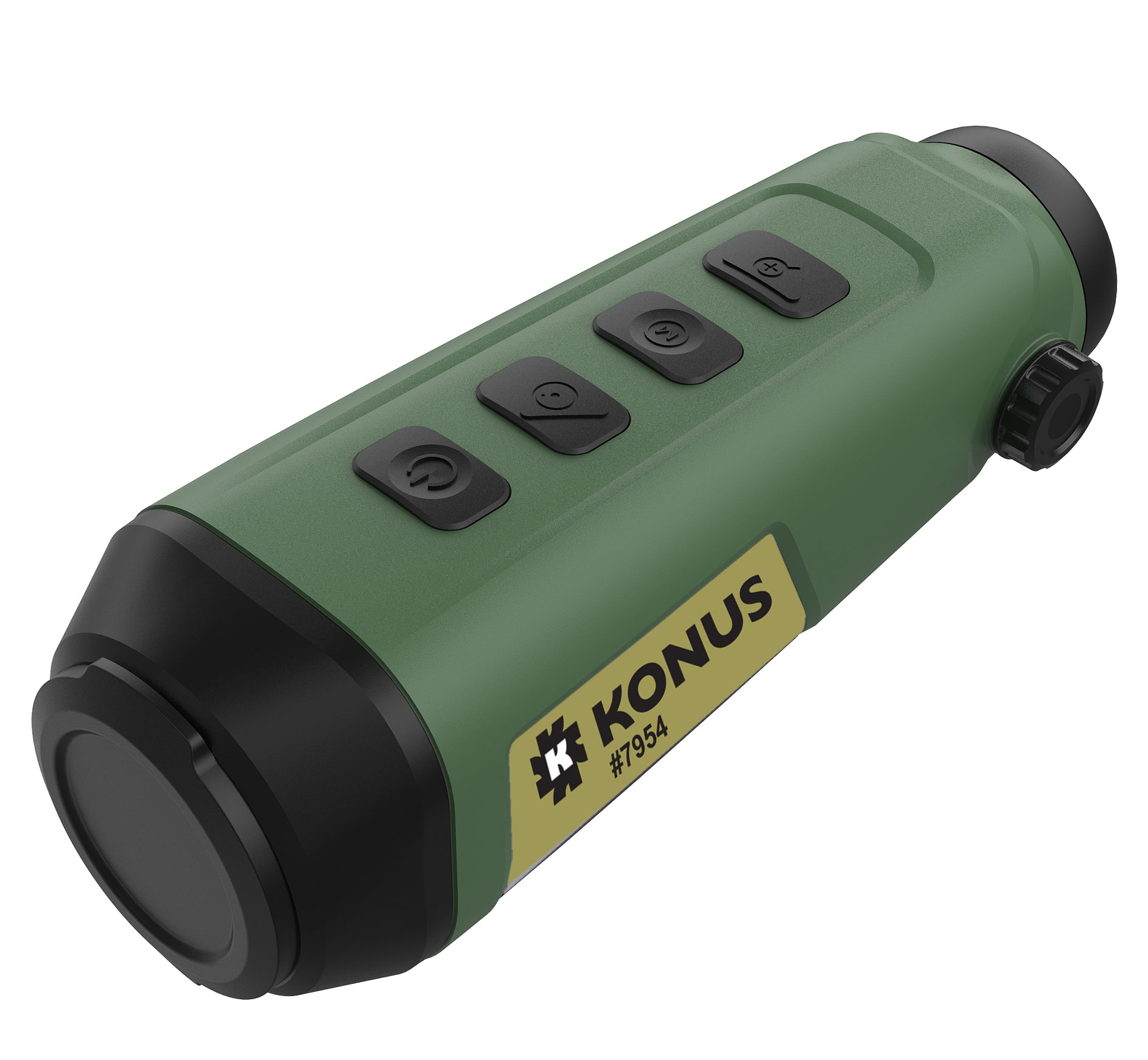

• HANDHELD THERMAL MONOCULAR CAMERA
• 384×288 PIXELS RESOLUTION, HIGH SENSIVITY DETECTOR
• BUILT-IN RECHARGEABLE LITHIUM BATTERY
• WI-FI HOT SPOT
• DIGITAL ZOOM FROM 1.5x TO 3x
• 8GB INTERNAL MEMORY
• WATERPROOF UP TO 3.3FT DEPTH
• PHOTO AND VIDEO RECORDING FUNCTION
TECHNICAL DATA
– DETECTION RANGE (STANDARD CAR SIZE): 1353M – 1479.6YDS
– DETECTION RANGE (AVERAGE HUMAN SIZE): 400M – 437.44YDS
– RECOGNITION RANGE (STANDARD CAR SiZE): 338M – 369.6YDS
– RECOGNITION RANGE (AVERAGE HUMAN SiZE):110M – 120.2YDS
– IDENTIFICATION RANGE (STANDARD CAR SIZE): 169M – 184.8YDS
– IDENTIFICATION RANGE (AVERGE HUMAN SIZE): 55M – 60.1 YDS
– WEIGHT: 250G – 8.81OZ
– LENGTH: 158.3MM – 6.23″
– THERMAL MODULE
• IMAGE SENSOR: Vanadium Oxide Uncooled Focal Plane Arrays
• MAX RESOLUTION: 384×288
• RESPONSE WAVEBAND: 8 μm to 14 μm
• NETD: less than 35mk (@25°C), F#=1.0
• LENS (FOCAL LENGTH): 15mm
• MRAD: 1.13 mradc
• FIELD OF VIEW: 24.55° x 18.9° (HxV)
• DIGITAL ZOOM: from 1.5x to 3x
• APERTURE: F1.0
• MAGNIFICATION: 1.5x to 3x
– IMAGE DISPLAY
• MONITOR: 0.39 inch – OLED – 1024×768
• FFC (Flat Field Correction): Auto, Manual, External Correction

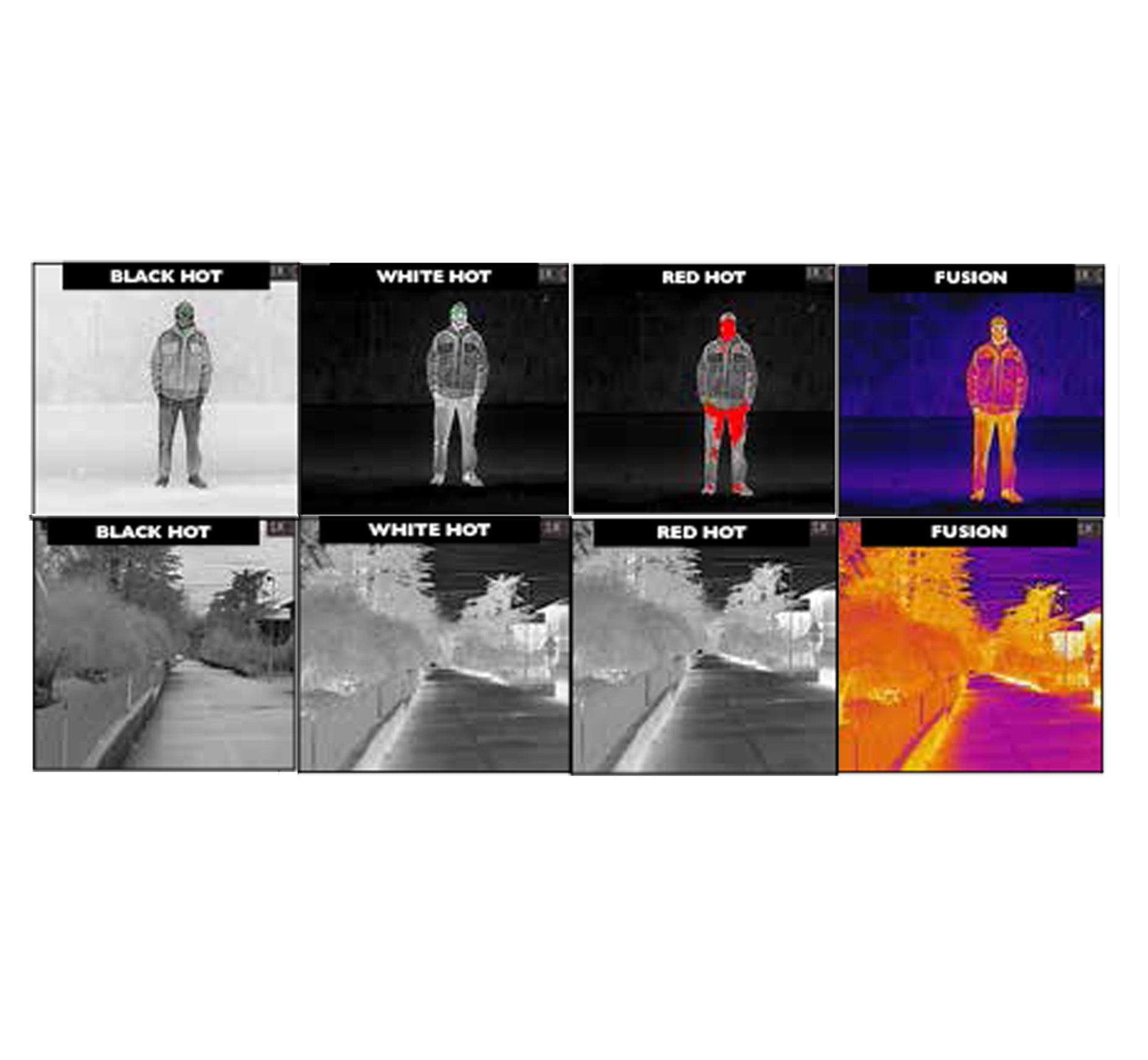

• PALETTES: Black Hot,White Hot, Red Hot, Fusion
• FRAME FREQUENCY: 50Hz
– SMART FUNCTION
• HOT TRACK: : Yes
• WI-FI : Yes
• STAND-BY MODE: Yes
– SYSTEM
• STORAGE: Buit-in Memory Module (8GB)
• ON BOARD VIDEO RECORDING: Yes
• CAPTURE SNAPSHOT: Yes
– POWER SUPPLY
• BATTERY TYPE: Built-in 18650 Lithium Battery
• BATTERY OPERATING TIME: Up to five hours continuously running (With Wi-Fi hot spot function off)
• BATTERY CAPACITY DISPLAY: Yes
– GENERAL
• POWER: 5 V DC/2A, 2W
• WORKING TEMPERATURE: -20°C to 55°C (-4°F to 131°F)
• PROTECTION LEVEL: submersible waterproof rating IP-67
• DIMENSION: 158.3x61x57 mm (6.23″x2.40″x2.24″)
• WEIGHT: 250g (0.55lb)
