THE THERMAL SUPREMACY

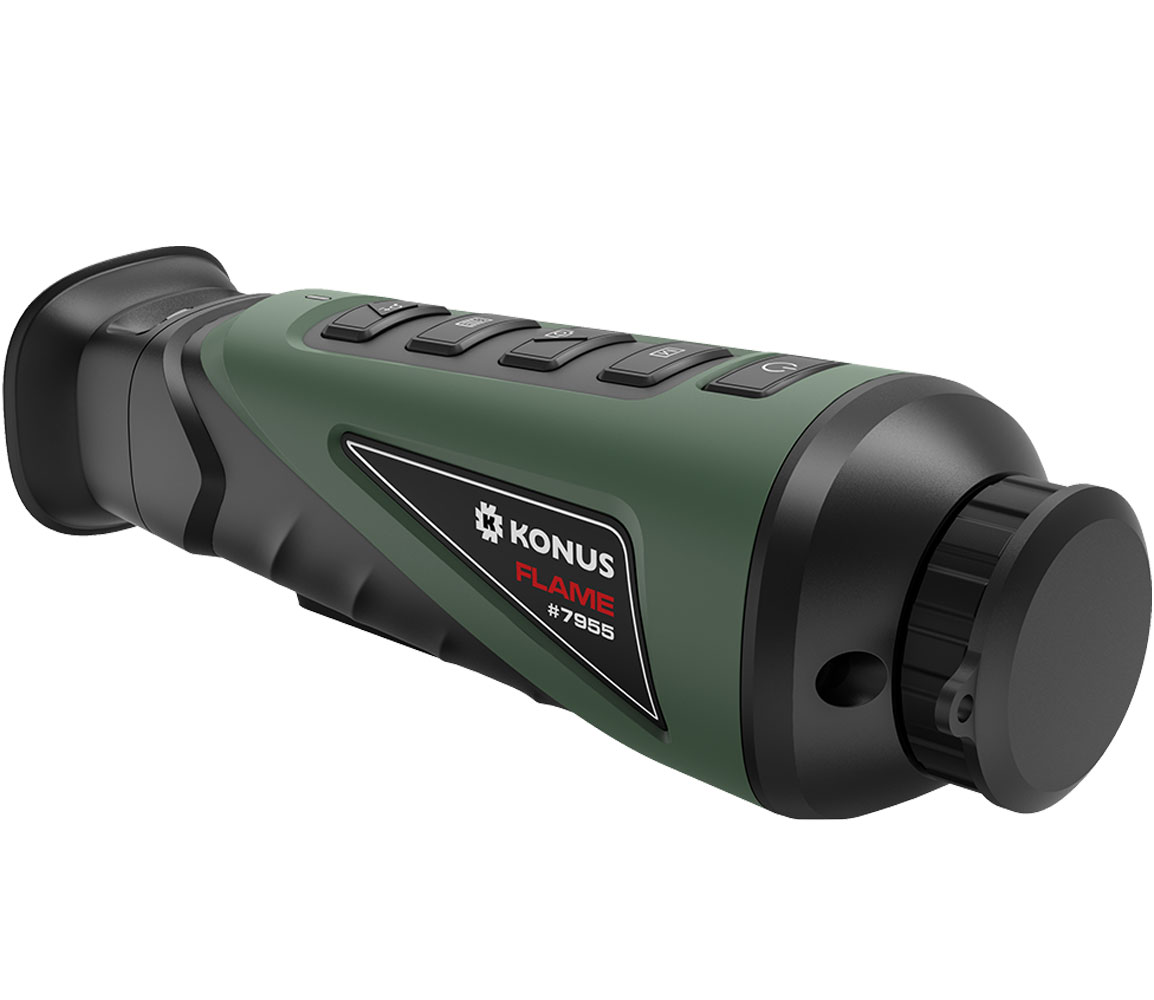

Powered by the most advanced image processing technology and by some of the finest electro
optical sensors, this model is a true quantum-leap in terms of magnification (1.4x-11.2x) and resolution (640×512). It is therefore a must for every professional user that is in need of identifying with supreme accuracy what he is searching for. It also comes with plenty of remarkable features, including a photo/video recording function and a generous16MB internal memory.
– WATERPROOF UP TO 3.3FT DEPTH
– HANDHELD THERMAL MONOCULAR
– 640X512 RESOLUTION, HIGH SENSITIVITY DETECTOR
– BUILT-IN RECHARGEABLE LITHIUM BATTERY
– WI-FI HOT SPOT
– ZOOM MAGNIFICATION FROM 1.4X TO 11.2X
– 16GB INTERNAL MEMORY
– PHOTO AND VIDEO RECORDING FUNCTION

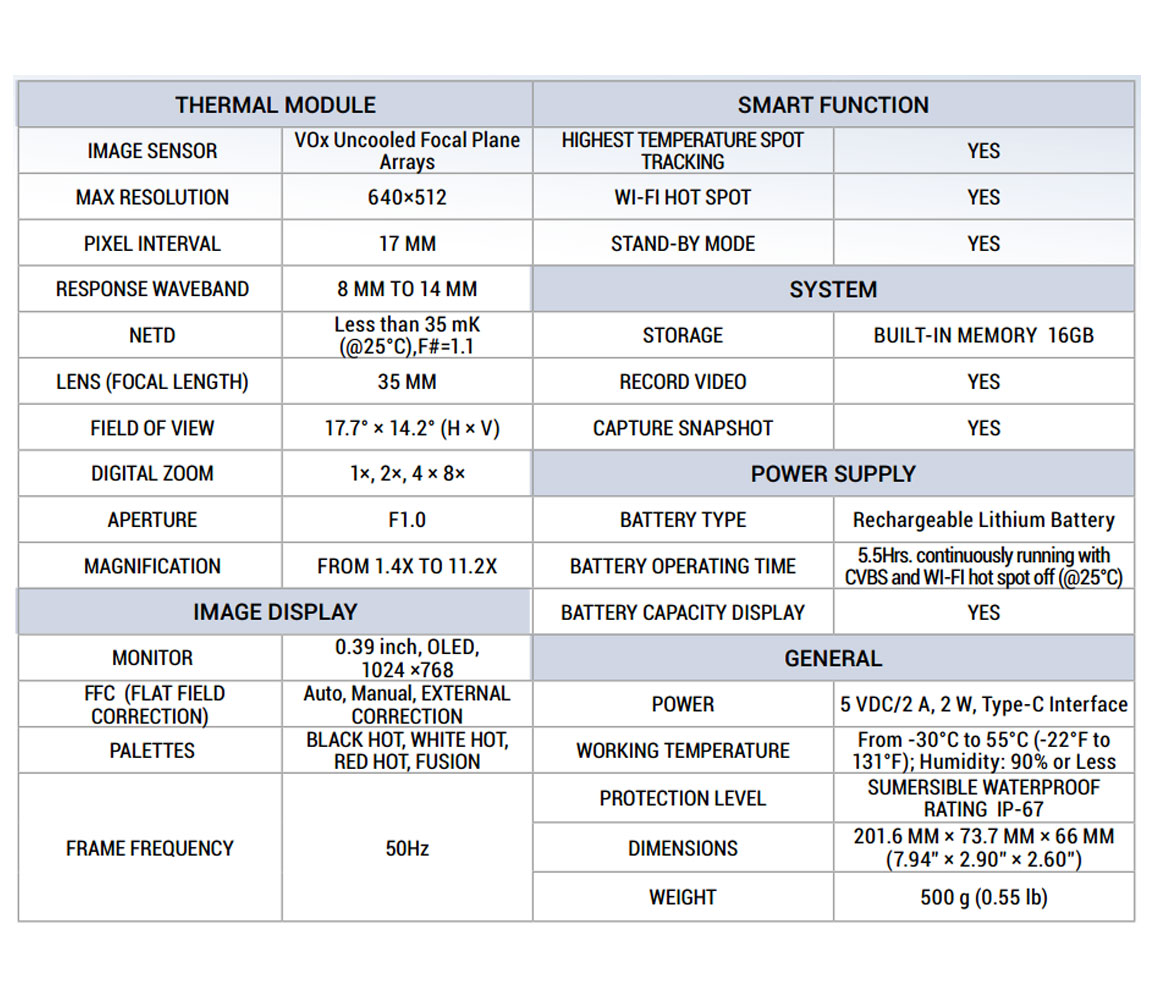

TECHNICAL DATA
– DETECTION RANGE (STANDARD CAR SIZE) 3157M: 3452.5YDS
– DETECTION RANGE (AVERAGE HUMAN SIZE) 1029M: 1125.3YDS
– RECOGNITION RANGE (STANDARD CAR SIZE) 789M: 862.8YDS
– RECOGNITION RANGE (AVERAGE HUMAN SIZE) 257M: 281,05YDS
– IDENTIFICATION RANGE (STANDARD CAR SIZE) 395M: 431.9YDS
– IDENTIFICATION RANGE (AVERAGE HUMAN SIZE) 129M: 141YDS
– WEIGHT GR/OZ: 500GR-0.55LB
– LENGTH: 201.6MM-7.94″
– THERMAL MODULE
• IMAGE SENSOR: Vanadium Oxide Uncooled Focal Plane Arrays
• MAX RESOLUTION: 640x512
• Pixel interval: 17 μm
• RESPONSE WAVEBAND: 8 μm to 14 μm
• NETD: less than 35mk (@25°C), F#=1.0
• LENS (FOCAL LENGTH): 35 mm
• FIELD OF VIEW: 17.7° x 14.2° (HxV)
• DIGITAL ZOOM: 1x, 2x, 4x, 8x
• APERTURE: F1.0
• MAGNIFICATION: 1.4x to 11.2x
– IMAGE DISPLAY
• MONITOR: 0.39 inch – OLED – 1024×768
• FFC (Flat Field Correction): Auto, Manual, External Correction

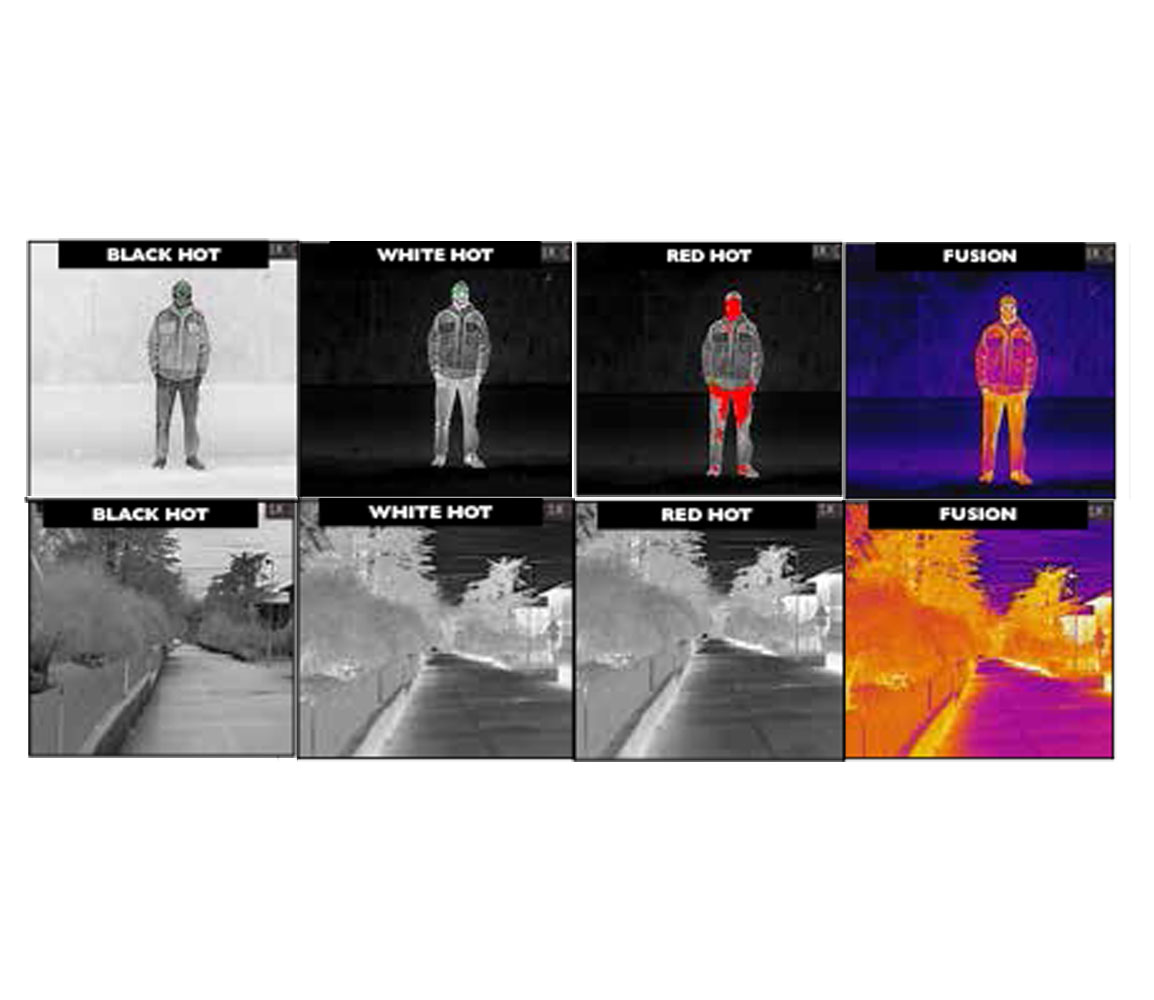

• PALETTES: Black Hot,White Hot, Red Hot, Fusion
• FRAME FREQUENCY: 50Hz
– SMART FUNCTION
• HOT TRACK: Yes
• WI-FI: Yes
• STAND-BY MODE: Yes
– SYSTEM
• STORAGE: Buit-in Memory Module (8GB)
• ON BOARD VIDEO RECORDING: Yes
• CAPTURE SNAPSHOT: Yes
– POWER SUPPLY
• BATTERY TYPE: Ricaricable Lithium Battery
• BATTERY OPERATING TIME: Up to five hours continuously running (With Wi-Fi hot spot function off)
• BATTERY CAPACITY DISPLAY: Yes
– GENERAL
• POWER: 5V DC/2A, 2W
• WORKING TEMPERATURE: -30°C to 55°C (-4°F to 131°F)
• PROTECTION LEVEL: submersible waterproof rating IP-67
• DIMENSION: 201.6x73.7x66 mm
• WEIGHT: 500 g (0.55lb)
