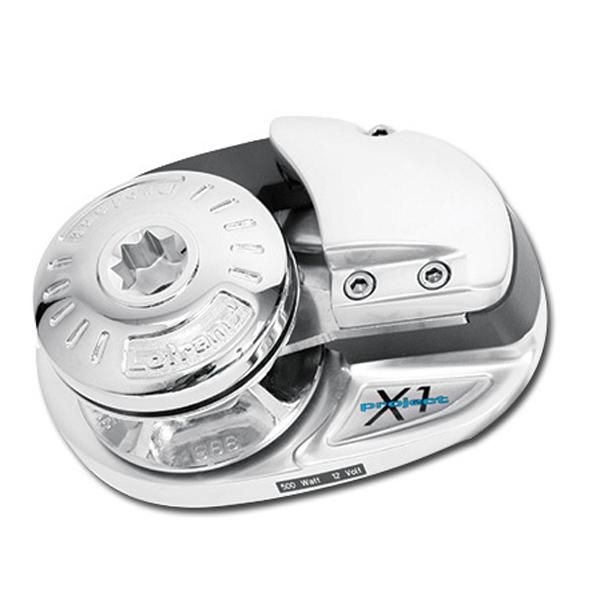

X1 - Vertical Windlass
Main Features
Luxury chrome bronze base and drum
Low profile
Indepent Gypsy and drum operation
Rope and chain combination Gypsy
Manual chain release
Rope chain management by the spring loaded arm
Chain counter magnet pre-installed as standard
IP67 rated heavy duty electric motor
Anodised marine aluminium gearbox
Box includes:
Windlass assembly filled with oil
Dual direction solenoid pack
Handle or lever
CD instruction manual

The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. Each model has different motorization characteristics. The X2 and X3 windlasses are also available in a  Plus version in mirror polished AISI 316L stainless steel which offers greater protection against corrosion.
The standard features in every X series windlass are:
Watertight stainless steel ball bearing at the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made of two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using wrenches and allows a better weight load distribution.
The electric motor and gearbox are connected in such a way as to guarantee minimum maintenance.
The sensor at the base and the magnet in the gypsy concede easier installation of the chain counter.
Manual override so that the chain or rope can be recovered manually in case of electric function failure.

Specifications:
Construction: Aluminium
Gipsy for chain: 6 mm, ISO 4565 DIN 766
Gipsy for rope: 10-12 mm, 3-strand
Line speed  at W.L. 23 m/min
Max line speed: 26 m/min
Maximum pull: 630kg
Motor size: 500W
Net weight: 10kg
Power supply: 12V
Type: Low profile
Working load: 75A (70kg)

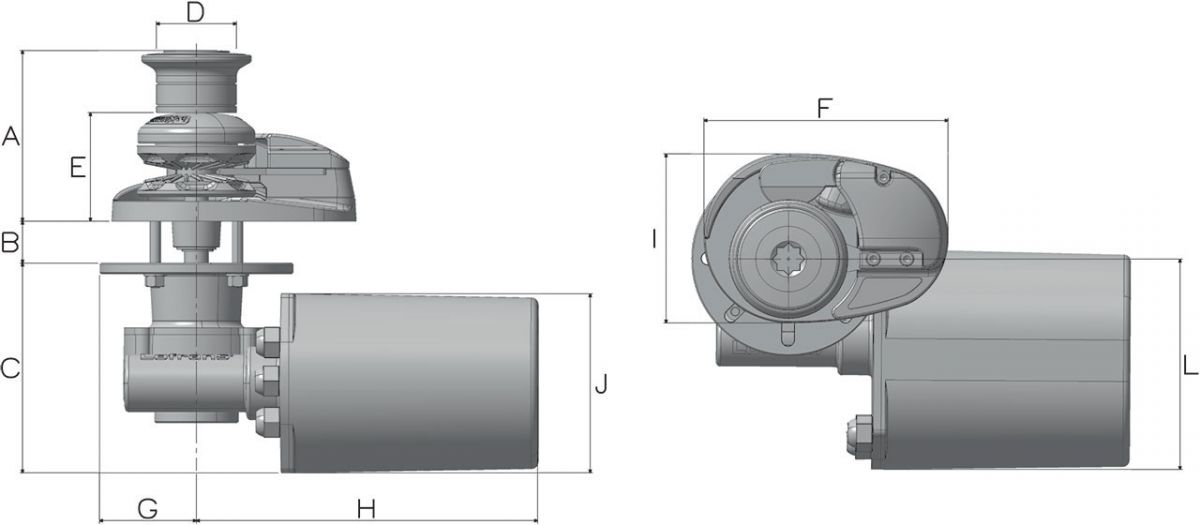

Size:
A= 130
B= 10-30
C= 111
D= Ø60
E= 84
F= 183
G= 56
H= 236
I= 127
J= 105
L= 132
