Description
The product will be shipped in 10 business days.

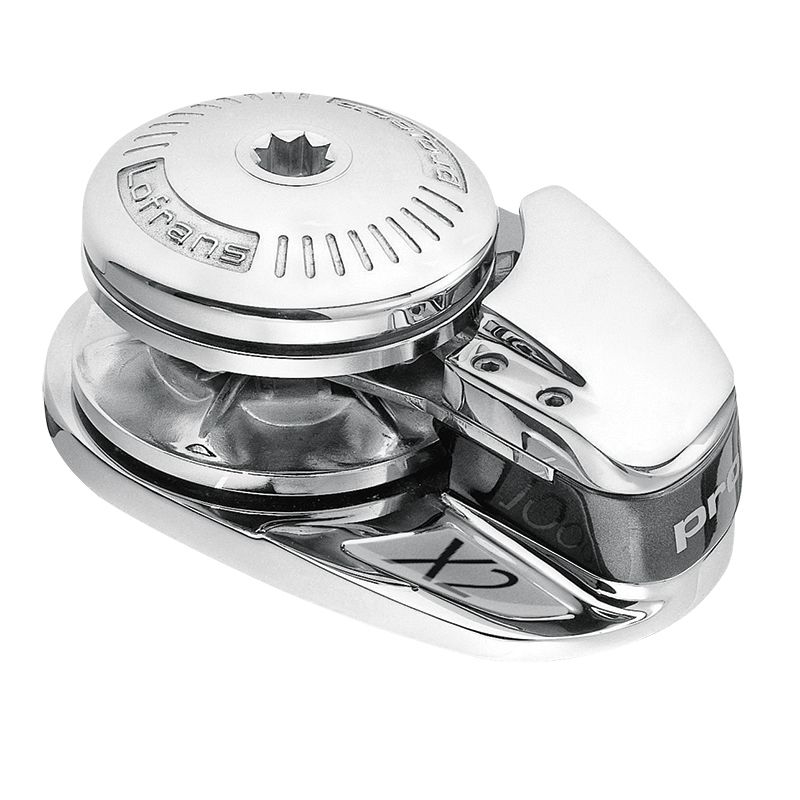

X2 - Vertical Windlass
Main Features
- Luxury chrome broze base and drum
- Special watertight stainless steel ball bearing base
- Low profile
- Indepent Gypsy and drum operation
- Rope and chain combinaton Gypsy
- Manual chain release
- Manual override available for chromed bronze models only
- Rope tensioning device
- Chain counter magnet pre-installed as standard feature
- IP67 rated heavy duty electric motor
- Anodised marine aluminium gearbox
- Control Box included in package
Box includes:
Windlass assembly filled with oil
Dual direction solenoid pack
Handle or lever
CD instruction manual
The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. Each model has different motorization characteristics.
The standard features that you can meet in every X series windlass are:
- Watertight stainless steel ball bearing at the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
- The clutch is made of two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using wrenches and allows a better weight load distribution.
- The electric motor and gearbox are connected in such a way as to guarantee minimum maintenance.
- The sensor at the base and the magnet in the gypsy concede easier installation of the chain counter.
- Manual override so that the chain or rope can be recovered manually in case of electric function failure.
Specifications:
Construction: Aluminium
Gipsy for chain: 6 mm, ISO 4565 DIN 766
Line speed at W.L. 26 m/min
Max line speed: 35 m/min
Maximum pull force: 750kg
Motor size: 700W
Net weight: 18kg
Power supply: 12V
Type: Low profile
Working load: 90A (80kg)

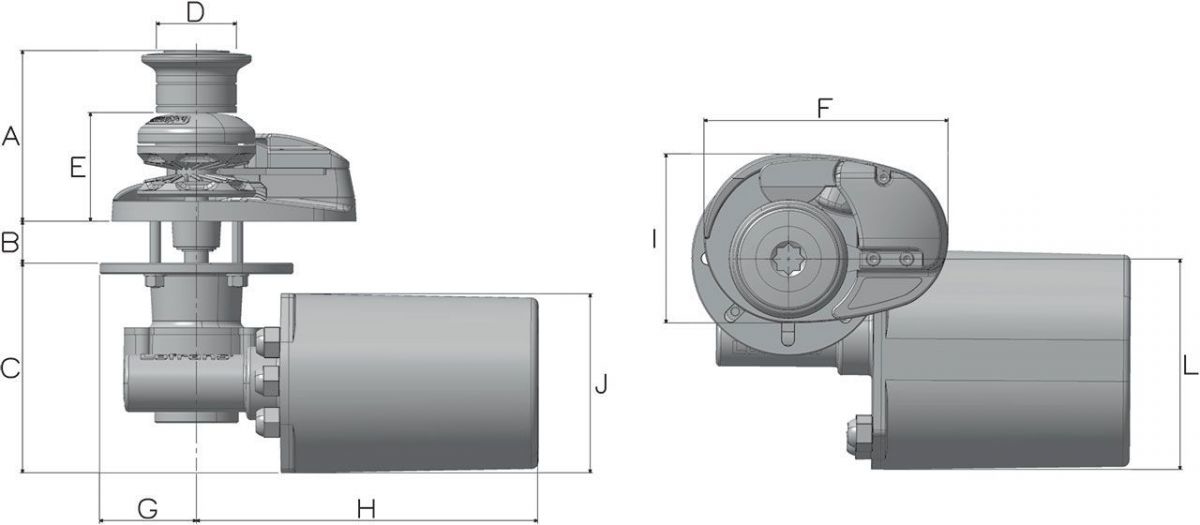

Size:
A= 153
B= 25-40
C= 155
D= Ø76
E= 95
F= 232
G= 73
H= 260
I= 162
J= 134
L= 165
