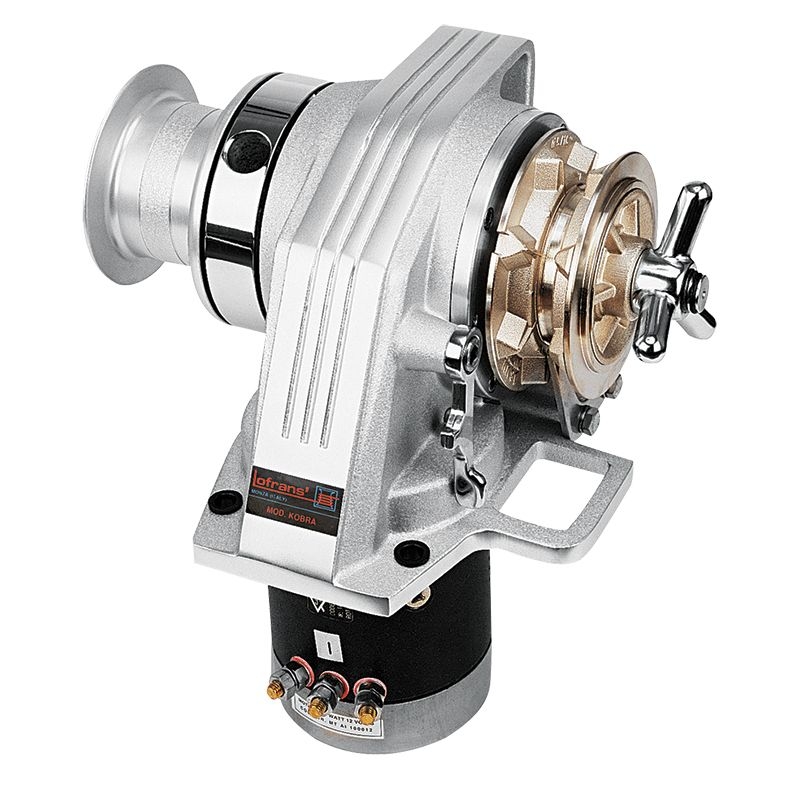

KOBRA - Horizontal Windlass

Main Features
- Marine aluminium anodised body
- Indepent Gypsy and drum operation
- Manual chain release
- Manual override
- Heavy duty rated IP66 electric motor
- Optional automatic free fall available
- Control Box included in package

Box includes:
Windlass assembly filled with oil
Dual direction solenoid pack
Handle or lever
CD instruction manual

Specifications:
Gipsy for chain: 6 mm, ISO 4565
Line speed at W.L. 16 m/min
Max line speed: 32 m/min
Maximum pull force: 1250 kg
Model type: with drum
Motor size: 1000W
Net weight: 21kg
Power supply: 12V
Working load: 150A (170kg)

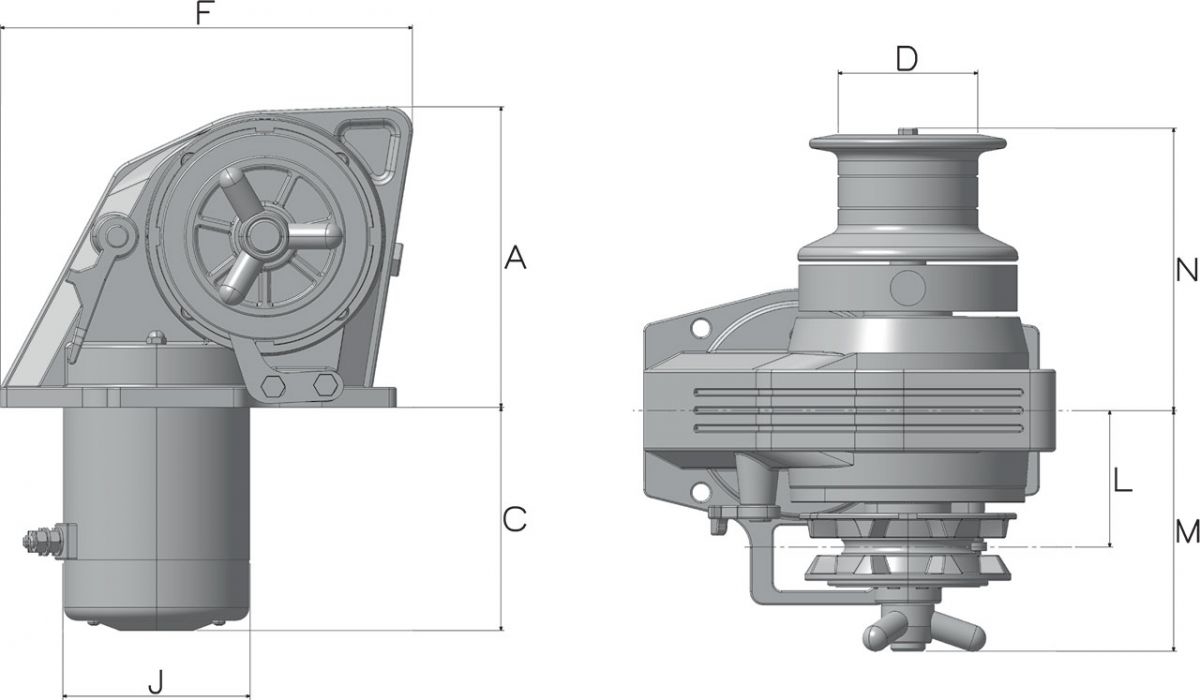

Size:
A= 184
C= 136
F= 250
D= Ø85
J= Ø114
L= 83
M= 147
N= 172
