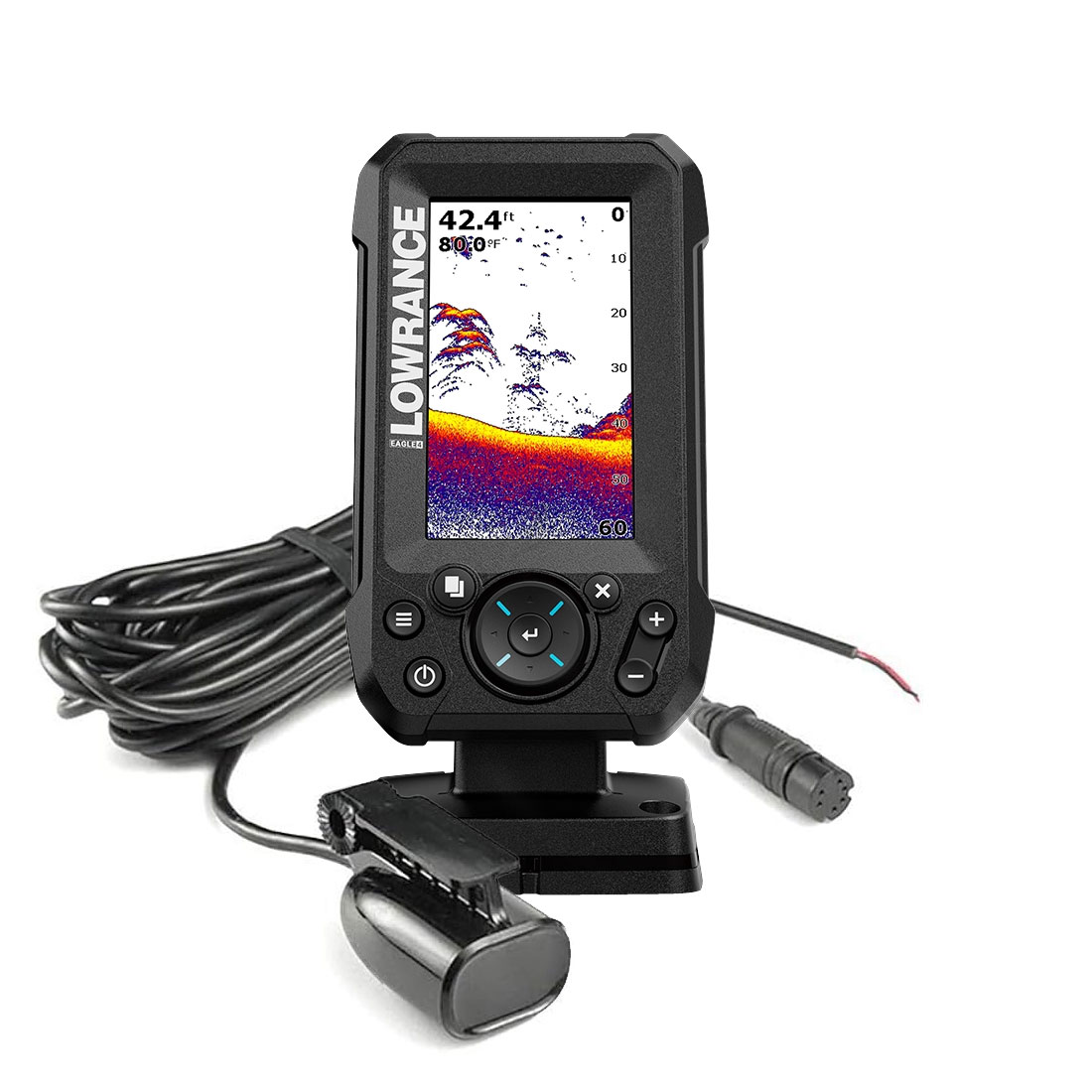

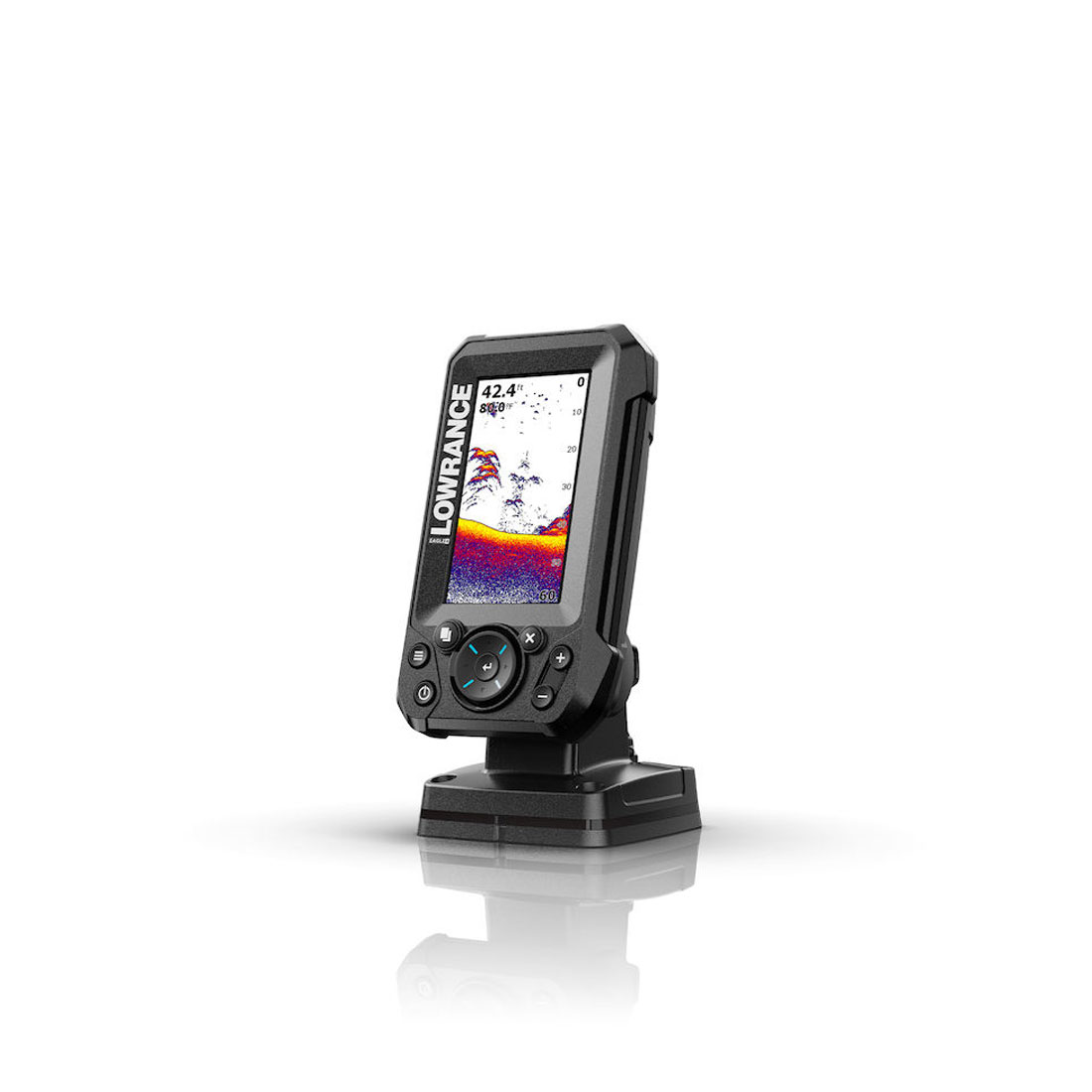

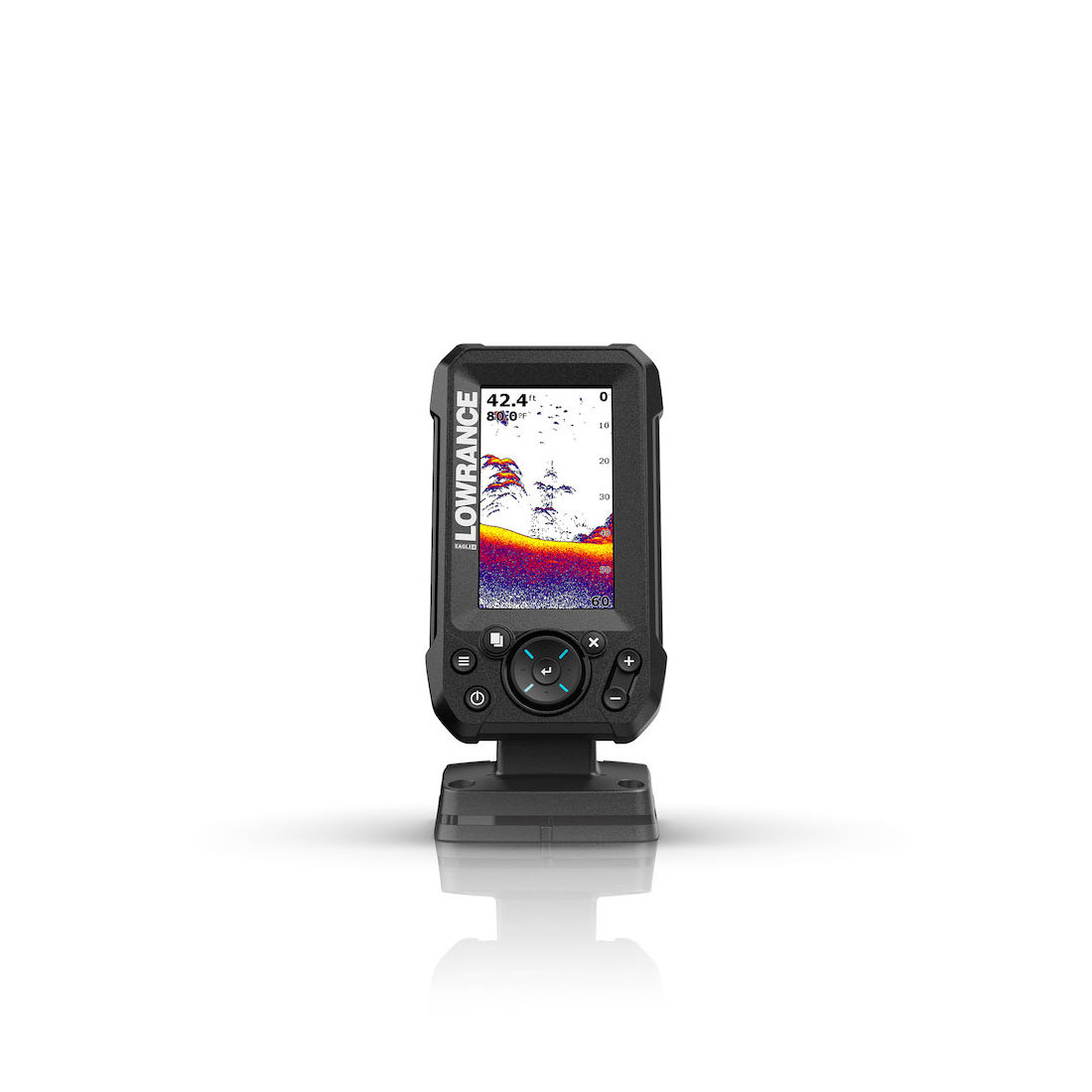

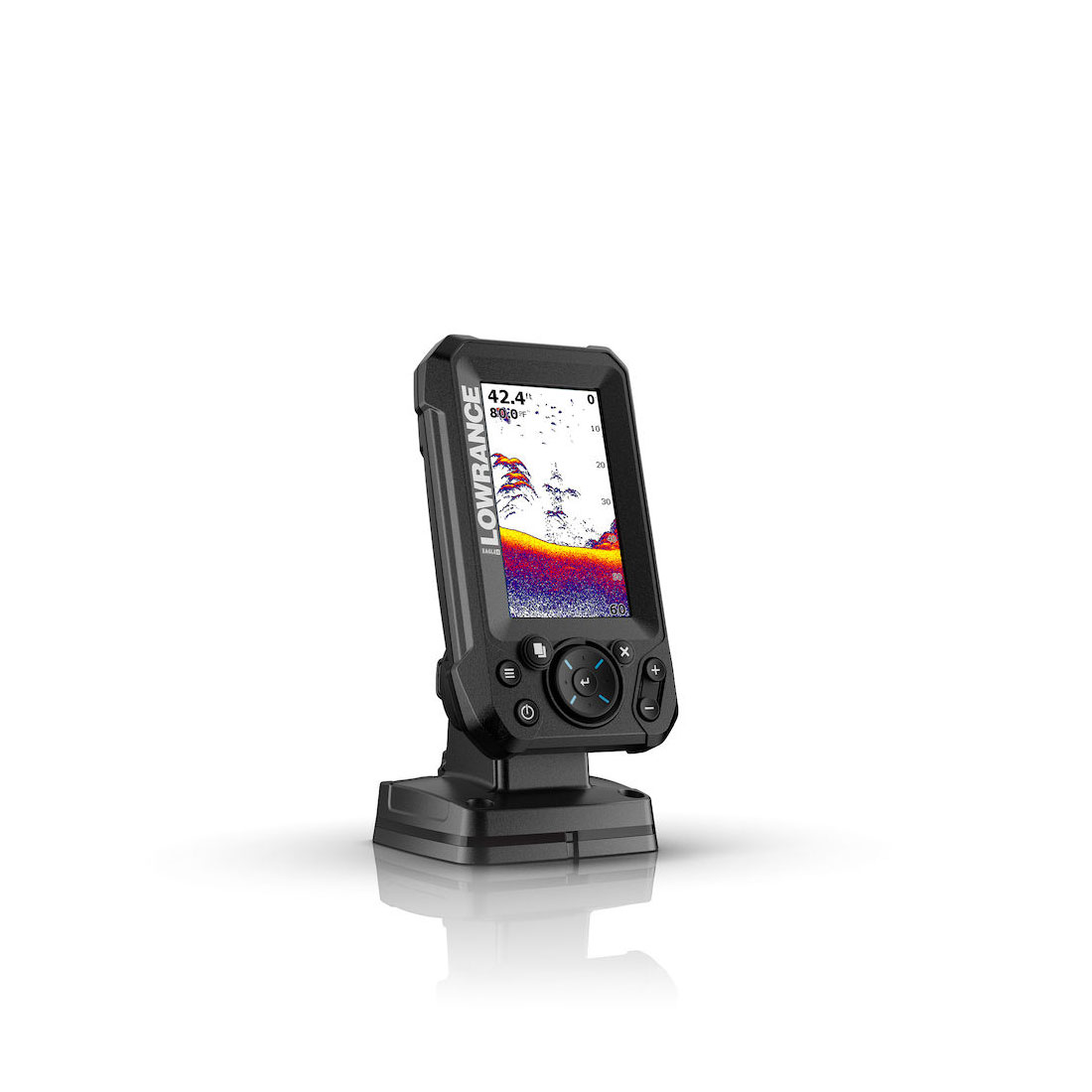

The Eagle-4x provides a quick and easy solution for simple fishfinding. This portrait orientated display is ideal for kayaks and small fishing boats with limited space. With its wide-angle sonar, the Bullet Transducer provides more coverage of the water column with a continuous right to left scroll across the screen, making it easy to interpret and spot fish.
Bullet Skimmer
Cover more water in less time with wide-angle sonar, delivering double the coverage of most standalone fishfinders.
Autotuningsonar
Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.
IPS SCREENS
See clearly wherever you go with a new IPS screen, offering improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.
NEW CONNECTOR SYSTEM
Set up in an instant with our improved twist-locking connector, promising an easy and reliable installation and removal every time.
ONE-YEAR WARRANTY
Our priority is to give you superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind thanks to our one-year warranty guarantee.
• IPS screen, viewable from all angles, even in polarized glasses
• New reliable twist-lock connector system for easy installation in any boat or kayak
• Portrait orientation
• True scroll sonar
TECHNICAL DATA:
DISPLAY
Backlight Color: Pure white LED
Resolution: 272 x 480
Screen Brightness: 1000 NITS
Size and Type: 4" IPS Display
Viewing Angles: 85° top/bottom, 85° left/right
ELECTRICAL
Recommended Fuse Rating: 5A
Supply Voltage: 12v DC (10.8-17VDC)
Humidity: 66°C, 95% relative humidity (RH) for 48 hours
ENVIRONMENT
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
Waterproof rating: IPX7 with card door closed
MFD
External Storage: none
Waypoints, Routes, Tracks: none
Compass Safe Distance - Metric, imperial: 12" (300mm)
PHYSICAL
Dimensions (W x H x D): 3.84″ x 7.3″ x 4″
Mounting Type: bracket mount
Weight: 0.2 kg
COMES WITH:
- 000-14172-001 HOOK² 5/7/9/12 POWER CABLE
